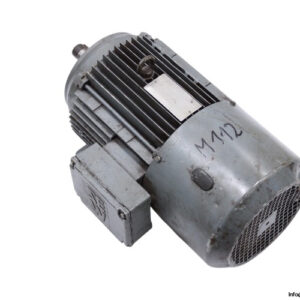

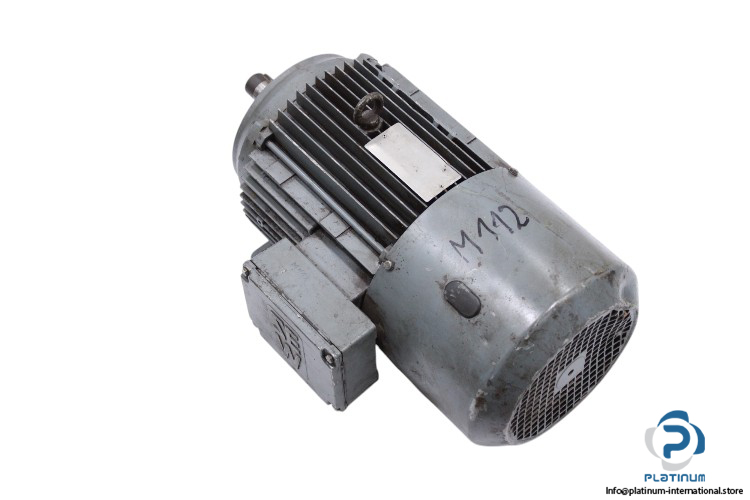

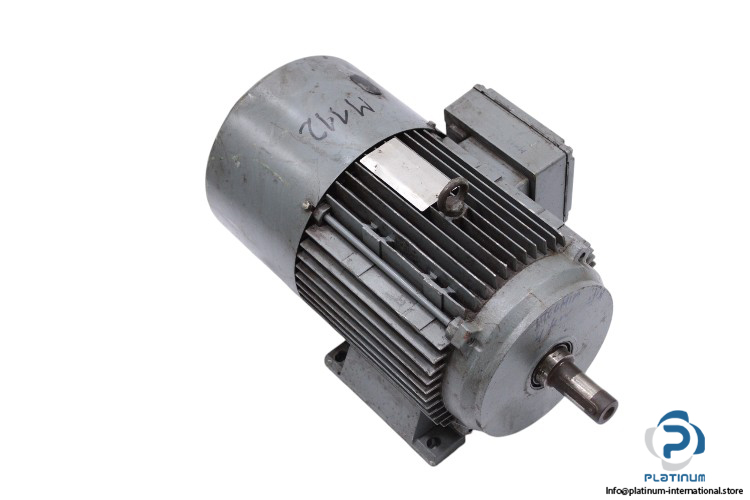

SEW DV112M4/BMG/TH Brake Motor
The SEW DV112M4/BMG/TH Brake Motor is a powerful and reliable motor designed for industrial applications requiring high efficiency and controlled braking. With a motor speed of 1420 r/min and an output power of 4 kW, this motor ensures smooth operation and precise performance in demanding environments. Engineered with a robust enclosure and thermal protection, it provides long-lasting durability.
- Manufacturer: SEW
- Type: Brake Motor
- Model: DV112M4/BMG/TH
- Part No.: 01.1133568202.0001.06
Technical Specifications
- Output Shaft End: 28×60 mm lg.
- Motor Speed: 1420 r/min
- Motor Power: 4 kW
- Motor Frequency: 50 Hz
- Cyclic Duration Factor S1-S10: S1
- Motor Voltage / Connection Type: 230/400 V delta/star
- Nominal Current: 15.20 / 8.70 A
- cos phi: 0.84
- Mounting Position: B3
- Thermal Class / Enclosure (IP): F / 54
- Brake Voltage / Torque: 230V AC / 45 Nm
