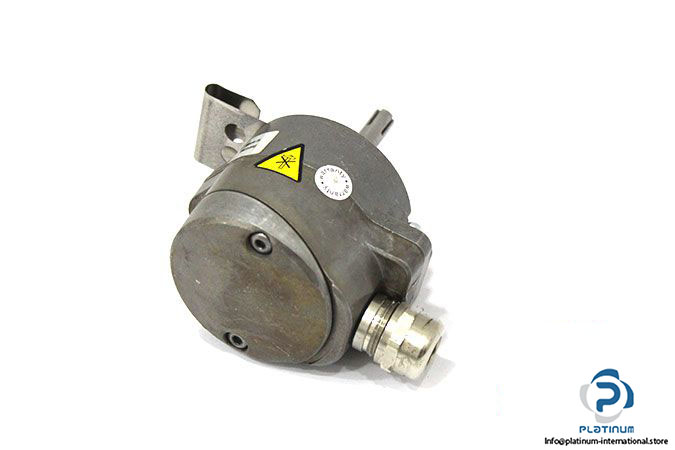

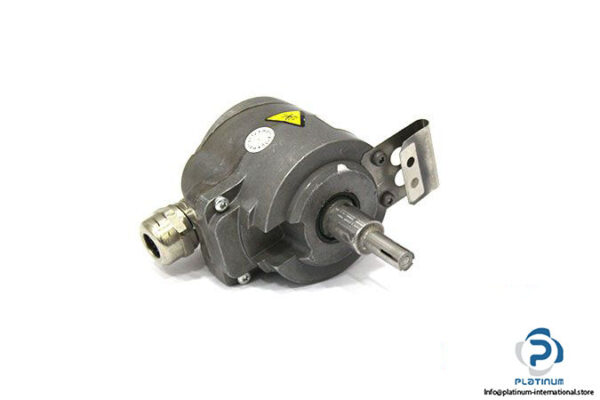

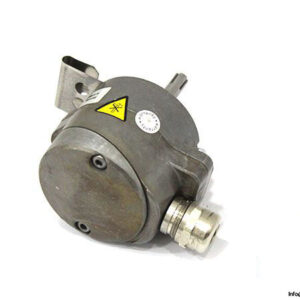

SEW EURODRIVE ES1C INCREMENTAL ROTARY ENCODER
The ES1C incremental rotary encoder from SEW Eurodrive is an explosion-proof, high-resolution encoder engineered for precision motion feedback in demanding industrial applications. Built with durable housing and IP66 protection, it ensures long-lasting performance in harsh environments.
Manufacturer: SEW Eurodrive
Type: Incremental Rotary Encoder
Model: ES1C

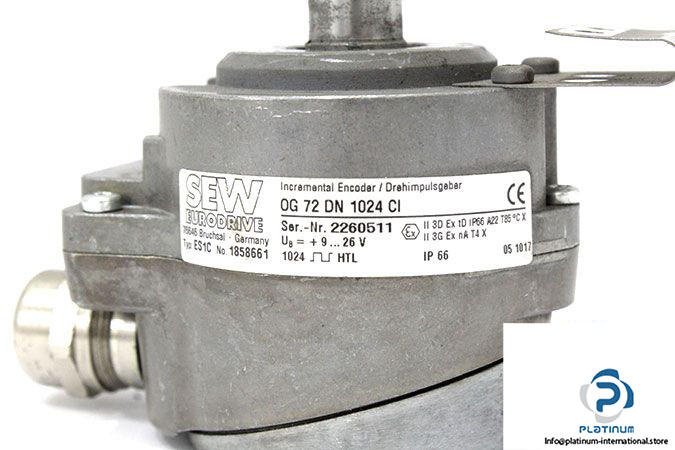

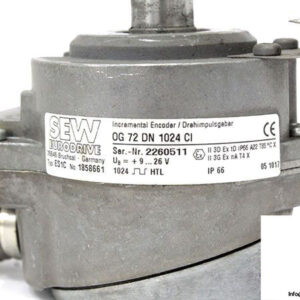

Order Code: OG 72 DN 1024 CI
Part No.: 1858661
Serial No.: 2260511
Technical Information
- Uses: DT71 “ DV225, CT71 “ CV200
- Supply Voltage: 9 “ 26 V DC
- Current Consumption: 340 mARMS
- Pulse Frequency: max. 120 kHz
- Resolution: 1024
- Signal Output: HTL
- Vibration Resistance: max. 100 m/s²
- Connection: Terminal box on incremental encoder
- Explosion Proof: Yes (Ex Rated)
- Mounting Type: Add-on encoder with spread shaft
- Protection: IP66
