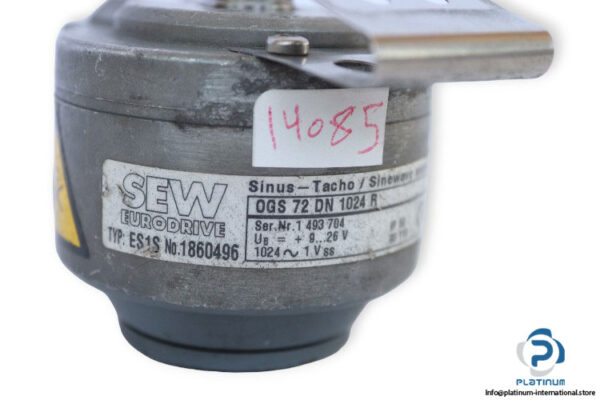

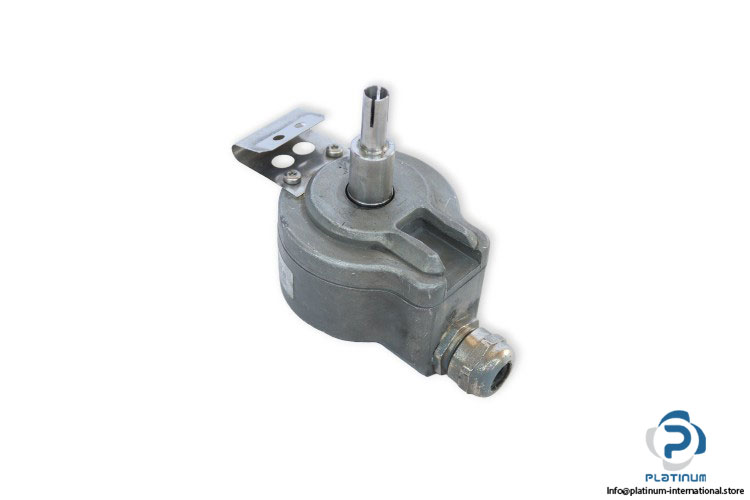

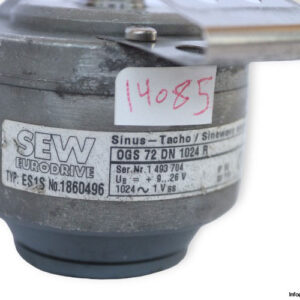

SEW “ EURODRIVE ES1S INCREMENTAL ENCODER
The SEW “ Eurodrive ES1S is a high-resolution incremental encoder engineered for precision feedback and reliable performance in industrial environments. With its 1024 PPR resolution and rugged IP66 protection, it™s ideal for demanding motion control applications.
Manufacturer: SEW “ Eurodrive
Type: Incremental Encoder
Model: ES1S
Order Code: OGS 72 DN 1024 R
Part No.: 1860496
Serial No.: 1 493 704
Installed to: DT71-DV225, CT71-200CV
Technical Information
- Shaft Design: Spread shaft
- Voltage Supply: 9 / 26 VDC
- Resolution: 1024 Pulse per revolution (PPR)
- Max. Current Consumption: 160 mA
- Signal Output: sin/cos 1Vss
- Max Speed: 10000 rpm
- Max. Pulse Frequency: 120 kHz
- Output Connection: Terminal box
- Protection Class: IP 66
- Ambient Temperature: -30 / 60 °C
