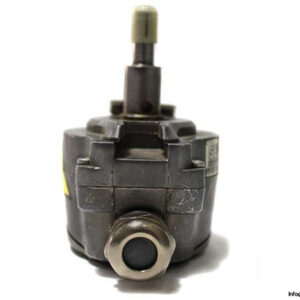

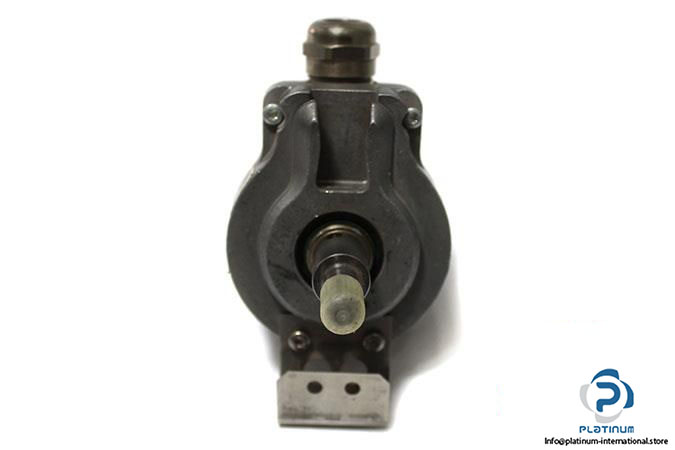

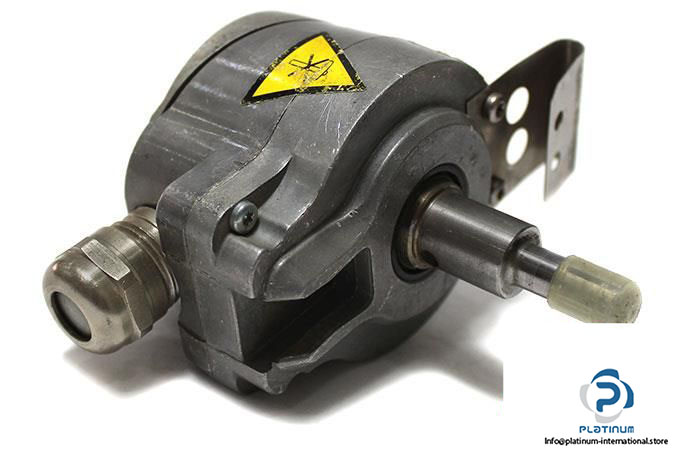

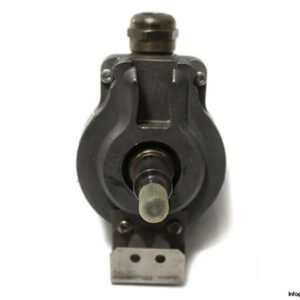

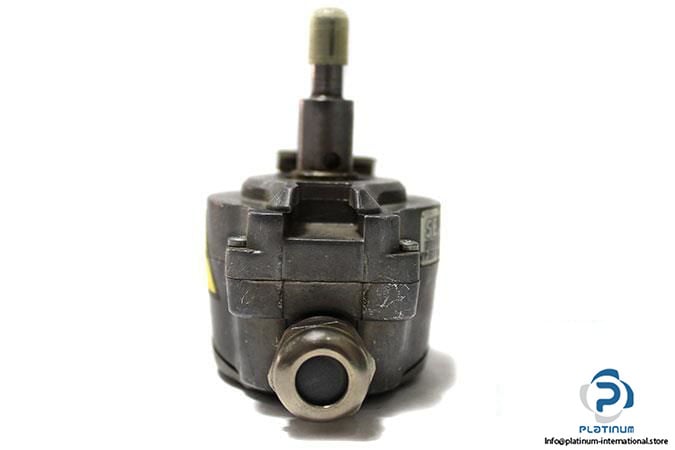

SEW ES1T INCREMENTAL ENCODER
The SEW ES1T is a high-precision incremental encoder engineered for reliable feedback in industrial automation systems. Featuring TTL (RS 422) signal output and 1024 PPR resolution, it ensures accurate motion control. Its compact, robust design includes a spread shaft and IP56 protection, suitable for demanding applications.
Manufacturer: SEW
Type: Incremental Encoder
Model: ES1T

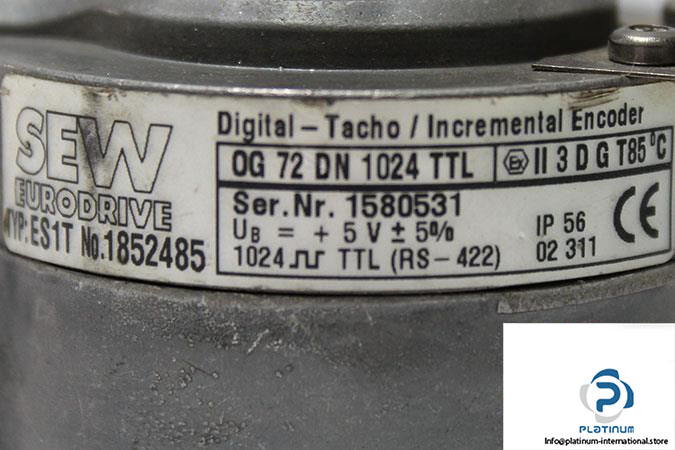

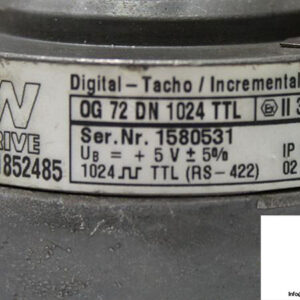

Order Code: OG 72 DN 1024 TTL
No.: 1852485
SN: 1580531
REF NO: 02 311
Installed to: DT71-DV100, CT71-200CV
Technical Information
- Shaft Design: Spread shaft
- Voltage Supply: 5 VDC
- Resolution: 1024 Pulse per revolution (PPR)
- Signal Output: TTL (RS 422)
- Max. Pulse Frequency: 120 kHz
- Protection Class: IP 56
