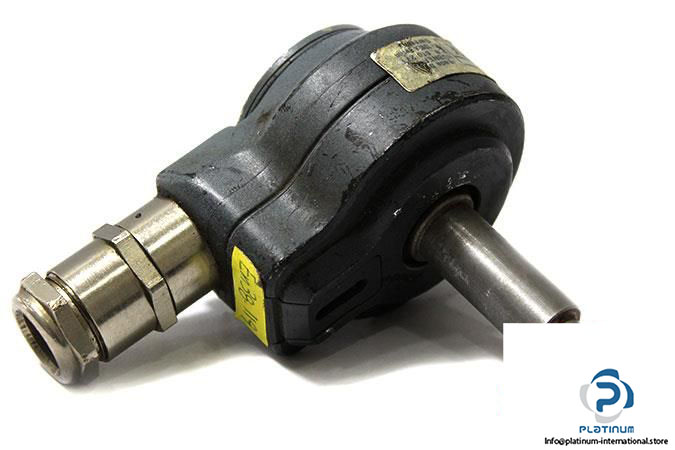

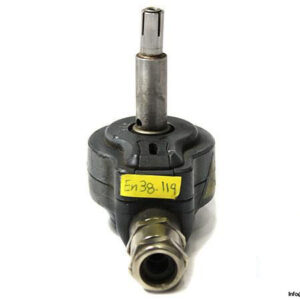

SEW OG 72 DN 1024 TTL INCREMENTAL ENCODER
The SEW OG 72 DN 1024 TTL is a high-precision incremental encoder built for demanding industrial applications. Designed with a spread shaft configuration, this unit offers reliable performance and accurate feedback for motion control systems. It is engineered to withstand challenging environments with a high protection class and robust electrical output.
Manufacturer: SEW
Type: Incremental Encoder

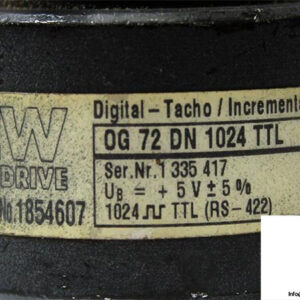

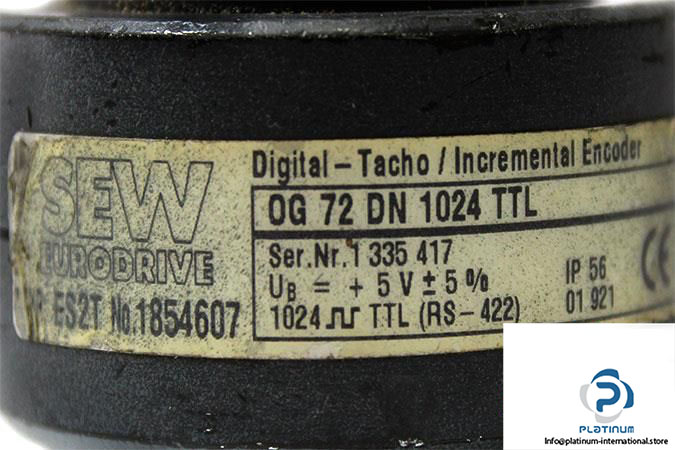

Model: OG 72 DN 1024 TTL
SN: 1335417
Designation: ES2T
No.: 1854607
REF NO: 01 921
Installed to: DT71-DV225, CT71-200CV
Technical Information

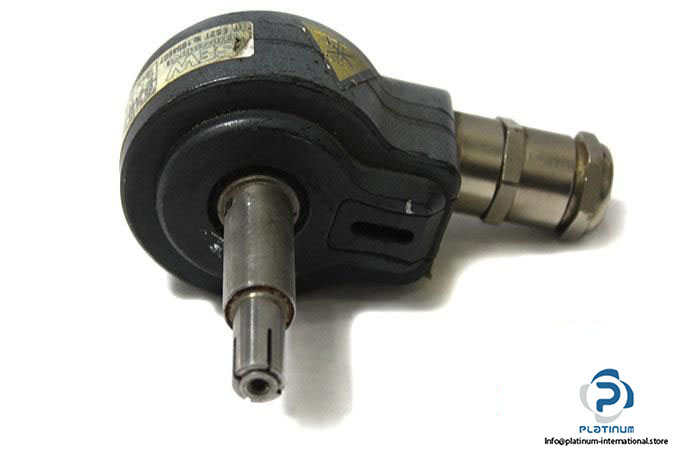

- Shaft Design: Spread Shaft
- Voltage Supply: 5 VDC
- Resolution: 1024 Pulse per Revolution (PPR)
- Max. Current Consumption: 180 mA
- Signal Output: TTL (RS 422)
- Max Speed: 10000 rpm
- Max. Pulse Frequency: 120 kHz
- Output Connection: Terminal Box
- Protection Class: IP 56
