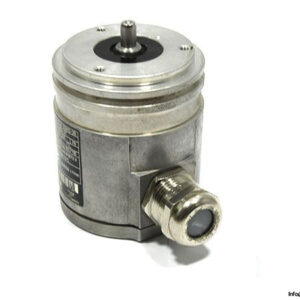

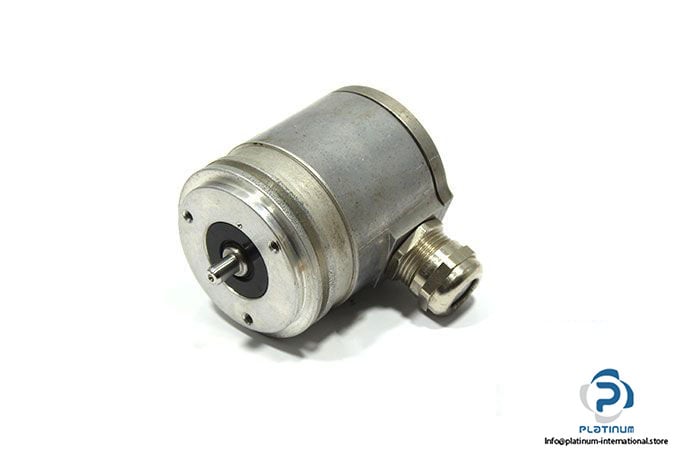

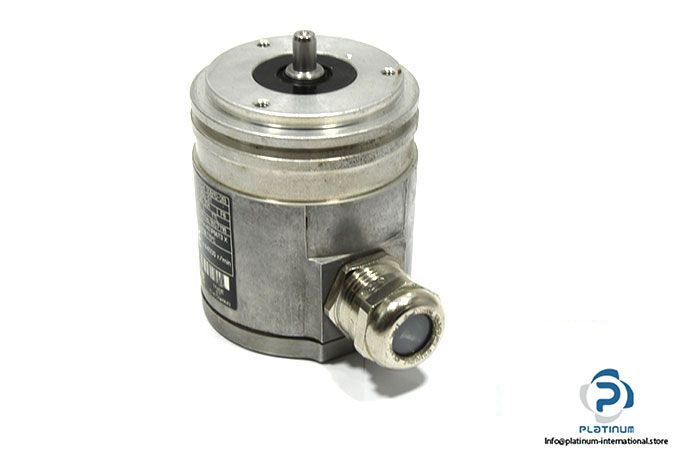

SEW“EURODRIVE EV1R INCREMENTAL ROTARY ENCODER

The SEW“Eurodrive EV1R is a high-precision incremental rotary encoder engineered for use in industrial automation and motor feedback systems. With a durable construction and high protection rating, it delivers reliable signal output even in challenging environments.

Manufacturer: SEW“Eurodrive
Type: Incremental Rotary Encoder
Model: EV1R

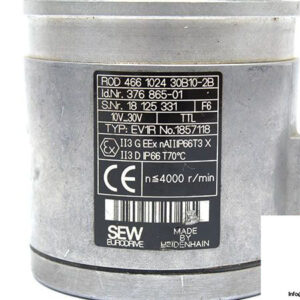

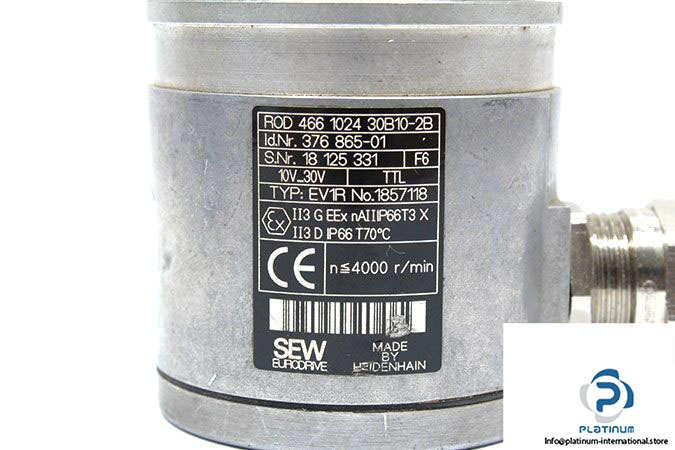

Part No.: 185 711 8
Order Code: ROD 466 1024 30B10-2B
ID-Nr: 376 865-01
Serial No.: 18 125 331
Compatible Motors: DT71 “ DV225, CT71 “ 200CV

Technical Information

• Shaft: Solid Shaft
• Shaft Diameter: 6 mm
• Supply Voltage: 10 V DC / 30 V DC
• Periods per Revolution: 1024 ppr
• Signal Output: TTL
• Explosion Proof: EX II3 D IP66 T70°C
• Speed: 4000 rpm
• Protection: IP66
