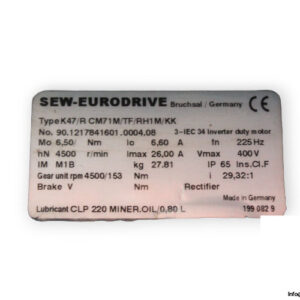

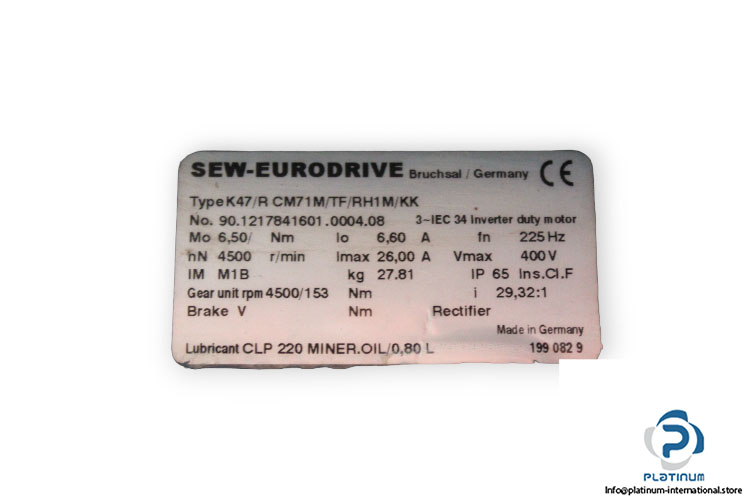

Manufacturer: SEW

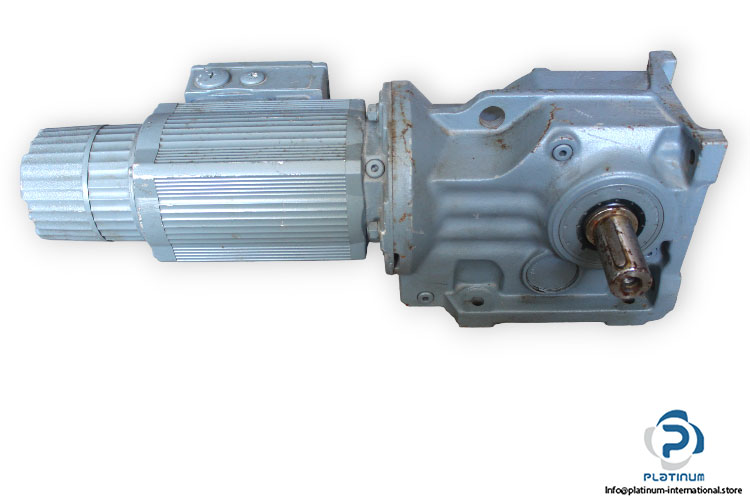

Type: Bevel Helical Gear Unit Synchronous Servomotor

Model: K47/RCM71M/TF/RH1M/KK

Part Nr.: 90.1217841601.0004.08

Speed [r/min]: 4500/153

Total Ratio [i]: 29,32

Mounting Position: M1B

Output Shaft End [mm]: 30×60

Backlash PHI Max [‘]: 8 angular minutes

Lubricant: CLP 220 Miner.Oil

Volume [l]: 0,80

Output Shaft End [mm]: 30×60

Rated Speed [rpm]: 4500

Standstill Torque M0 [Nm]: 6,50

Standstill Current [A]: 6,60

Max. Current [A]: 26,00

Cyclic Duration Factor: S1

Motor Voltage [V]: 400

Max. Permitted Frequency [Hz]: 225

Thermal Class/Enclosure [IP]: F/65
