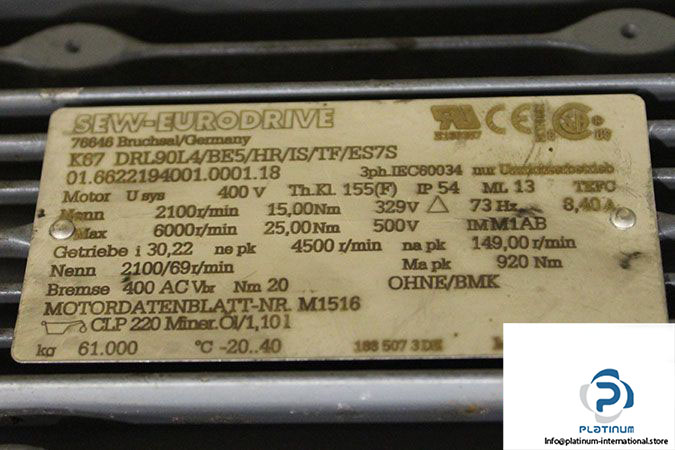

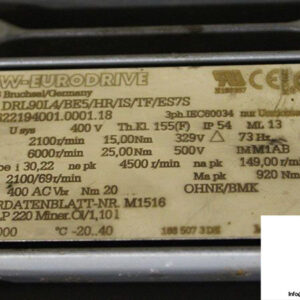

Manufacturer: SEW-EURODRIVE

Type: Helical-Bevel Gearmotor

Model: K67 DRL90L4/BE5/HR/IS/TF/ES7S



Max. Voltage: 500 V AC

Nominal Voltage: 400 V AC

Rated Voltage: 329 V AC

Rated Current At 73 Hz: 8.40 A

Max. Speed: 6000 min^-1

Rated. Speed: 2100 min^-1

Minimum Output Speed: 149 min^-1

Motor/Gear Unit Speed: 2100/69 min^-1

Rated Frequency: 73 Hz

Nominal Torque: 15 Nm

Max. Torque: 25 Nm

Minimum Output Torque: 920 Nm

Ratio: 30.22

Voltage Brake: 400 V AC

Torque Brake: 20 Nm

Temperature: -20…40 °C

Thermal Class: F

Protection Class: IP54

Weight: 60 kg
