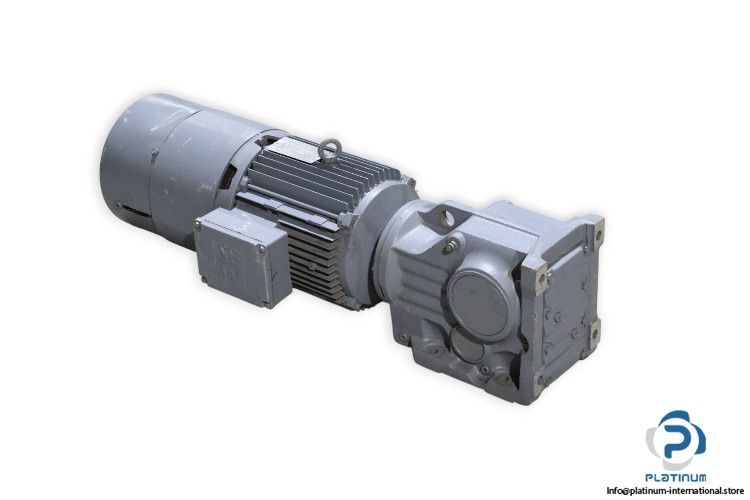

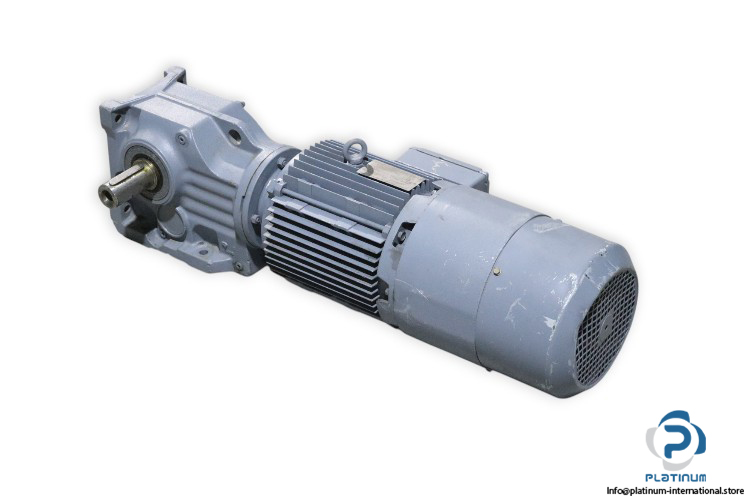

SEW K67 DV112M4/BMG/TF/XV2 Gearmotor

The SEW K67 DV112M4/BMG/TF/XV2 is a powerful and reliable gearmotor engineered for continuous duty industrial applications. Delivering high torque output, robust braking, and durable gearbox performance, it ensures dependable operation across automation and heavy-duty drive systems.

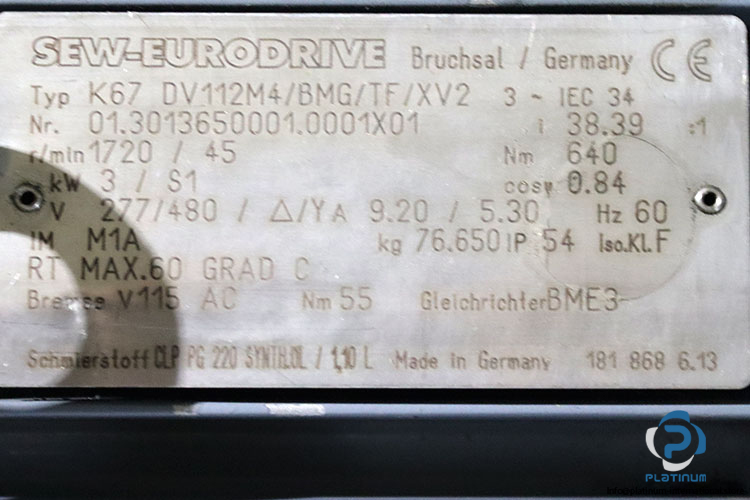

Manufacturer: SEW
Type: Gearmotor
Model: K67 DV112M4/BMG/TF/XV2
Part No.: 01.3013650001.0001X01
Code: 181 868 6.13

Technical information

• Ratio: 38.39
• Rated Speed (Motor): 1720 rpm
• Rated Speed (Output with Gearbox): 45 rpm
• Power: 3 kW (S1 duty “ continuous operation)
• Torque: 640 Nm (gearbox output torque)
• cos φ (Power Factor): 0.84
• Voltage: 277/480 V (Δ/Y connection)
• Current: Δ 9.20 A / Y 5.30 A
• Frequency: 60 Hz
• Insulation Class: F
• Protection Class: IP54
• Thermal Rating: RT max. 60 °C
• Brake: 115 V AC, 55 Nm
• Gear Unit Type: BME3
• Lubrication: CLP PG 220 Synthetic, 1.10 L
