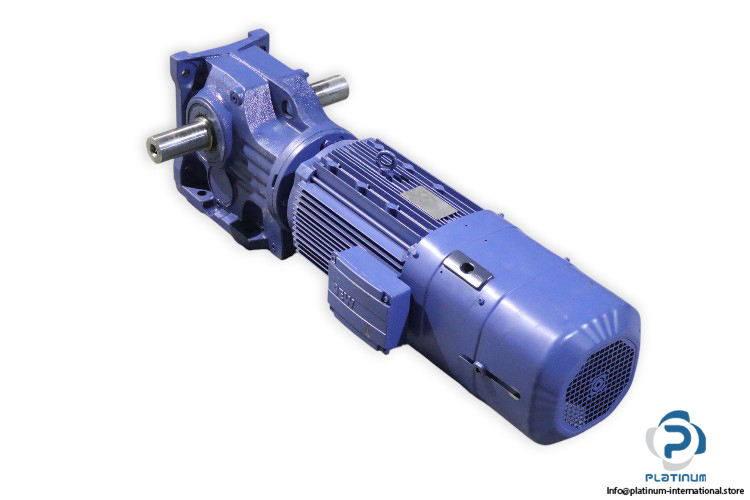

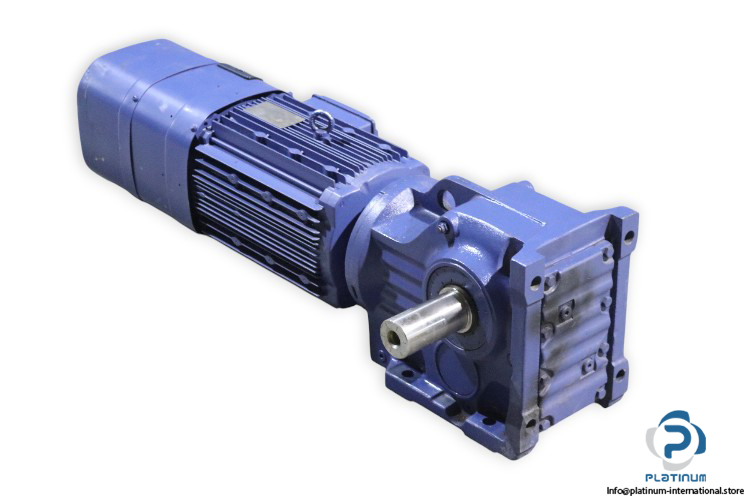

SEW K77 DRE132MC4BE11/TF/AS7W Bevel-Helical Gearmotor

The SEW K77 DRE132MC4BE11/TF/AS7W is a powerful bevel-helical gearmotor designed for heavy-duty industrial applications. With high torque output, excellent efficiency, and robust construction, it ensures reliable performance and long service life under continuous operation.

Manufacturer: SEW
Type: Bevel-Helical Gearmotor
Model: K77 DRE132MC4BE11/TF/AS7W
Part No.: 01.1350396404.0001X10
Code: 188 578 2.50

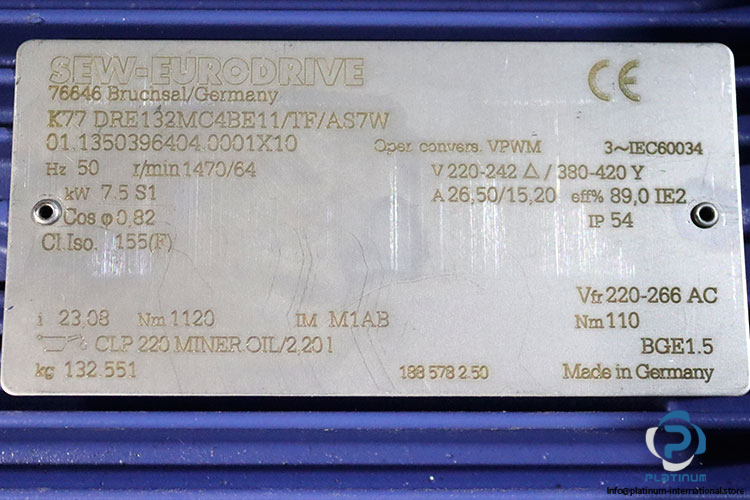

Technical information

• Frequency: 50 Hz
• Speed: 1470 / 64 r/min
• Power: 7.5 kW (S1 duty)
• Torque: 1120 Nm
• Efficiency: 89.0% (IE2)
• Power Factor (Cos φ): 0.82
• Voltage: 220 to 242 V Δ / 380 to 420 V Y
• Current: 26.5 / 15.20 A
• Protection Class: IP54
• Insulation Class: F (155 °C)
• Mounting: IM M1AB
• Gear Ratio (i): 23.08, 1120 Nm

Brake

• Voltage: 220 to 266 V AC
• Brake Torque: 110 Nm
• Rectifier: BGE1.5

Lubrication

• Type: CLP 220 Mineral Oil
• Quantity: 2.20 L
