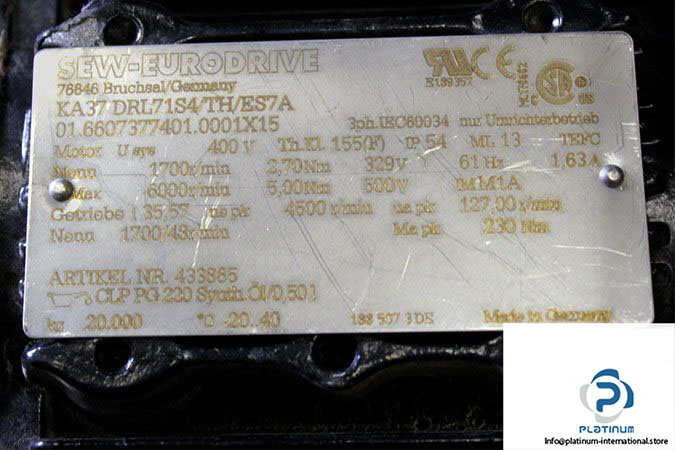

Manufacturer: SEW-EURODRIVE

Type: Helical-Bevel Gearmotor

Model: KA37 DRL71S4/TF/ES7A



Max. Voltage: 500 V AC

Nominal Voltage: 400 V AC

Rated Voltage: 329 V AC

Rated Current At 61 Hz: 1.63 A

Max. Speed: 6000 min^-1

Rated. Speed: 1700 min^-1

Minimum Output Speed: 127 min^-1

Motor/Gear Unit Speed: 1700/48 min^-1

Rated Frequency: 61 Hz

Nominal Torque: 2.70 Nm

Max. Torque: 5 Nm

Minimum Output Torque: 230 Nm

Ratio: 35.57:1

Temperature: -20…40 °C

Thermal Class: F

Protection Class: IP54

Weight: 19.10 kg
