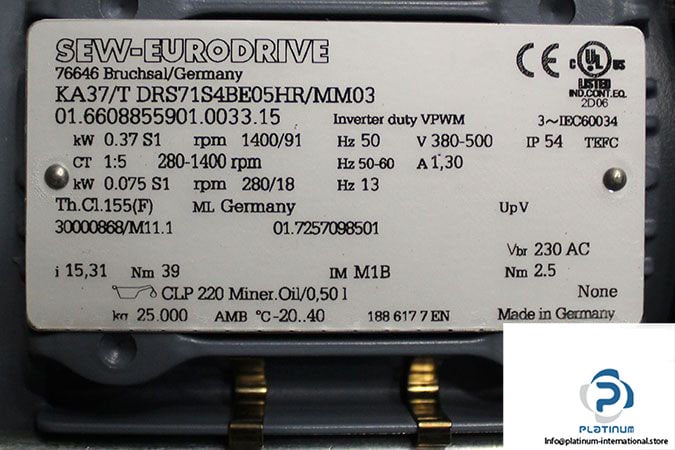

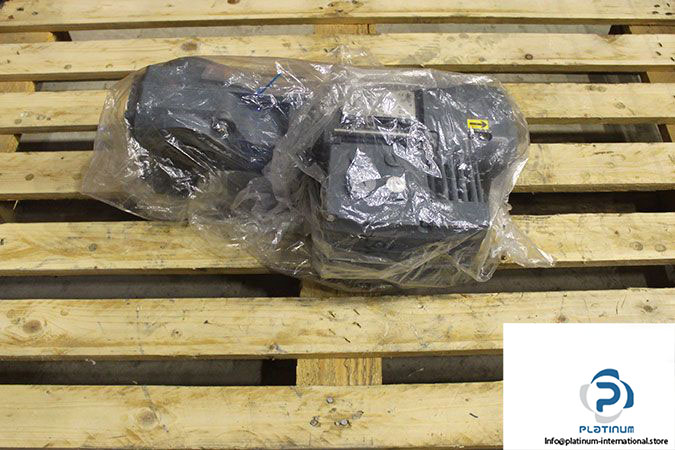

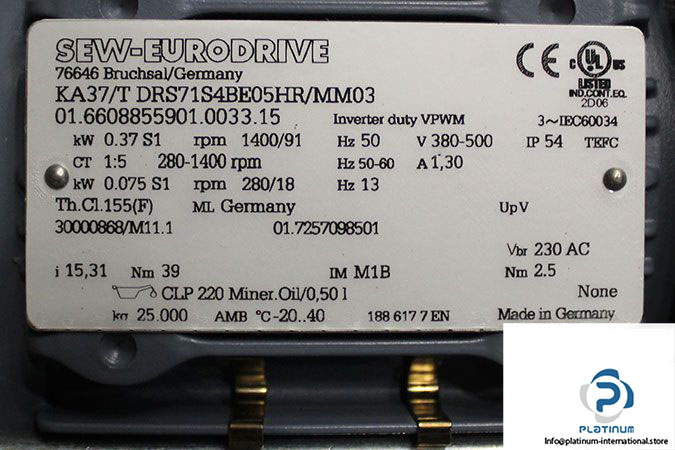

Manufacturer: Sew-Eurodrive

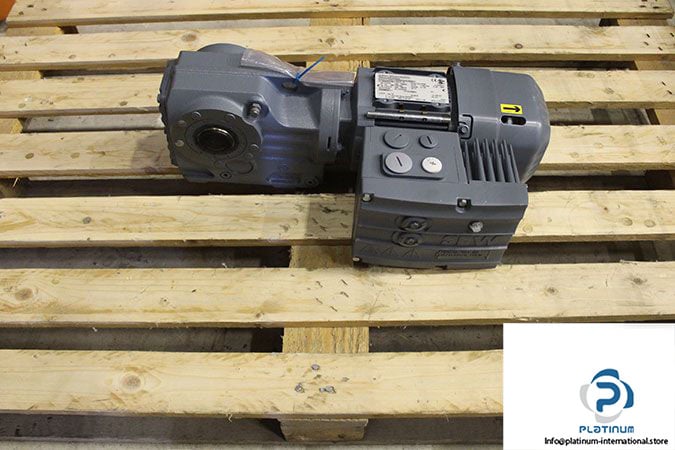

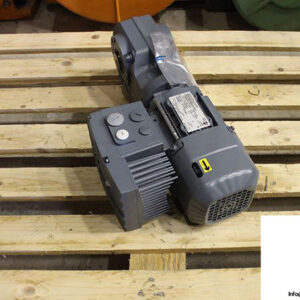

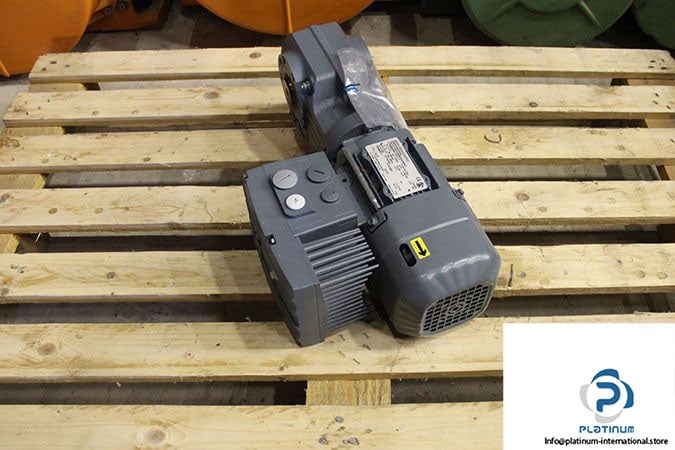

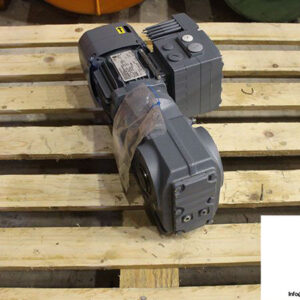

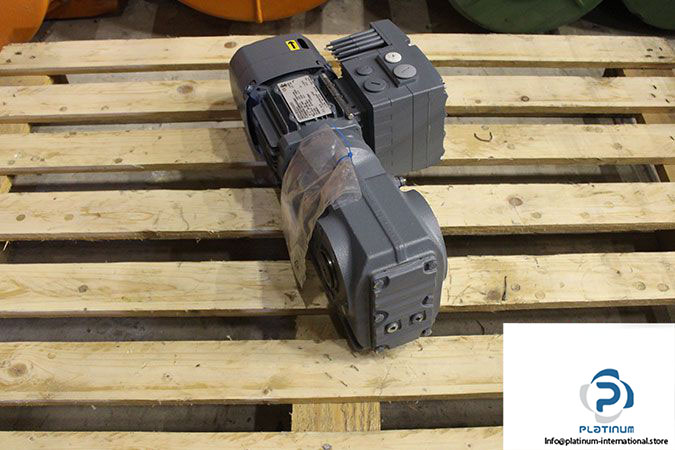

Type: Helical Bevel Gear Motor

Model: KA37/TDRS71S4BE05HR/MM03

Serial Number: 01.6608855901.0033.15

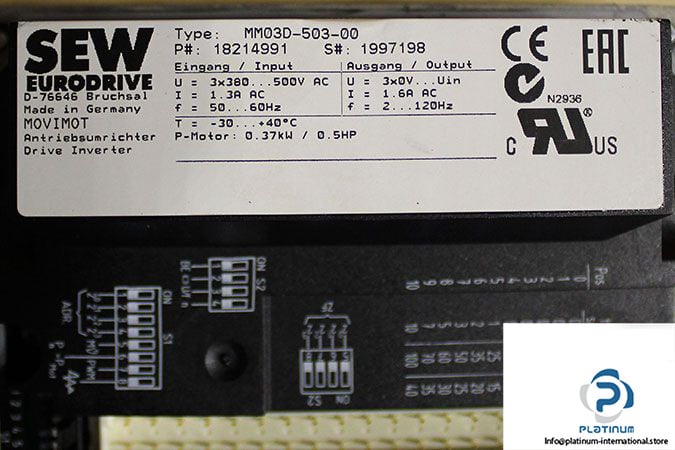

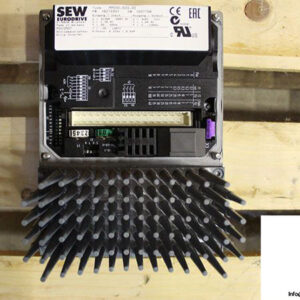

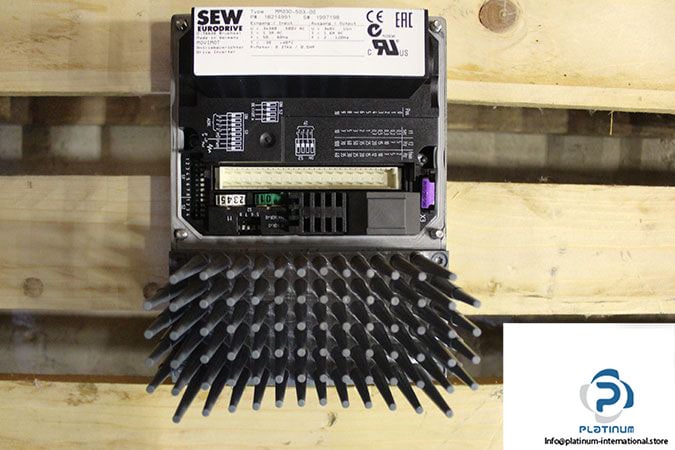

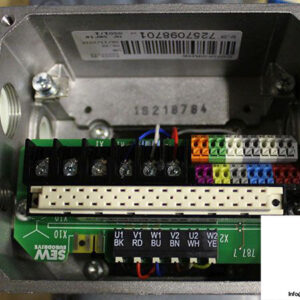

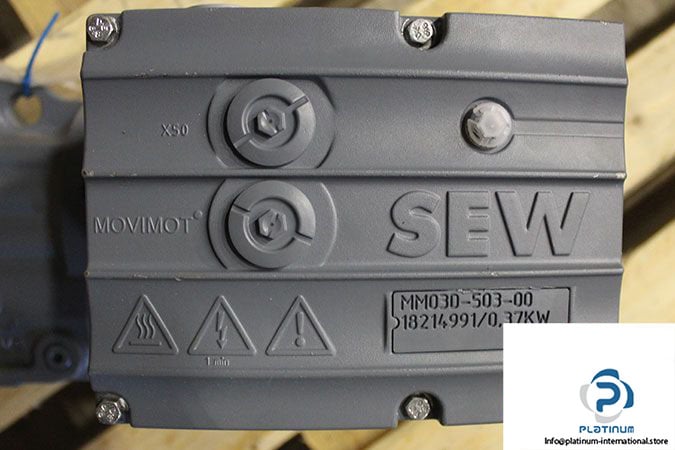

Movimot Type: MM03D-503-00

Part No.: 18214991

Gear Unit: KA37/T

Input Speed [r/min]: 1400-280

Output Speed [r/min]: 91-18

Total Ratio [i]: 15,31 / Infinite

Ma Max [Nm]: 175

Output Torque [Nm]: 39

Service Factor SEW-FB: 4,50

Mounting Position: M1B

Lubricant / -Volume [l]: CLP 220 Miner.Oil / 0,50

Hollow Shaft [mm]: 30

Design: Hollow Shaft

Motor Power [kW]: 0.37 / 0.075

Motor Frequency [Hz]: 50

Cyclic Duration Factor: S1

Setting Range (CT): 1:5

Motor Frequency Min. [Hz]: 13

Motor Voltage [V]: 380-500

Line Frequency [Hz]: 50-60

MM Rated Main Current [A]: 1,30

MM Rated OP Current [A]: 1,60

Thermal Cl.[°C]/Enclosure [IP]: 155(F) / 54

Design Specification: Europe (CE)/ USA(UL)/ Canada

Inverter Duty: VPWM

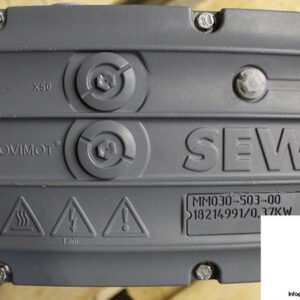

Part No.: 18214991/0.37KW

Rated Voltage Input [V]: 3×380…500

Rated Current Input [A]: 1.3

Frequency Input [Hz]: 50…60

Ambient Temperature Inverter [°C]: -30…40

Rated Voltage Output [V]: 3×0 V…Uinput

Rated Current Output [A]: 1.6

Frequency Output [Hz]: 2…120

Brake: BE05

Brake Release: HR = Manual Brake Release Automatic Re-engaging

Position Brake Release [°]: 303

Brake Voltage [V]/-Torque [Nm]: 230 AC / 2.5

Brake Rectifier: Without

Weight [kg]: 23.7
