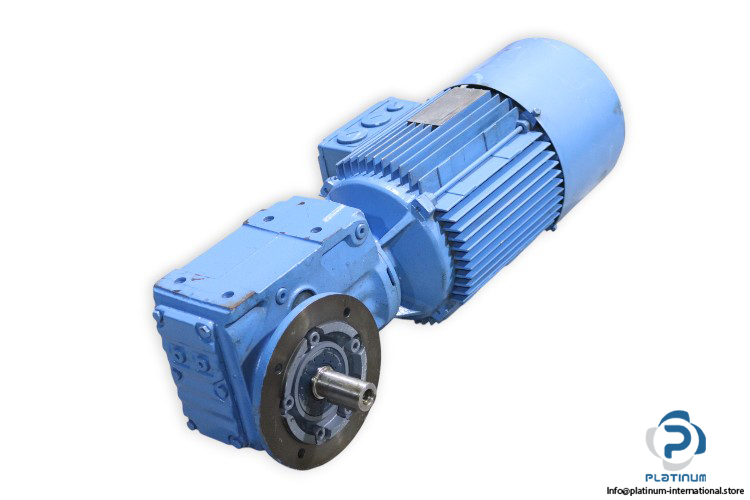

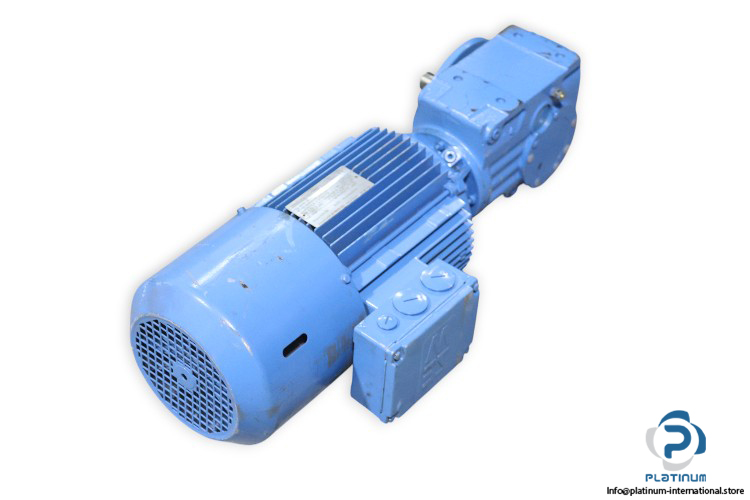

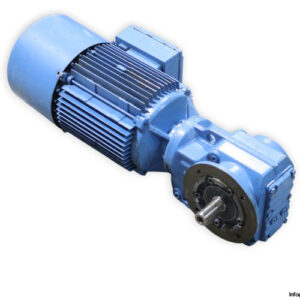

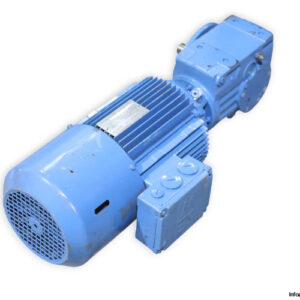

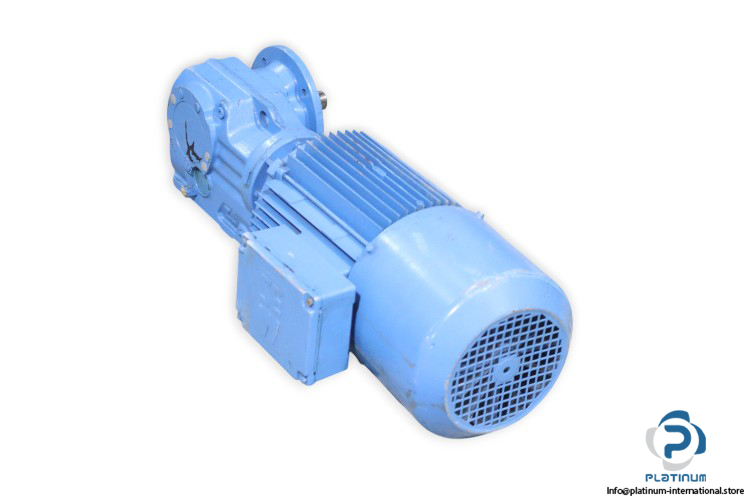

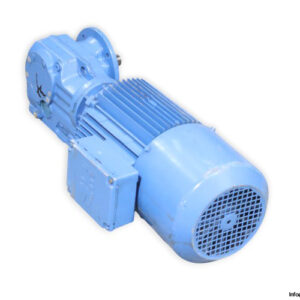

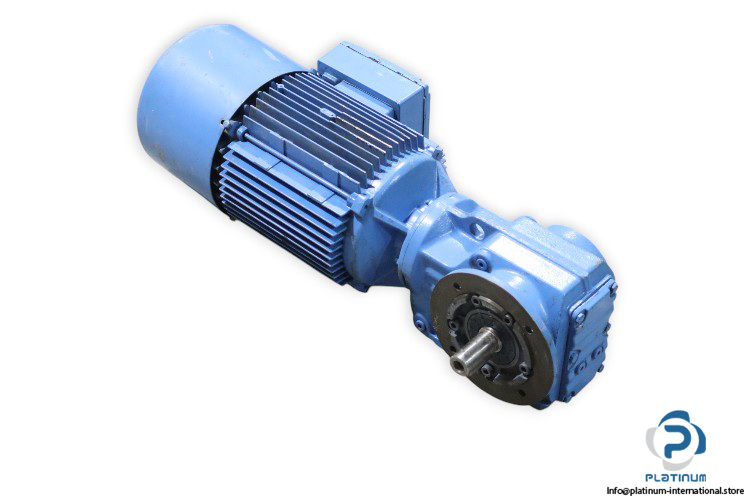

SEW KF37 SDT100L8/2/BMG Bevel-Helical Gearmotor

The SEW KF37 SDT100L8/2/BMG is a high-performance bevel-helical gearmotor designed for industrial power transmission. Engineered with robust gearing, efficient duty cycles, and reliable braking, it ensures precise torque delivery and long service life under demanding operating conditions.

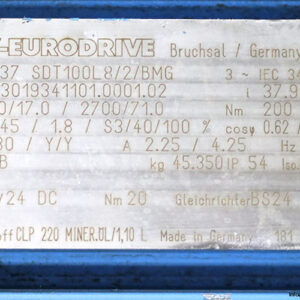

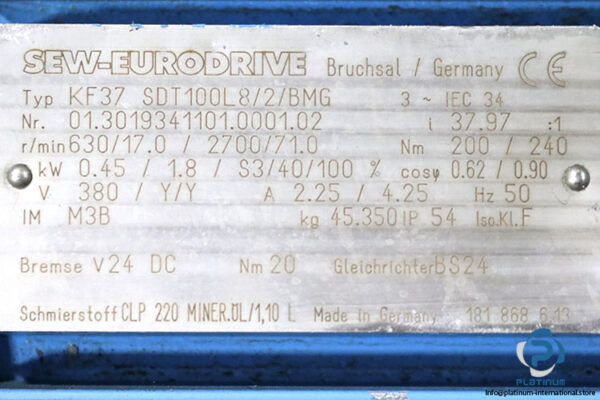

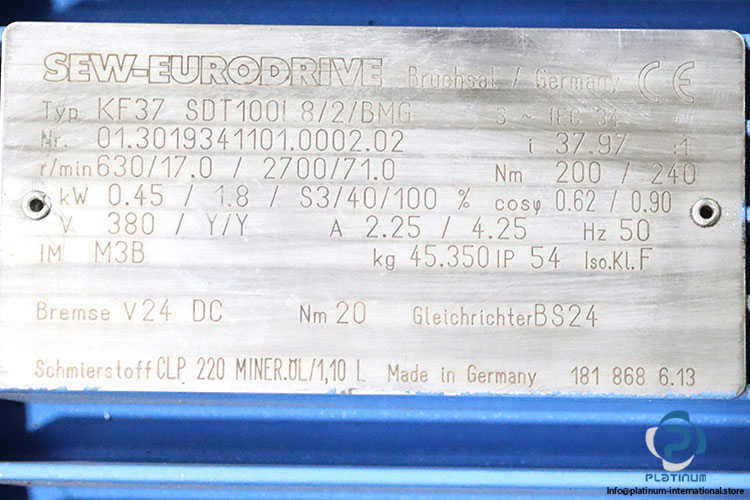

Manufacturer: SEW
Type: Bevel-Helical Gearmotor
Model: KF37 SDT100L8/2/BMG
Part No.: 01.3019341101.0001.02 / 01.3019341101.0002.02
Code: 181 868 6.13

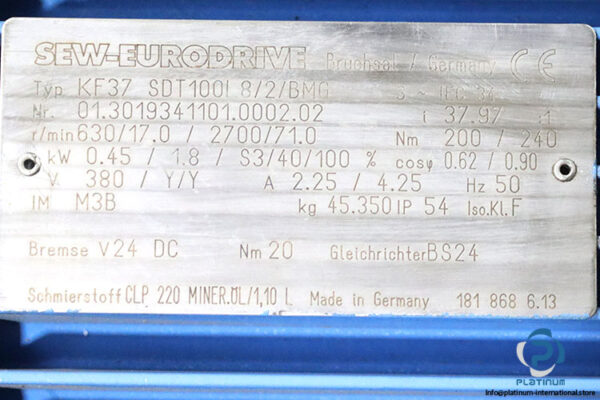

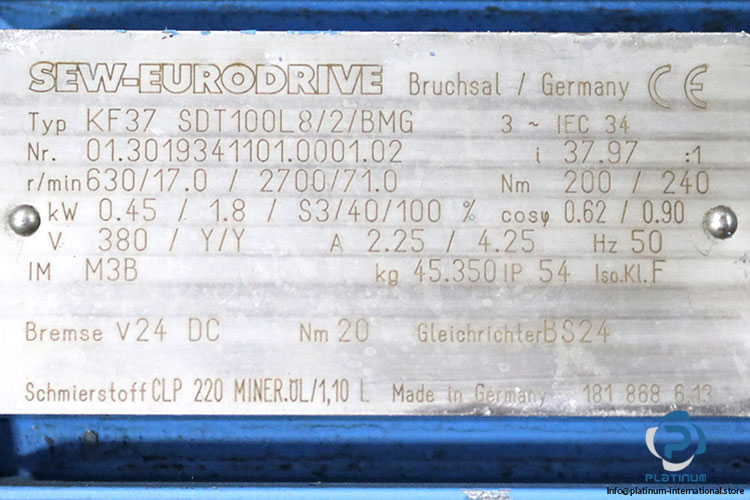

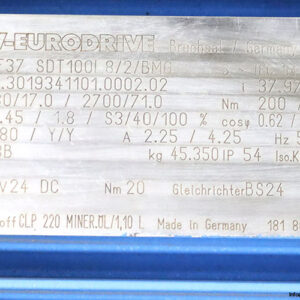

Technical information

• Speed (r/min): 630 / 17.0 / 2700 / 71.0
• Power: 0.45 / 1.8 kW
• Duty Cycle: S3 / 40% “ 100%
• Voltage: 380 V
• Current (A): 2.25 / 4.25
• Frequency: 50 Hz
• Torque (Nm): 200 / 240
• Power Factor (Cos φ): 0.62 / 0.90
• Insulation Class: F
• Mounting: IM M3B
• Protection Class: IP54
• Ratio: 37.97

Brake

• Voltage: 24 V DC
• Brake Torque: 20 Nm
• Rectifier: BS24

Lubrication

• Type: CLP 220 Mineral Oil
• Quantity: 1.10 L
