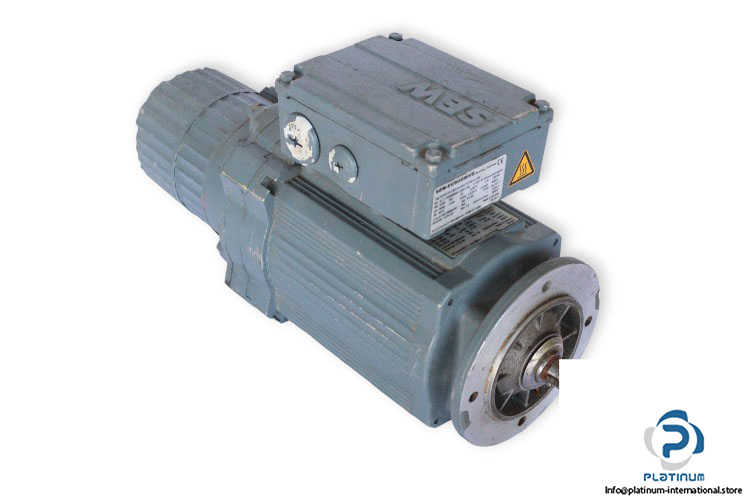

SEW KH37/R CM71S/BR/TF/RH1L/KK HELICAL BEVEL GEARMOTOR

The SEW KH37/R CM71S/BR/TF/RH1L/KK is a robust Helical Bevel Gearmotor engineered for reliable performance in demanding industrial applications. Featuring high efficiency, compact design, and integrated brake and encoder options, it ensures precise motion and torque control in automated systems.

Manufacturer: SEW
Type: Helical Bevel Gearmotor
Model: KH37/R CM71S/BR/TF/RH1L/KK

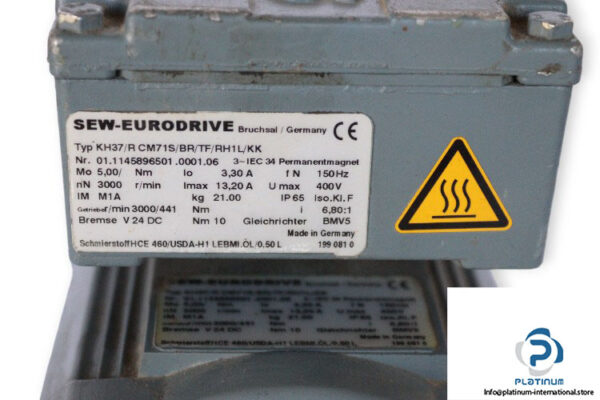

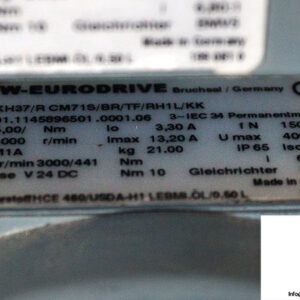

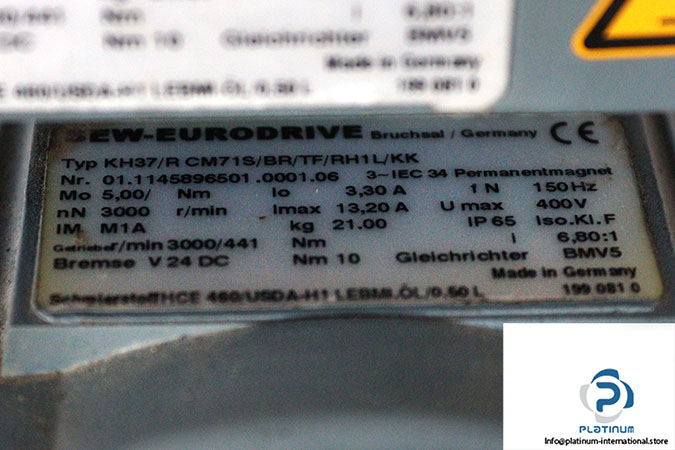

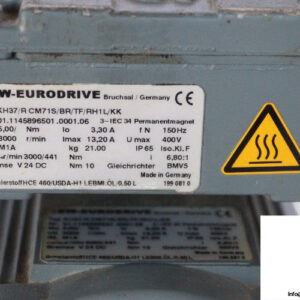

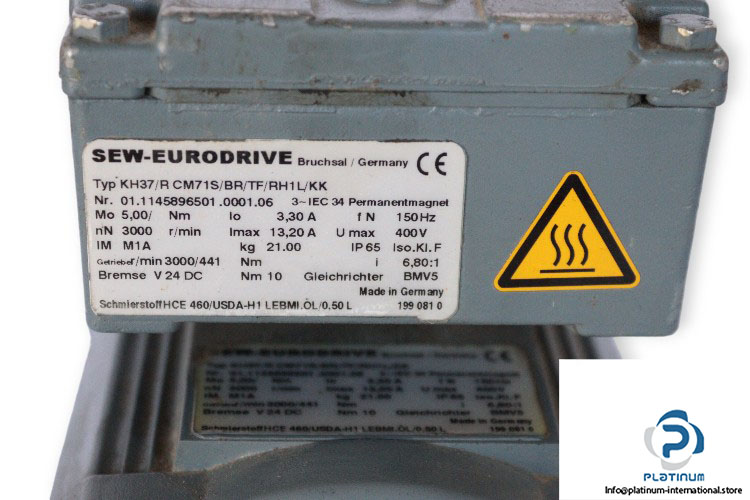

Nr: 01.1145896501.0001.06
Ref no: 199 081 0

Technical Information

• Gear Unit: CM71S
• Motor Size: 71
• Speed Class: 3000 r/min
• Torque at Standstill: 5 Nm
• Standstill Current: 3.30 A
• Max. Current: 13.20 A
• Max. Voltage: 400 V
• Frequency: 150 Hz
• Mounting Position: M1A
• Degree of Protection: IP65
• Insulation Class: F
• Gear Type: Helical Bevel Gear Motor Unit IN B5 Flange Mounted
• Gear Unit Size: 37
• Ratio: 6.80
• Gear Output Speed: 441 r/min
• Motor Speed: 3000 r/min
• Brake Rectifier: BMV5
• Brake Voltage: 24 V DC
• Brake Torque: 5 Nm
• Thermistor: PTC Resistor
• Encoder: RH1L
• Plug Connector: KK
