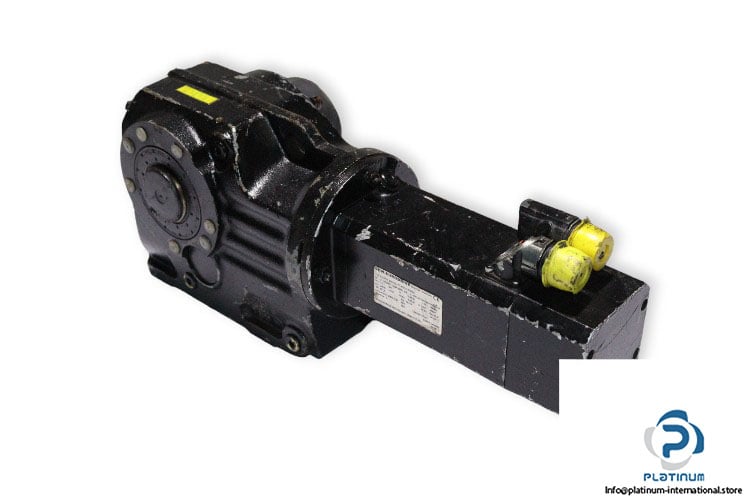

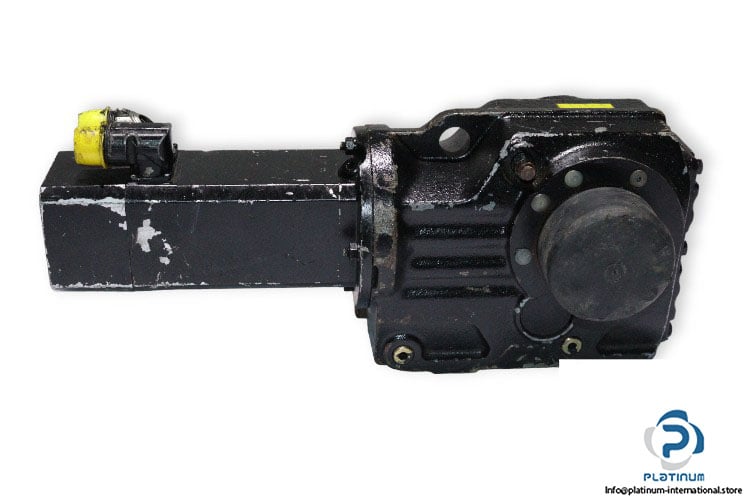

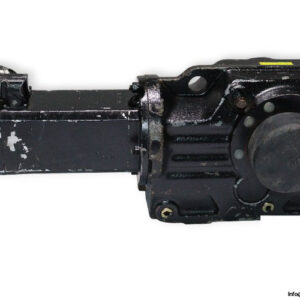

SEW KH37/T DS56L/TF/AS1H/SM10 BEVEL HELICAL SERVO GEARMOTOR
The SEW KH37/T DS56L/TF/AS1H/SM10 is a high-performance bevel helical servo gearmotor designed for advanced motion control applications. This unit combines compact design with powerful torque output, precision speed control, and robust build”ideal for demanding industrial automation systems.
Manufacturer: SEW
Type: Bevel Helical Servo Gearmotor
Model: KH37/T DS56L/TF/AS1H/SM10
Part No.: 01.3028571308.0001.04

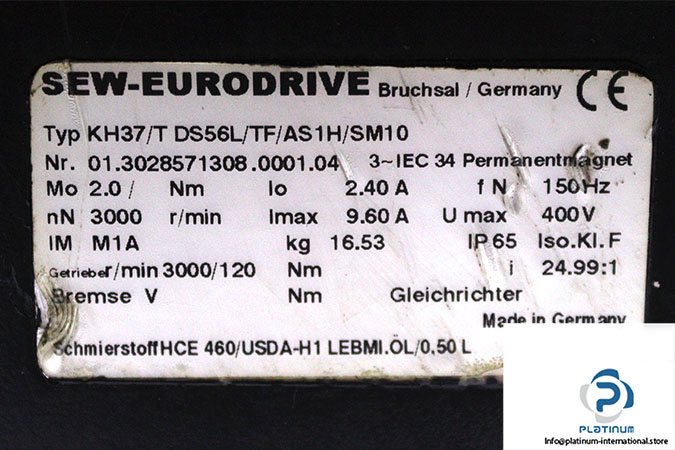

Technical Information
- Gear Unit: KH37/T
- Motor Size: 56
- Speed Class: 3000 r/min
- Torque at Standstill: 2 Nm
- Standstill Current: 2.40 A
- Max. Current: 9.60 A
- Motor Voltage: 400 V
- Frequency: 150 Hz
- Mounting Position: M1A
- Standard: IEC 34
- Degree of Protection: IP65
- Insulation Class: F
- Gear Type: Helical bevel gear motor with hollow shaft and shrink disc
- Gear Unit Size: 37
- Ratio: 24.99
- Gear Torque: 120 Nm
- Input Speed: 3000 rpm
- Encoder: AS1H, multi-turn encoder
- Plug Connector: SM10
- TF: Thermistor (PTC Resistor)
