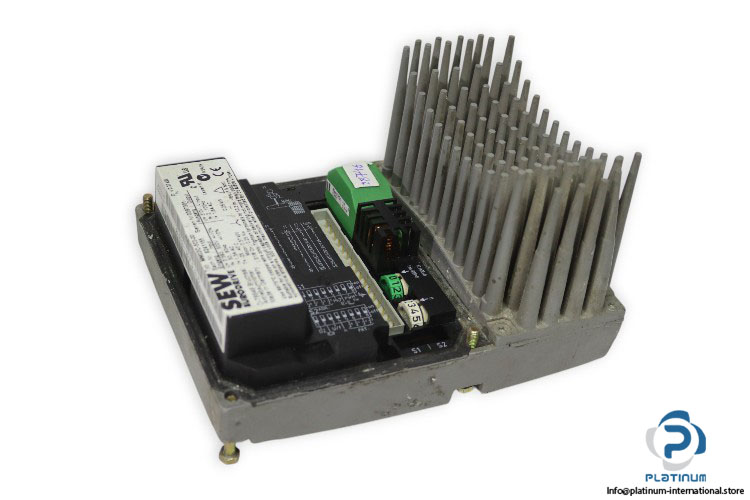

SEW MOVIMOT MM03C-503-00 INVERTER DRIVE

The SEW MOVIMOT MM03C-503-00 is a compact and efficient inverter drive, designed for reliable operation in industrial environments. With a wide input voltage range, robust protection, and versatile output control, it ensures optimized motor performance and energy efficiency.

Manufacturer: SEW
Type: MOVIMOT Inverter Drive
Model: MM03C-503-00
Part No.: 8241155 / 0397301
Range: MOVIMOT

Technical Information

• Input:
  Supply Voltage: 3-Phase 380 / 500 V AC
  Rated Current: 1.3 A
  Frequency: 50 / 60 Hz
  Power: 0.37 / 0.25 kW
• Output:
  Rated Voltage: 3-Phase 0 / 380 – 500 V AC
  Rated Current: 1.6 A
  Frequency: 2 / 100 Hz
  Power: 0.25 kW
• Protection Class: IP54/55/65/66
• Temperature Range: -20 / 40 °C
• Dimensions: 142 x 183 x 119.5 mm
