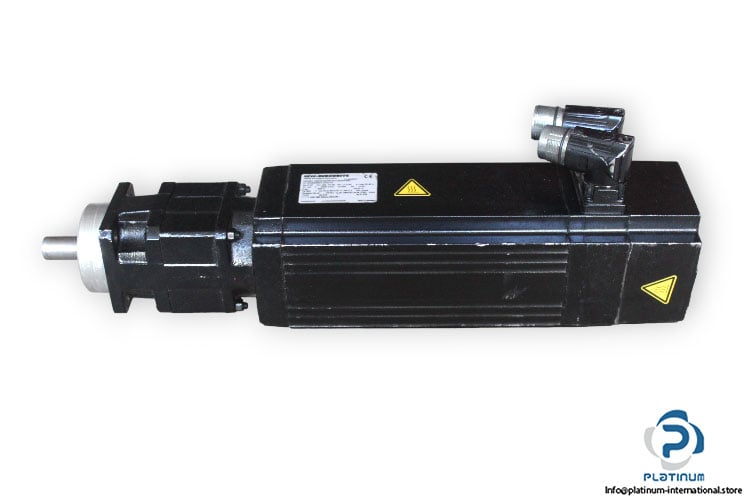

Manufacturer: SEW

Type: Planetary Servo Gearmotor

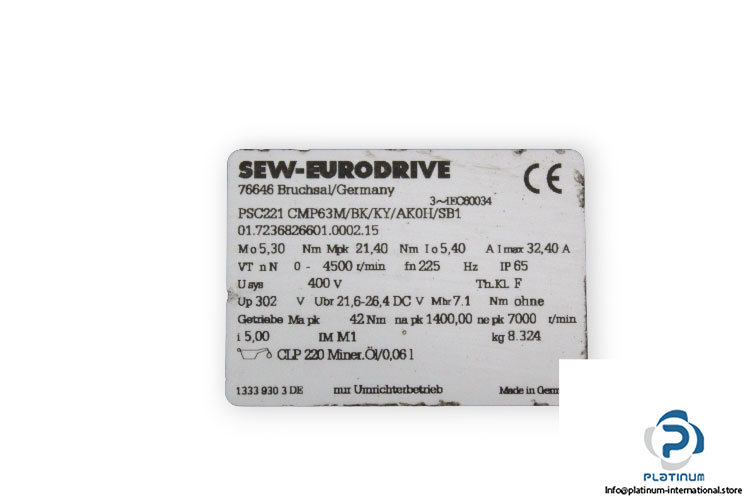

Model: PSC221CMP63M/BK/KY/AK0H/SB1

Part Nr.: 01.7236826601.0002.15

Speed [r/min]: 4500 / 900

Total Ratio [i]: 5,00 / Finite

Lubricant/Volume [l]: CLP 220/0,06

Input Speed [rpm]: 7000

Output Speed [min^-1]: 1400

Output Torque [Nm]: 42

Output Shaft End [mm]: 16×28

Flange: Centering Shoulder 60mm, Hole Circle Through Holes 68mm

Rated Speed [rpm]: 4500

Standstill Torque [Nm]: 5.3

Max. Limit Torque [Nm]: 21.4

Standstill Current [A]: 5.4

Max. Current [A]: 32.4

Cyclic Duration Factor: S1

Motor Voltage [V]: 400

Max. Permitted Frequency [Hz]: 225

Brake Voltage [VDC]: 24

Torque [Nm]: 7.1

Thermal Class: F

Enclosure [IP]: 65

Thermal Class: F
