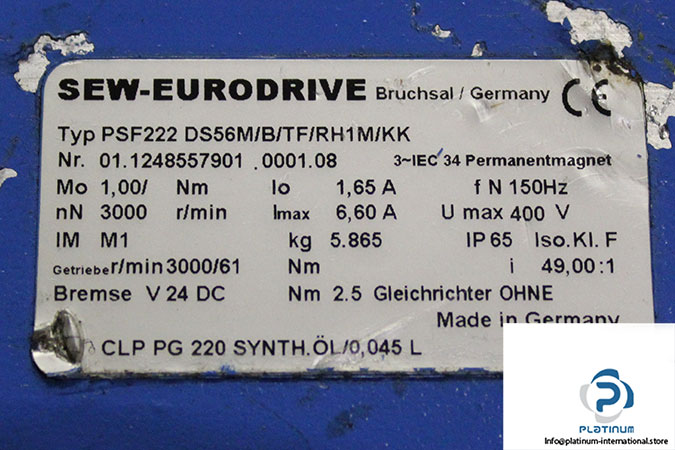

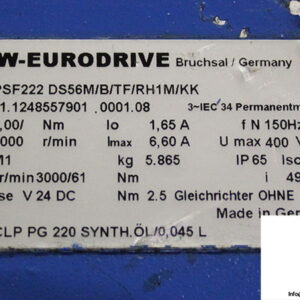

Manufacturer: SEW

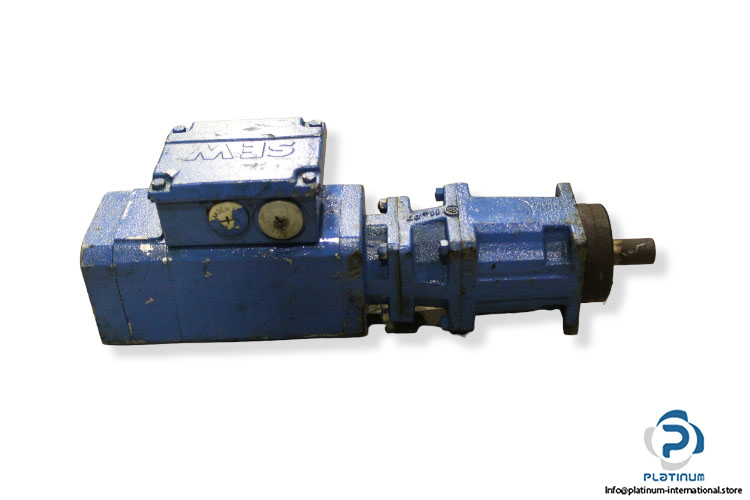

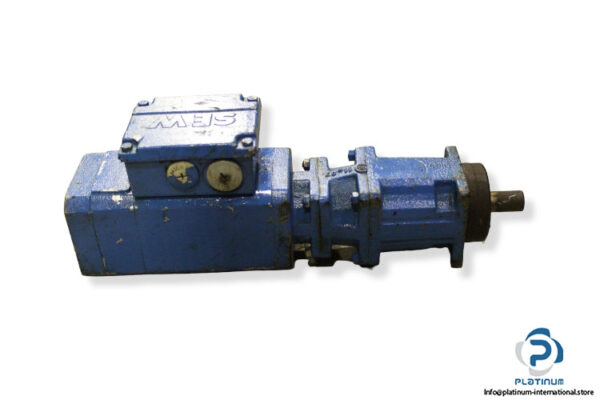

Type: Planetary Servo Gear Units

Model: PSF222DS56M/B/TF/RH1M/KK

Part Nr.: 01.1248557901.0001.08

Speed [r/min]: 3000/61

Total Ratio [i]: 49,00/Finite

Rated Speed [rpm]: 3000

Standstill Torque [Nm]: 1,00

Max. Limit Torque [Nm]: 3,80

Standstill Current [A]: 1,65

Max. Current Imax [A]: 6,60

Cyclic Duration Factor: S1

Motor Voltage [V]: 400

Thermal Class/Enclosure [IP]: F/65

Max. Permitted Frequency [Hz]: 150

Mounting Position: M1

Brake Voltage [V]/Torque [Nm]: 24 DC / 2.5

Lubricant /Volume [l]: CLP PG 220 Synth.Oil / 0,045

Output shaft end [mm]: 16×28

Design: Flange-Mounted Version

Flange: Centering Shoulder 60mm, Hole Circle Through Holes 68mm
