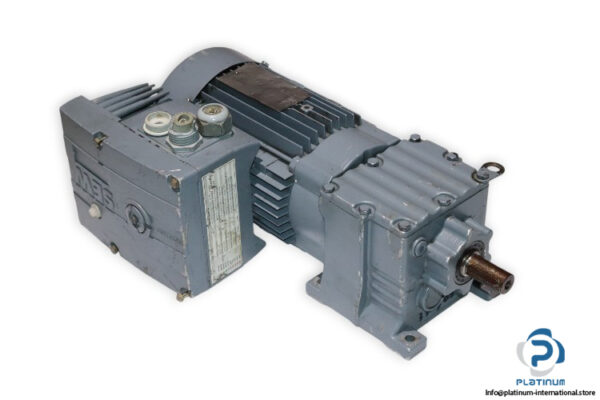

SEW R17 DT80K-4 MM05 Helical-Gearmotor

The SEW R17 DT80K-4 MM05 Helical-Gearmotor is a high-performance gearmotor designed for industrial applications requiring efficient power transmission. With a robust design and integrated MOVIMOT inverter drive, it offers variable speed control and reliability in demanding environments.

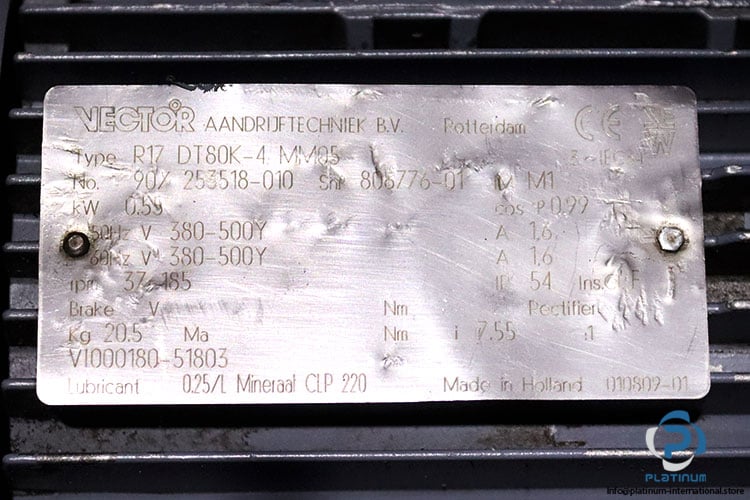

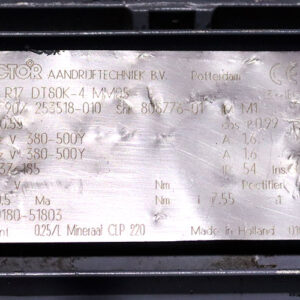

Manufacturer: SEW

Type: HELICAL-GEARMOTOR

Model: R17 DT80K-4 MM05

Part No.: 90/253518-010

Technical Information:

• Gear Unit: R17
• Speed [r/min]: 37 – 185
• Total Ratio: 7.55
• Mounting Position: M1
• Motor Power [kW]: 0.55
• Multi Range-Voltage 50Hz [V]: 380-500
• Multi Range-Voltage 60Hz [V]: 380-500
• MM Rated Main Current [A]: 1.60
• MM Rated Output Current [A]: 1.60
• Thermal Class [°C] / Enclosure [IP]: F / 54

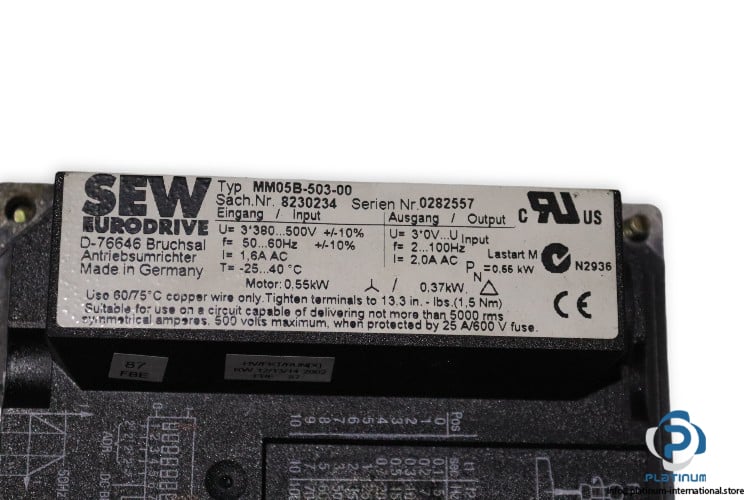

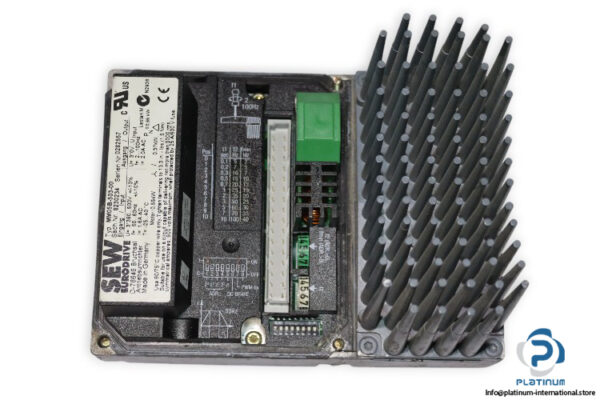

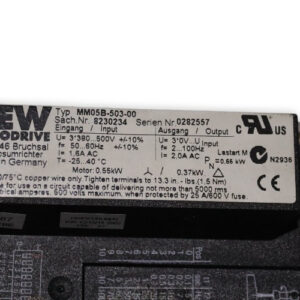

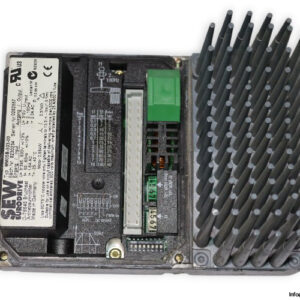

Attached with: SEW MM05B-503-00 MOVIMOT Inverter Drive

Input:

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.6 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 2 A
• Frequency: 2 to 100 Hz

This helical-gearmotor with an integrated MOVIMOT inverter provides a versatile and energy-efficient solution for variable speed applications.
