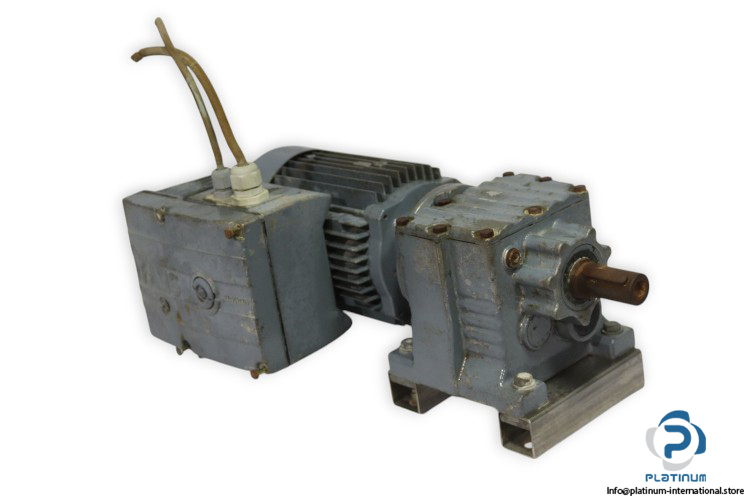

SEW R27 DT80K4/MM05/BW1 GEAR MOTOR WITH MOVIMOT INVERTER DRIVE
The SEW R27 DT80K4/MM05/BW1 Gear Motor, equipped with the SEW MM05B-503-00 MOVIMOT Inverter Drive, delivers precise control, efficiency, and reliability for demanding industrial applications. Designed for continuous duty (S1) operation, it features high protection and insulation classes, making it suitable for challenging environments.

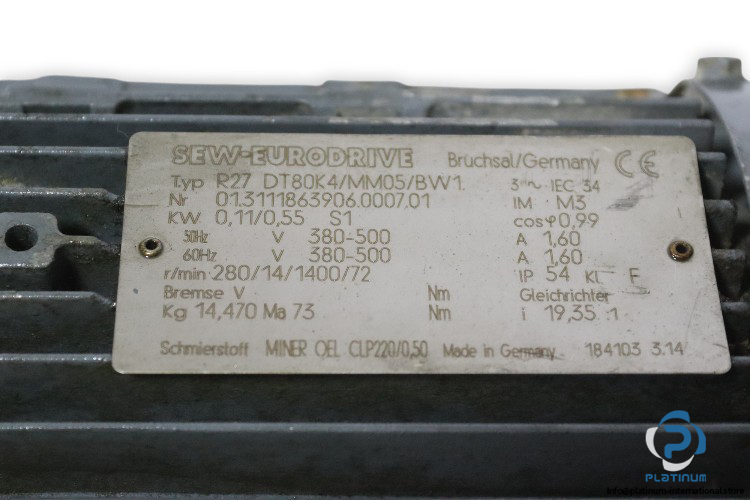

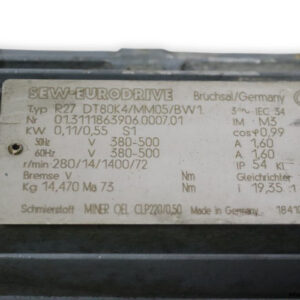

Manufacturer: SEW
Type: Gear Motor
Model: R27 DT80K4/MM05/BW1
Part No.: 01.3111863906.0007.01
Code: 184103 3.14
Technical Information
- Ratio: 19.35
- Power: 0.11 / 0.55 kW
- Voltage: 380 to 500 V
- Frequency: 50 / 60 Hz
- Speed: 280 / 14 / 1400 / 72 rpm
- Duty Cycle: S1
- Current (A): 1.60
- Power Factor Cos φ: 0.99
- Protection Class: IP54
- Insulation Class: F
- Lubrication: CLP 220 Mineral Oil, 0.50 L

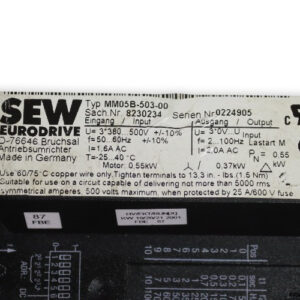

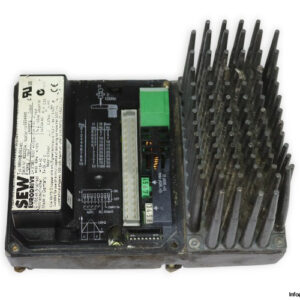

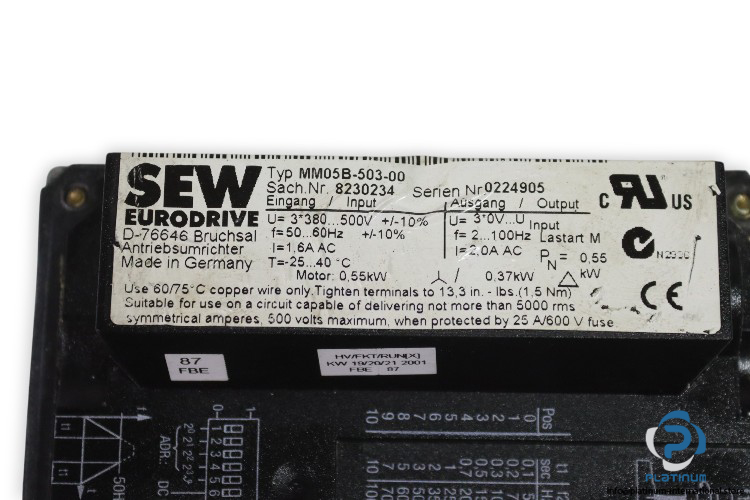

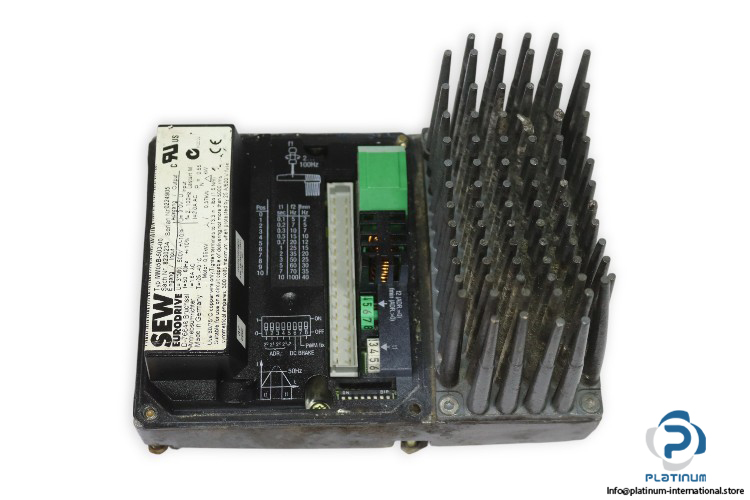

Attached MOVIMOT Inverter Drive
Model: SEW MM05B-503-00
Sach. Nr.: 8230234
Serial Nr.: 0224905
Input Specifications:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 1.6 A
- Frequency: 50 / 60 Hz
- Temperature Range: -25 to 40°C
- Motor: 0.55 kW
Output Specifications:
- Rated Voltage: 3-Phase 0 to (380 to 500 V AC)
- Rated Current: 2 A
- Frequency Range: 2 to 100 Hz
- Nominal Power: 0.55 / 0.37 kW
Additional Information:
- Wire Type: Use only copper wire rated for 60°C or 75°C
- Terminal Tightening Torque: 13.3 inch-pounds (1.5 Nm)
- Fuse Protection: 25 A, 600 V fuse
- Circuit Suitability: Up to 5000 rms
