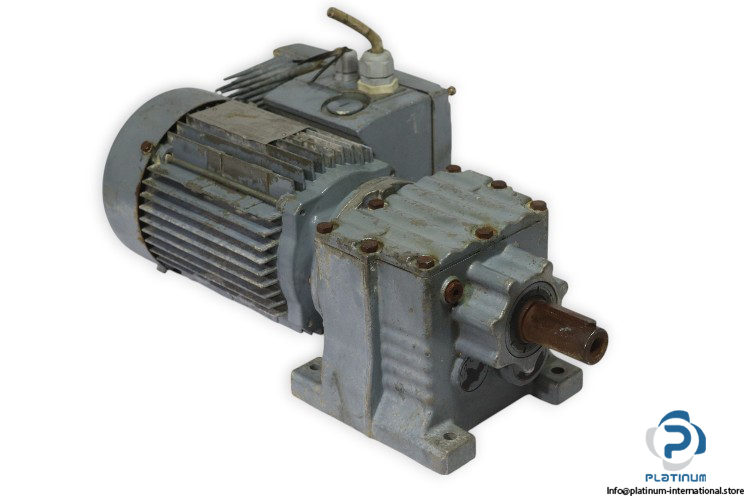

SEW R27 DT80K4/MM05/BW1 HELICAL GEARMOTOR WITH MOVIMOT INVERTER DRIVE

The SEW R27 DT80K4/MM05/BW1 Helical Gearmotor, integrated with the SEW MM05B-503-00 MOVIMOT Inverter Drive, offers efficient and precise speed control for demanding industrial applications. Designed with robust IP54 protection, Class F insulation, and high torque transmission, it ensures reliable performance in continuous duty operations.

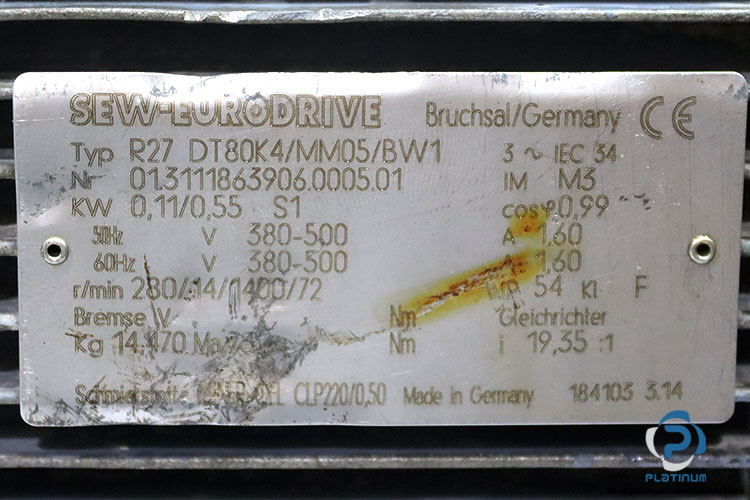

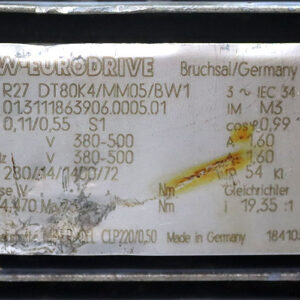

Manufacturer: SEW
Type: Helical Gearmotor
Model: R27 DT80K4/MM05/BW1
Part No.: 01.3111863906.0005.01
Code: 184103 3.14

Technical Information

• Ratio: 19.35
• Power: 0.11 / 0.55 kW
• Voltage: 380 to 500 V
• Frequency: 50 / 60 Hz
• Speed: 280 / 14 / 1400 / 72 rpm
• Duty Cycle: S1
• Current (A): 1.60 A
• Power Factor (Cos φ): 0.99
• Protection Class: IP54
• Insulation Class: F
• Lubrication: CLP 220 Mineral Oil 0.50 L

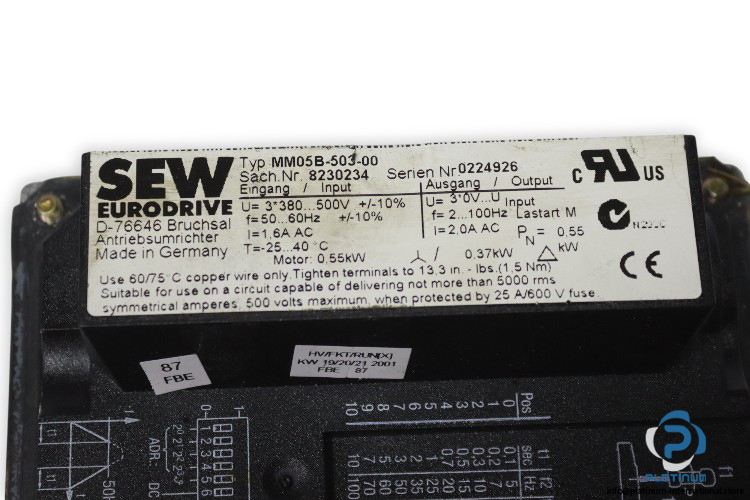

Attached Component

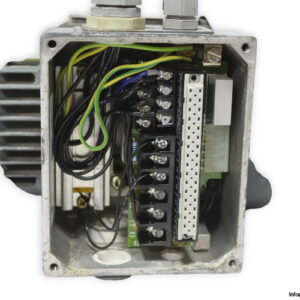

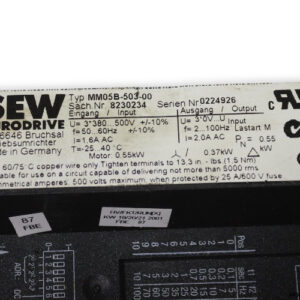

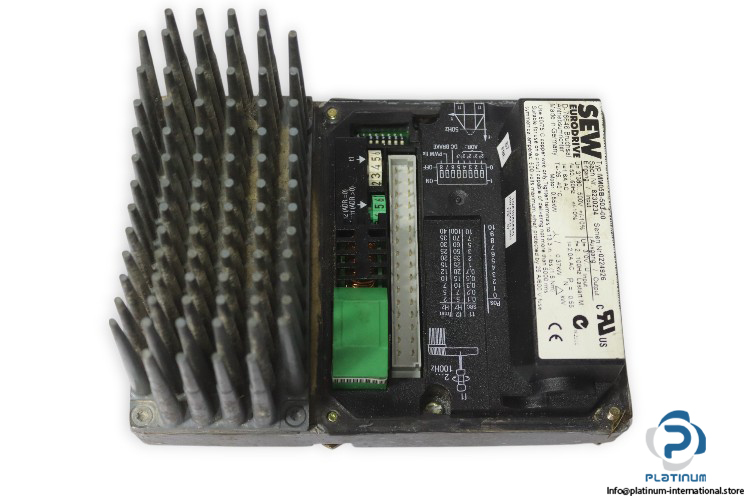

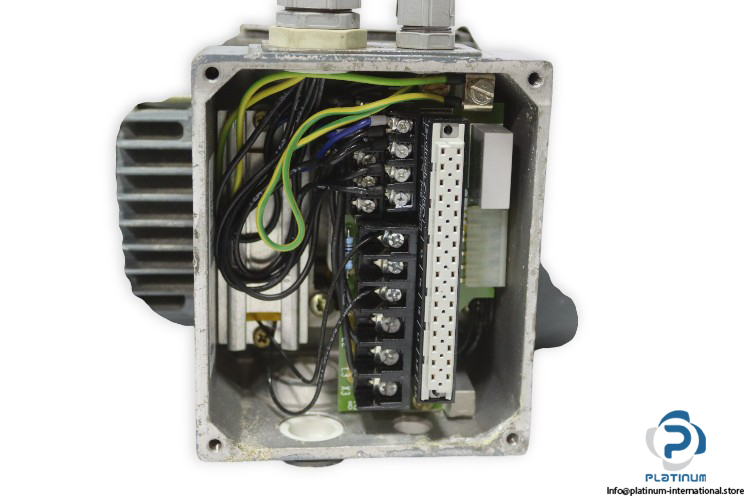

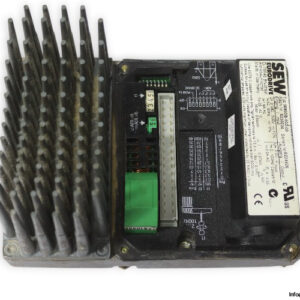

SEW MM05B-503-00 MOVIMOT Inverter Drive
Sach. Nr.: 8230234
Serial Nr.: 0224926

Input

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.6 A
• Frequency: 50 / 60 Hz
• Temperature: -25 to 40°C
• Motor: 0.55 kW

Output

• Rated Voltage: 3-Phase 0 to (380 to 500 V AC)
• Rated Current: 2 A
• Frequency: 2 to 100 Hz
• Nominal Power: 0.55 / 0.37 kW

Additional Information

• Wire Type: Use only copper wire rated for 60°C or 75°C
• Terminal Tightening Torque: 13.3 inch-pounds (1.5 Nm)
• Fuse Protection: 25 A, 600 V fuse
• Suitable For: Circuit capable of delivering not more than 5000 RMS
