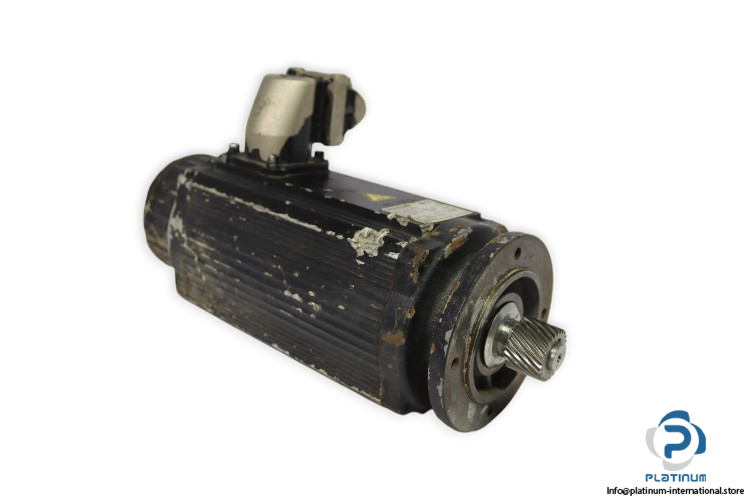

SEW R37 CM71L/TF/RH1M/SM50 Servomotor

The SEW R37 CM71L/TF/RH1M/SM50 is a high-performance servomotor with integrated R37 series gearbox, designed for demanding motion control and automation applications. Offering reliable torque, precise speed control, and robust construction, it ensures efficiency and long service life in industrial environments.

Manufacturer: SEW
Type: Servomotor
Model: R37 CM71L/TF/RH1M/SM50
Part No.: 01.1751999201.0002.11

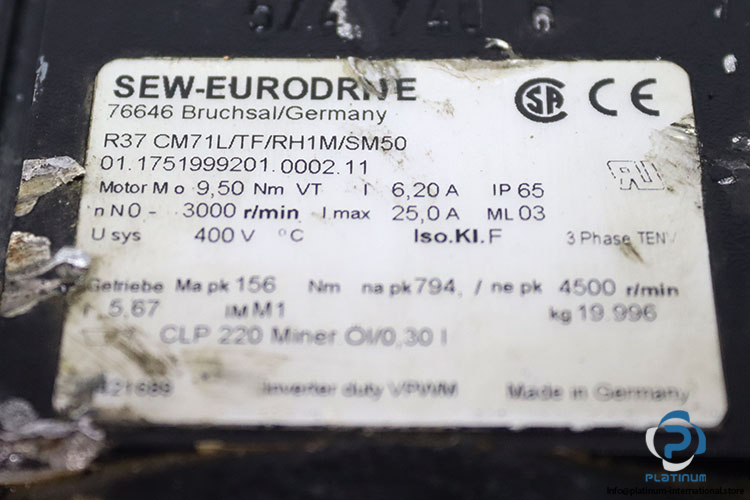

Technical information

• Torque (Mo): 9.50 Nm
• Voltage: 400 V (3-phase)
• Current: 6.20 A
• Rated Speed (nN): 3000 r/min
• Max Current (Imax): 25 A
• Insulation Class: F
• Protection Class: IP65
• Duty: Continuous (S1)
• Thermal Sensor: ML03

Gearbox Data

• Gearbox Type: R37 series
• Peak Torque: 156 Nm
• Nominal Torque: 794 Nm
• Max Speed: 4500 r/min
• Mounting: IM M1
• Lubrication: CLP 220 Mineral Oil, 0.30 L
