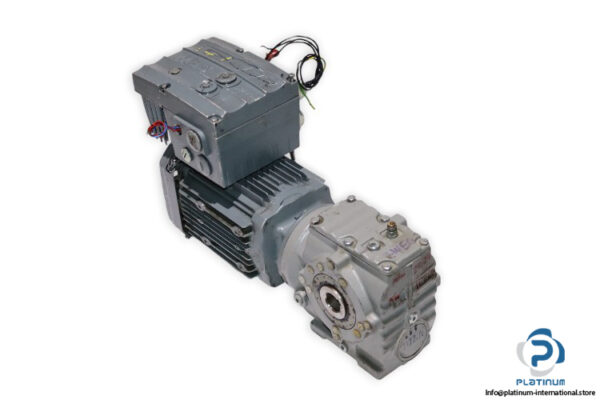

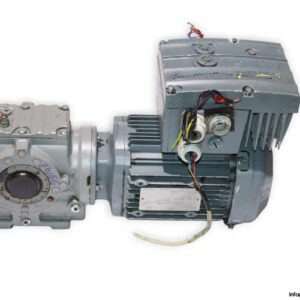

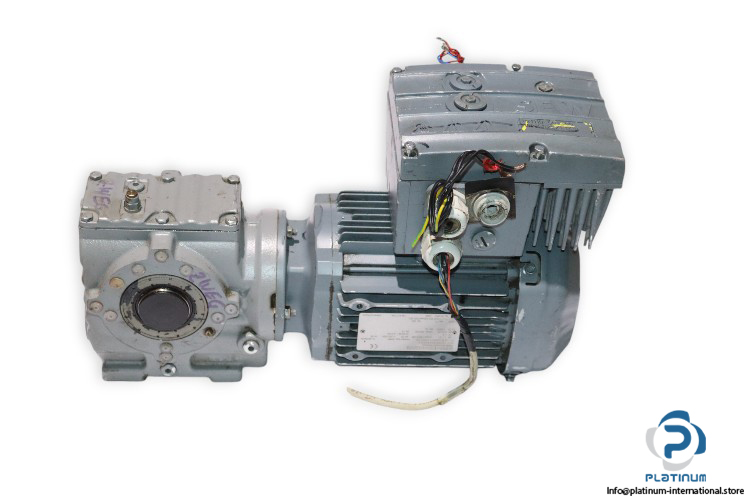

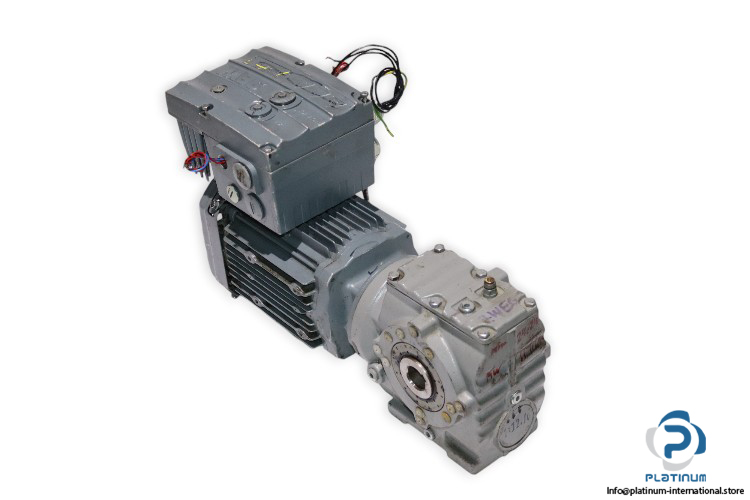

SEW R37 DRS80M4/MM11 Helical-Worm Gearmotor
The SEW R37 DRS80M4/MM11 Helical-Worm Gearmotor is engineered for efficient and high-performance motion control. Designed for durability and reliability, this gearmotor provides high torque, optimized speed ratios, and seamless integration with inverter drives.
Manufacturer: SEW
Type: Helical-Worm Gearmotor

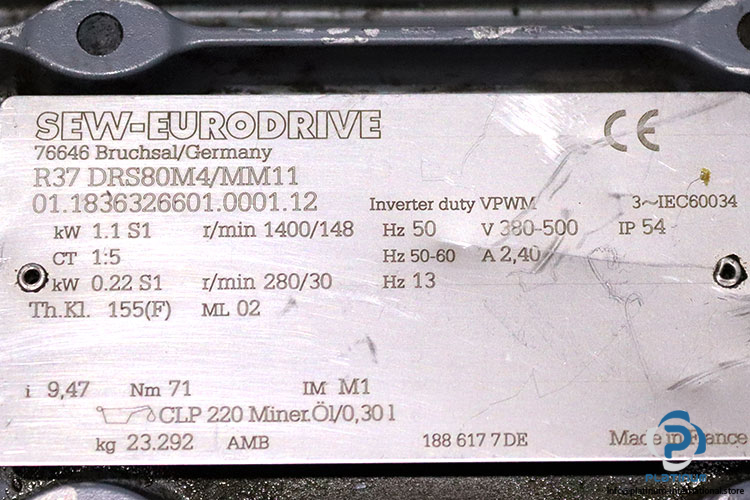

Model: R37 DRS80M4/MM11
Part No.: 01.1836326601.0001.12

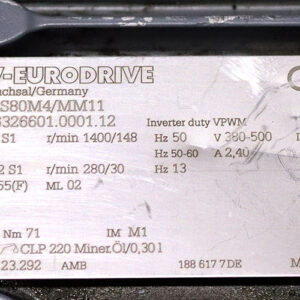

Technical Information:
- Gear Unit: R37
- Speed 50Hz [r/min]: 1400 – 280
- Output Speed [r/min]: 148 – 30
- Total Ratio: 9,47 / infinite
- Output Torque [Nm]: 71
- Service Factor SEW-FB: 2,40
- Mounting Position: M1
- Lubricant / Volume [l]: CLP 220 Miner.Oil / 0,30
- Output Shaft End: 25x50mm lg.
- Motor Power [kW]: 1.1 / 0.22
- Motor Frequency [Hz]: 50
- Cyclic Duration Factor S1-S10: S1
- Motor Voltage [V]: 380-500
- Line Frequency [Hz]: 50-60
- MM Rated Main Current [A]: 2,40
- MM Rated Output Current [A]: 3,20
- Thermal Class [°C] / Enclosure [IP]: 155(F) / 54

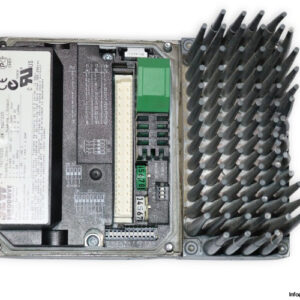

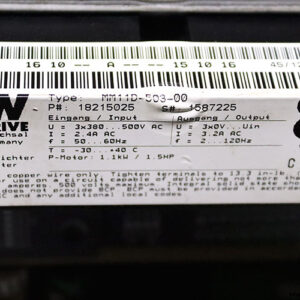

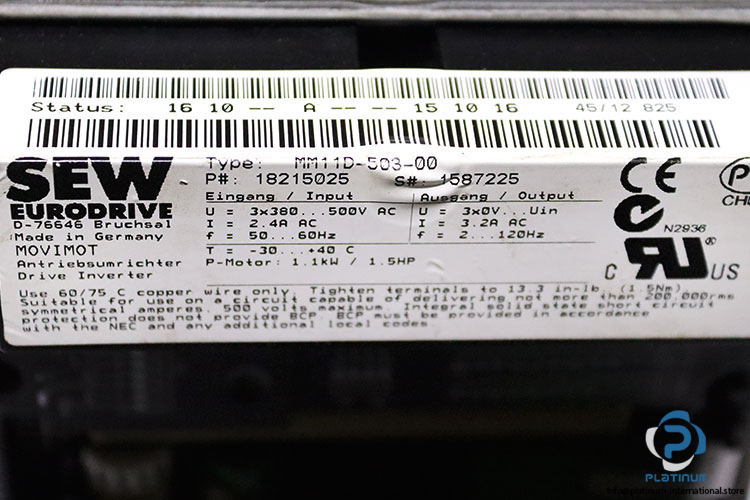

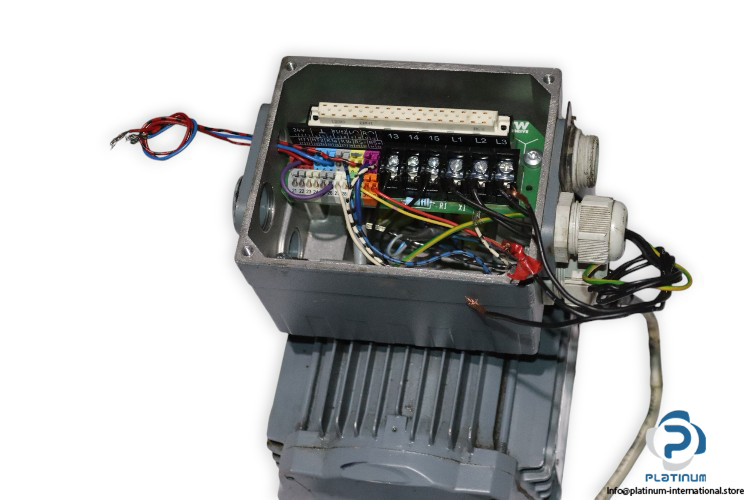

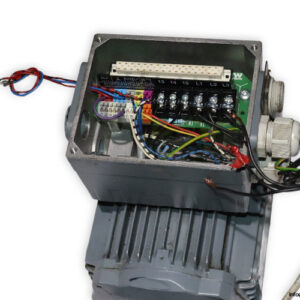

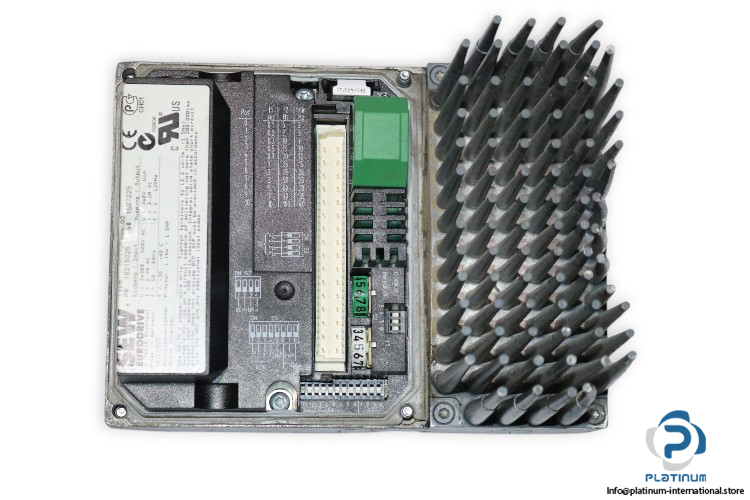

Attached with: SEW MM11D-503-00 MOVIMOT Inverter Drive
Input:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 2.4 A
- Frequency: 50 / 60 Hz
Output:
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 3.2 A
- Frequency: 2 to 120 Hz
This helical-worm gearmotor combined with the SEW MOVIMOT inverter drive delivers precise motion control, adjustable speed ranges, and high efficiency, making it an excellent solution for industrial applications.
