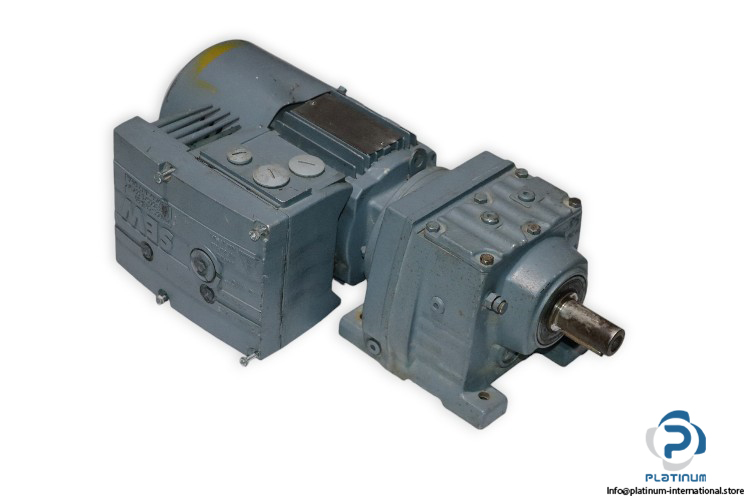

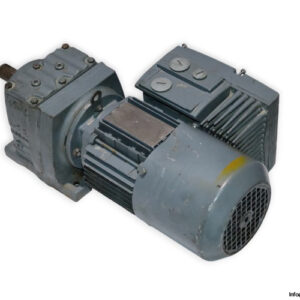

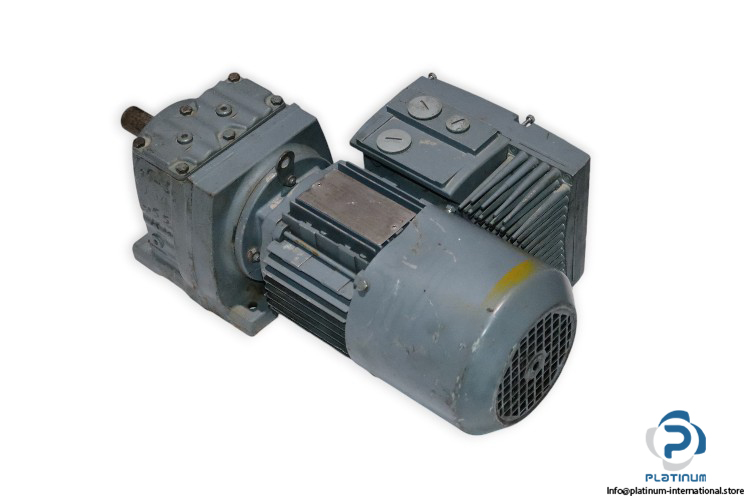

SEW Helical-Gearmotor R37 DT71D4/BMG/MM05/AVSK with MOVIMOT Inverter Drive
The SEW Helical-Gearmotor R37 DT71D4/BMG/MM05/AVSK is a high-performance drive solution designed for industrial applications requiring precise speed control and efficient power transmission. Integrated with the SEW MM05C-503-30 MOVIMOT Inverter Drive, this unit offers exceptional reliability and energy efficiency.
Key Specifications:

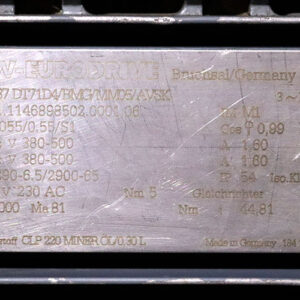

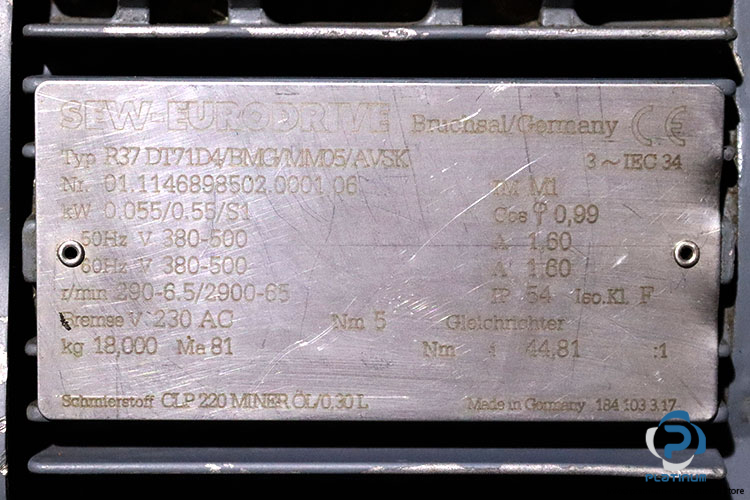

Gearmotor Specifications:
- Manufacturer: SEW
- Type: Helical-Gearmotor
- Model: R37 DT71D4/BMG/MM05/AVSK
- Part No.: 01.1146898502.0001.06
- Gear Unit: R37
- Speed (50Hz) [r/min]: 290 “ 2900
- Output Speed [r/min]: 6.5 – 65
- Total Ratio: 44.81
- Output Torque [Nm]: 81
- Service Factor SEW-FB: 2.50
- Mounting Position: M1
- Lubricant / Volume [l]: CLP 220 Miner.Oil / 0.30
- Output Shaft End: 25 x 50 mm lg.
- Motor Power [kW]: 0.055 / 0.55
- Motor Frequency [Hz]: 100
- Cyclic Duration Factor (S1-S10): S1
- Multi Range-Voltage (50Hz) [V]: 380-500
- Multi Range-Voltage (60Hz) [V]: 380-500
- MM Rated Main Current [A]: 1.60
- MM Rated Output Current [A]: 2.00
- Thermal Class [°C] / Enclosure [IP]: (F) / 54
- Brake Voltage [V] / -Torque [Nm]: 230 AC / 5
- Multi Range-Voltage Brake [V]: 230 AC

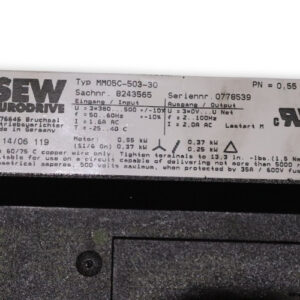

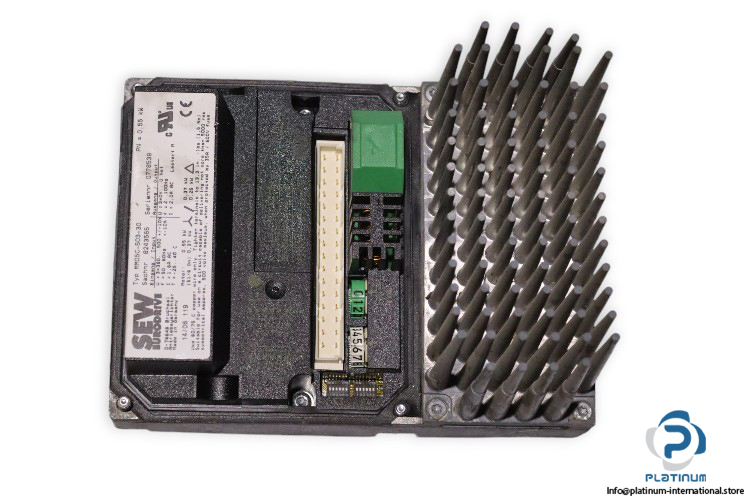

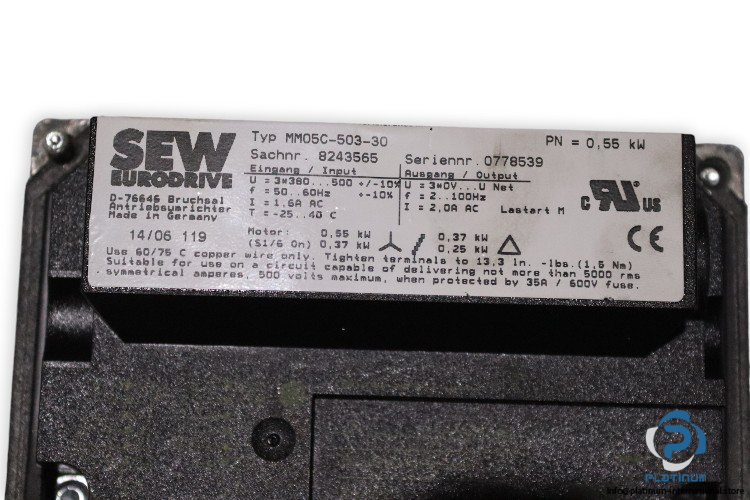

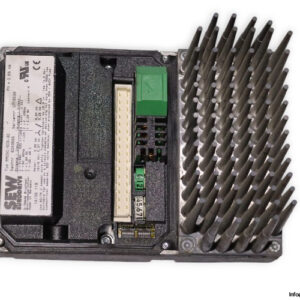

Attached with: SEW MM05C-503-30 MOVIMOT Inverter Drive
Input:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 1.6 A
- Frequency: 50 / 60 Hz
Output:
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 2 A
- Frequency: 2 to 100 Hz
With precise torque delivery, reliable speed control, and robust build quality, the SEW Helical-Gearmotor R37 DT71D4/BMG/MM05/AVSK combined with the MOVIMOT Inverter Drive MM05C-503-30 is the ideal solution for industrial automation and power transmission applications.
