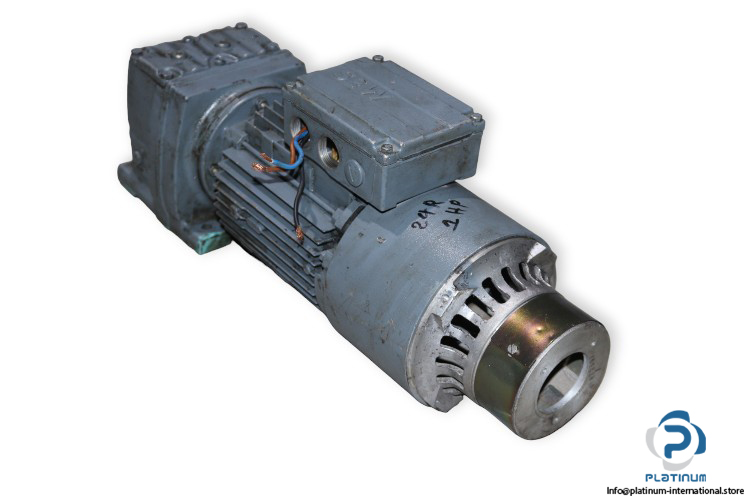

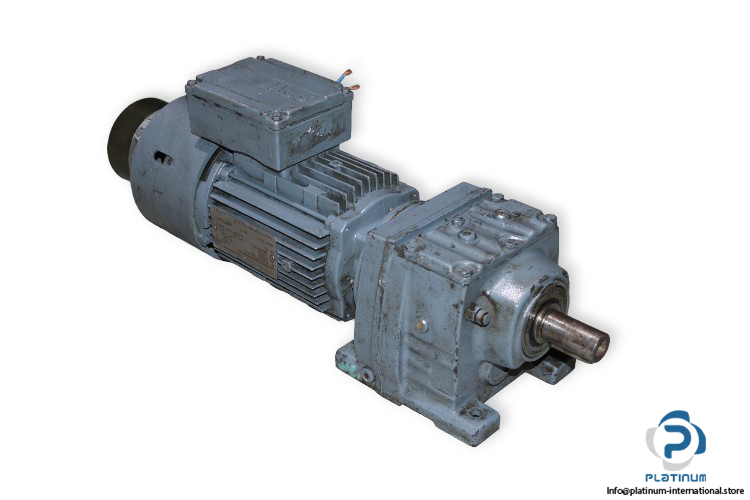

SEW R37 DT80K4/BMG/HR/TH/VS/EV1S HELICAL GEARMOTOR
The SEW R37 DT80K4/BMG/HR/TH/VS/EV1S Helical Gearmotor is designed for high efficiency and reliability in demanding industrial applications. With a total ratio of 55.76 and a motor power of 0.55 kW, this gearmotor ensures precise control and superior torque output for various mechanical systems.
Manufacturer: SEW
Type: Helical Gearmotor

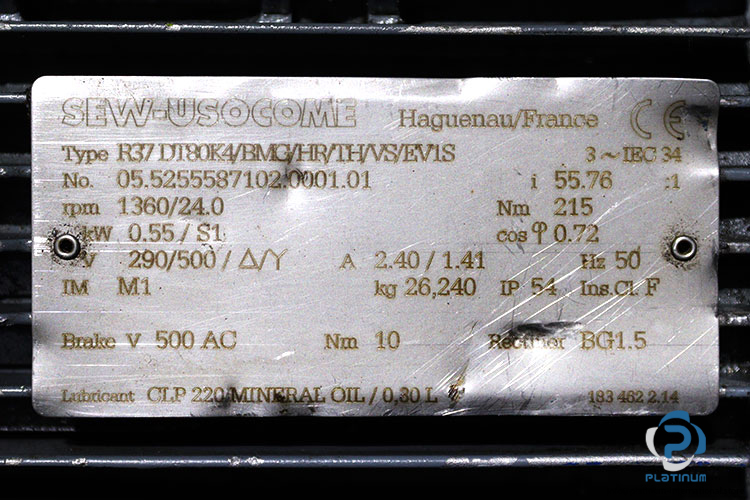

Model: R37 DT80K4/BMG/HR/TH/VS/EV1S
Part No.: 05.5255587102.0001.01
Technical Specifications
- Total Ratio [i]: 55.76
- Mounting Position [IM]: M1
- Motor Power [kW]: 0.55
- Motor Frequency [Hz]: 50
- Cyclic Duration Factor S1-S10: S1
- Motor Voltage [V] / Conn. Type: 290/500 delta/star
- Nominal Current [A]: 2.40 / 1.41
- cos phi: 0.72
- Input Speed [r/min]: 1360
- Output Speed [r/min]: 24.0
- Output Torque [Nm]: 215
- Service Factor SEW-FB: 0.95
- Lubricant Volume [l]: 0.30
- Output Shaft End: 25x50mm lg.
- Lubricant: CLP 220 MINER OIL/0.80 L
- Thermal Class: F
- Protection Class: IP54
- Brake Voltage [V]: 500
- Torque [Nm]: 10
- Multi Range-Voltage Brake [V]: 500 AC
- Brake Rectifier: BG1.5
- Attached with: R37 Helical Gear
