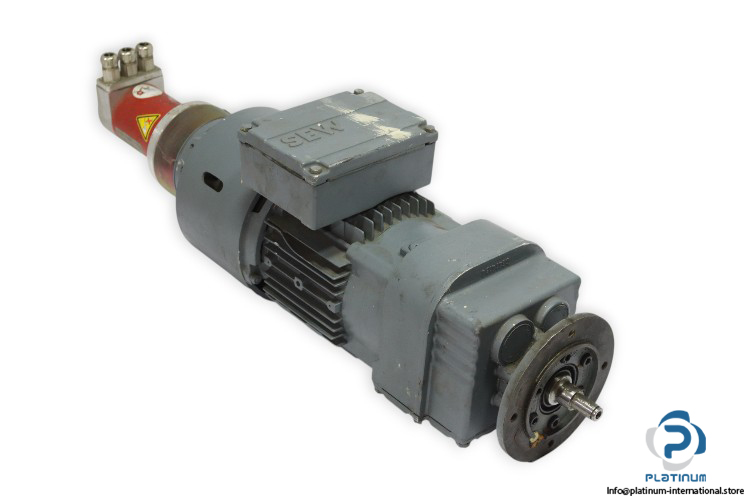

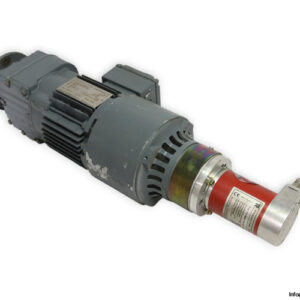

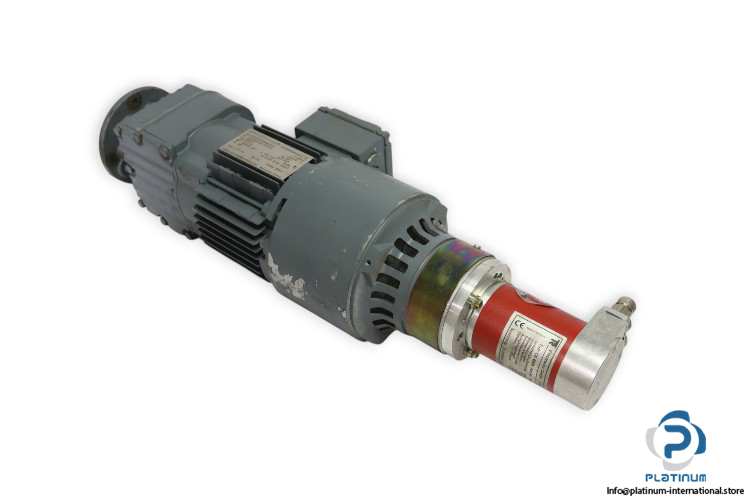

SEW R37 R17 DT71K4/BMG/XV2 Gearmotor with TR Electronic CE 65M Absolute Encoder

The SEW R37 R17 DT71K4/BMG/XV2 is a robust gearmotor engineered for demanding industrial applications. It delivers high torque performance with reliable duty cycle operation and includes a TR Electronic CE 65M Absolute Encoder for precision motion control. Designed for durability, it features IP54 protection, Class F insulation, and mineral oil lubrication.

Manufacturer: SEW
Type: Gearmotor
Model: R37 R17 DT71K4/BMG/XV2
Part No.: 01.3020637001.0001X02
Code: 181 889 4.13

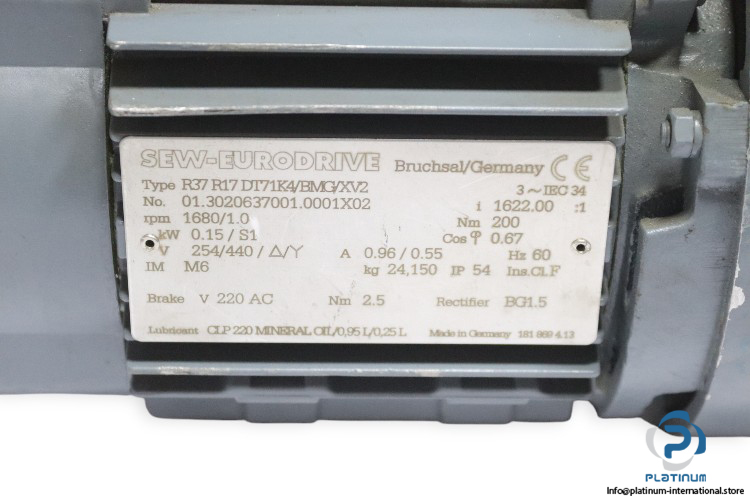

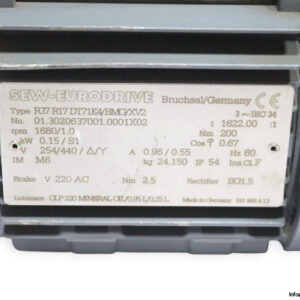

Technical information

• Rated Speed: 1680 / 1.0 rpm
• Power: 0.15 kW (S1 duty)
• Voltage: 254 / 440 V Δ / Y
• Current: 0.96 / 0.55 A
• Frequency: 60 Hz
• Cos φ: 0.67
• Torque: 200 Nm
• IM: M6
• Protection Class: IP54
• Insulation Class: F
• Ratio: 1622
• Brake Voltage: 220 V AC
• Brake Torque: 2.5 Nm
• Rectifier: BG1.5
• Lubrication: CLP 220 Mineral Oil (0.95 L / 0.25 L)

Attachment

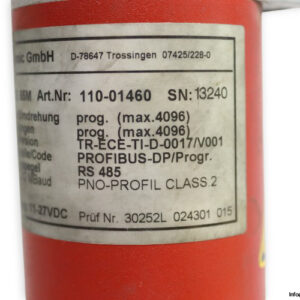

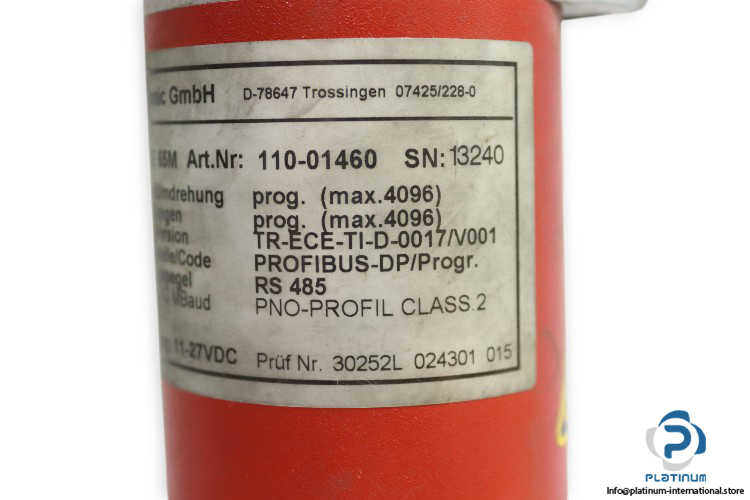

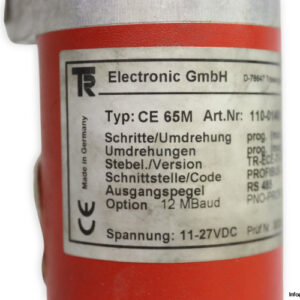

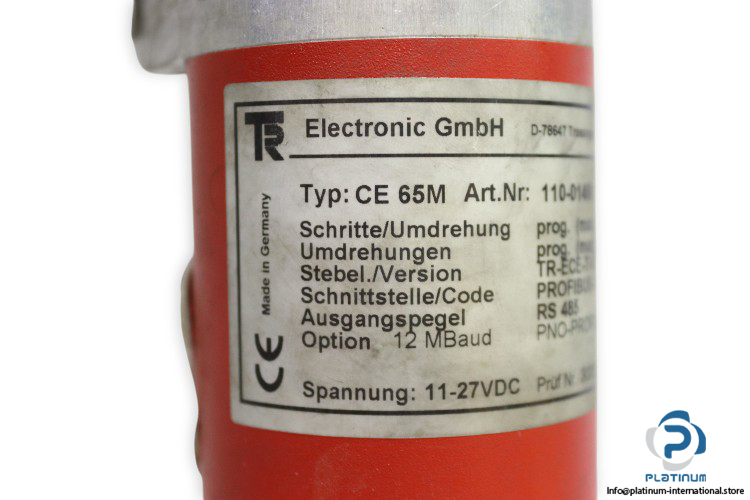

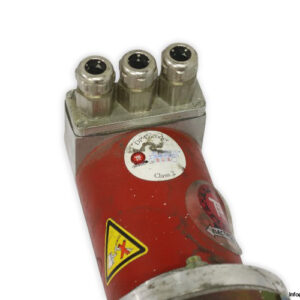

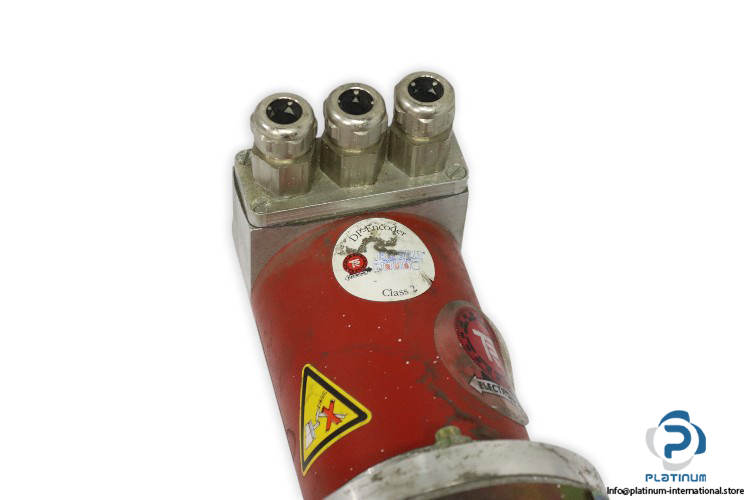

TR Electronic CE 65M Absolute Encoder
Art No.: 110-01460
SN: 13240
Prüf Nr.: 30252L 024301 015
Documentation Ref.: TR-ECE-TI-D-0017/V001

• Steps per Revolution: Programmable (max. 4096)
• Revolutions: Programmable (max. 4096)
• Shaft/Version: CE65M series
• Interface/Code: PROFIBUS-DP / RS485
• Output Level: PNO-PROFIL Class 2
• Option: 12 MBaud communication speed
• Supply Voltage: 11 to 27 VDC
