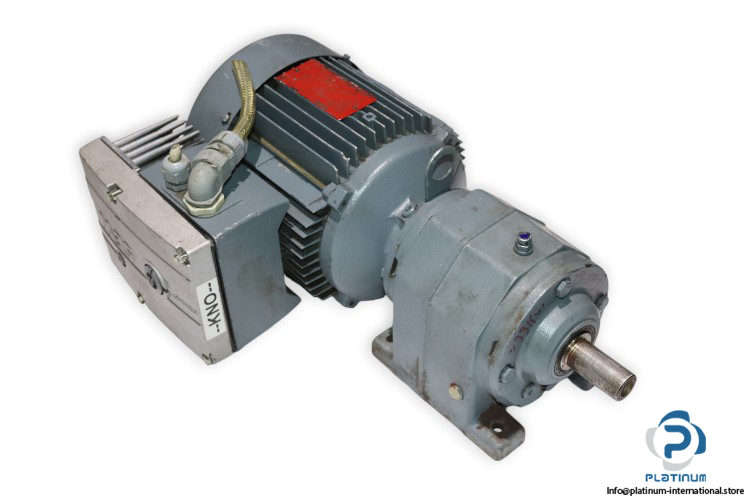

Vector Aandrijftechniek B.V / SEW-Eurodrive R40DT90S-4 Helical Gearmotor
The Vector Aandrijftechniek B.V / SEW-Eurodrive R40DT90S-4 Helical Gearmotor is a powerful and efficient drive solution engineered for high reliability, precision speed control, and long service life. Designed for demanding industrial environments, this gearmotor provides excellent torque output, smooth performance, and energy-efficient operation.

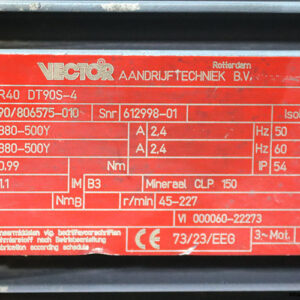

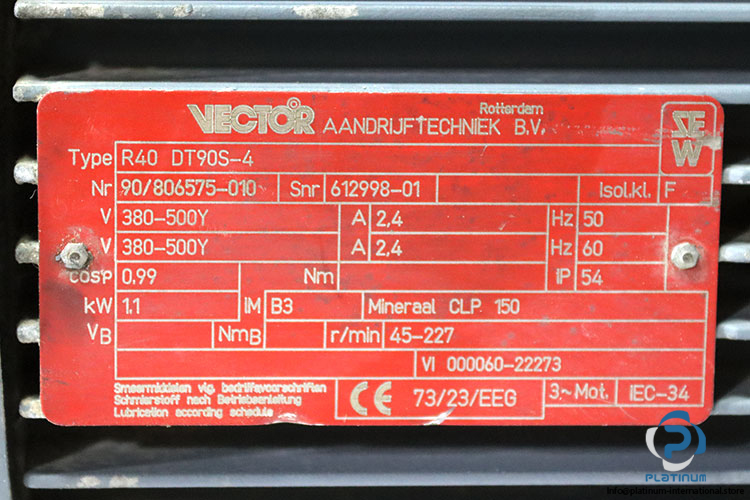

Manufacturer: Vector Aandrijftechniek B.V / SEW-Eurodrive
Type: Helical Gearmotor
Model: R40DT90S-4
Part No.: 90/806575-010
Serial No.: 612998-01
Code: 000060-22273
Technical Information
- Gear Unit: R40
- Speed [r/min]: 45 to 227
- Mounting Position: IM B3
- Lubricant: CLP 150
- Motor Power [kW]: 1.1
- Multi Range-Voltage 50/60 Hz [V]: 380 to 500
- Nominal Current [A]: 2.4
- Thermal Class [°C]/Enclosure [IP]: F / 54
- Standard: IEC-34, CE 37/23/EEG
Attachment

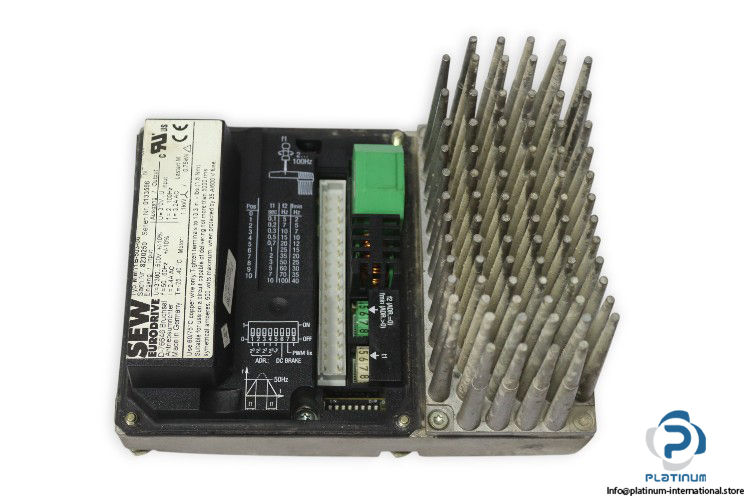

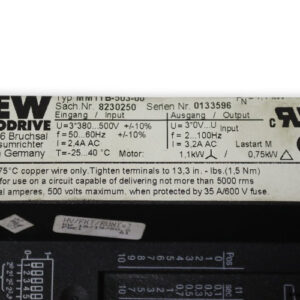

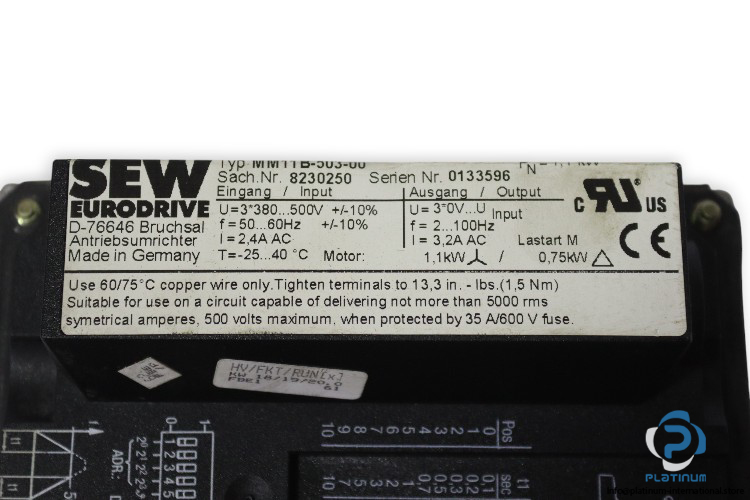

- Model: SEW MM11B-503-00 MOVIMOT Inverter Drive
- Part No.: 8230250
- Serial No.: 0133596
Electrical Specifications
Input:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 2.4 A
- Frequency: 50 / 60 Hz
Output:
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 3.2 A
- Frequency: 2 to 100 Hz
- Power: 1.1 kW (Y), 0.75 kW (Δ)
- Ambient Temperature: -25 to 40°C
- Torque: 1.5 Nm
This advanced helical gearmotor with integrated MOVIMOT inverter offers precise control, smooth acceleration, and efficient torque delivery ” ideal for conveyor systems, automation equipment, and heavy-duty industrial drives. The combination of SEW-Eurodrive engineering and Vector Aandrijftechniek quality ensures high mechanical efficiency, reduced maintenance, and reliable performance under continuous operation.
