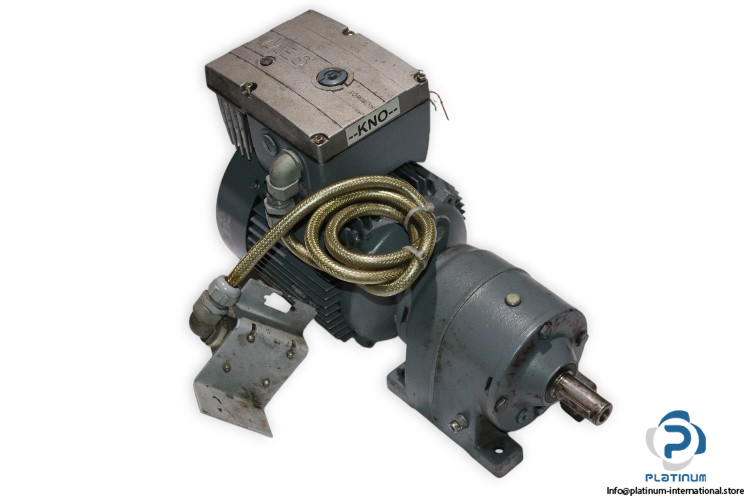

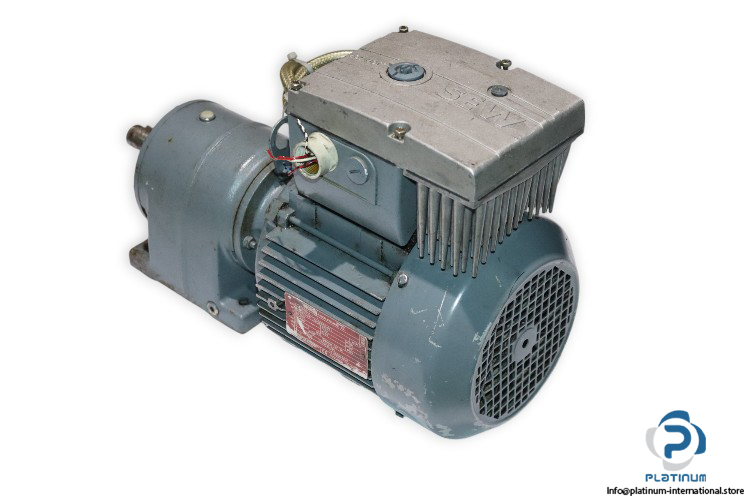

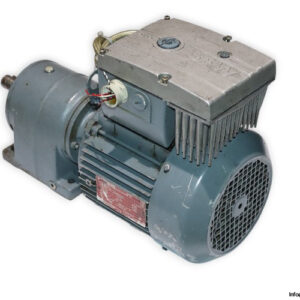

SEW R40 DT90S-4 HELICAL GEAR MOTOR

The SEW R40 DT90S-4 Helical Gearmotor offers efficient and reliable performance for a wide range of industrial applications. With a motor power of 1.1 kW, a wide speed range of 53 – 264 rpm, and versatile mounting and voltage options, this gearmotor is designed for demanding environments.

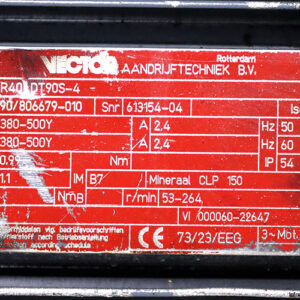

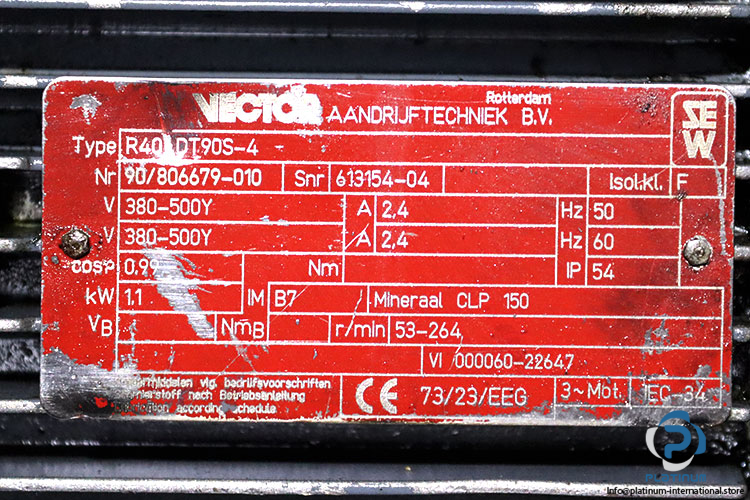

Manufacturer: SEW

Type: HELICAL GEAR MOTOR

Model: R40 DT90S-4

Part No: 90/806679-010

Technical Specifications

• Gear Unit: R40
• Speed [r/min]: 53 – 264
• Mounting Position: IMB7
• Lubricant: CLP 150
• Motor Power [kW]: 1.1
• Multi Range-Voltage 50Hz [V]: 380-500
• Nominal Current [A]: 2.4
• Multi Range-Voltage 60Hz [V]: 380-500
• Nominal Current [A]: 2.4
• Thermal Class [°C]/Enclosure [IP]: F / 54

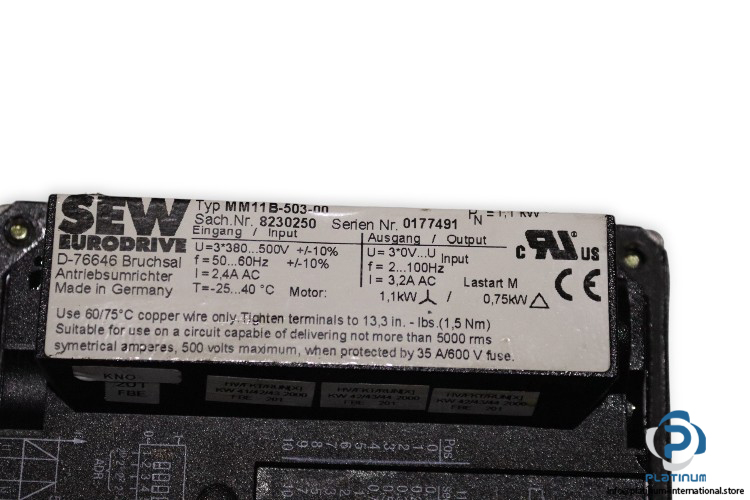

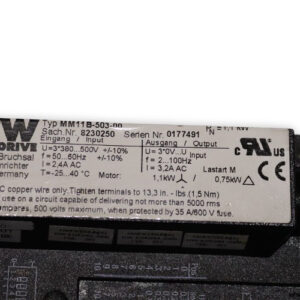

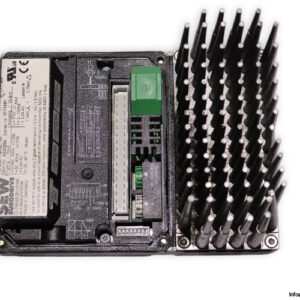

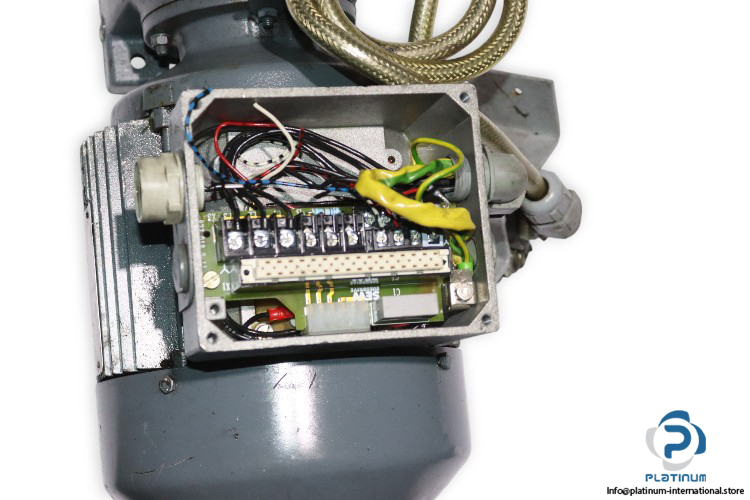

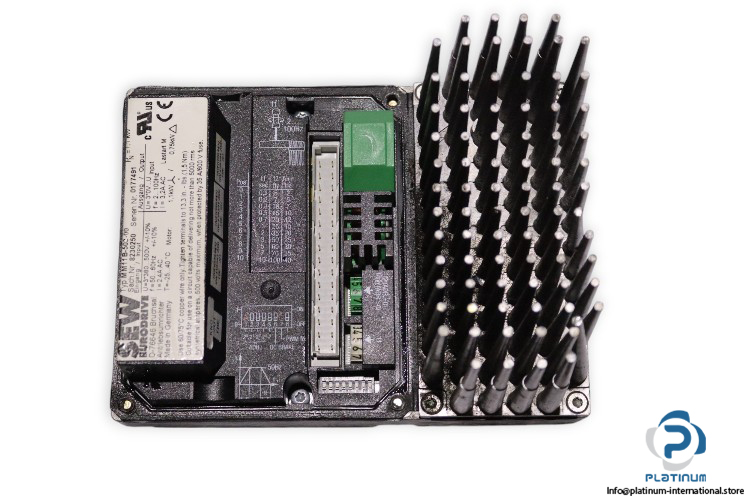

Attached with SEW MM11B-503-00 MOVIMOT INVERTER DRIVE

Input:

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 2.4 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 3.2 A
• Frequency: 2 to 100 Hz
