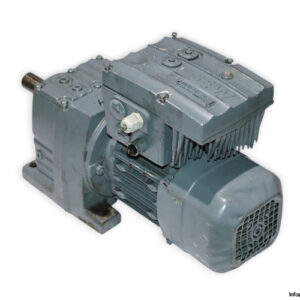

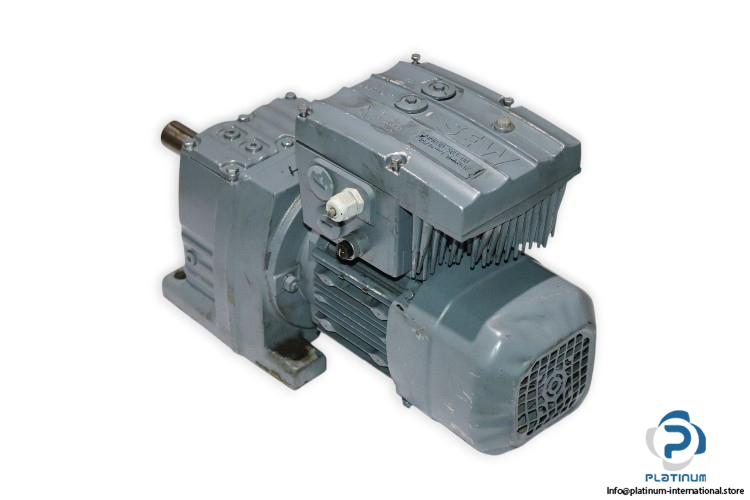

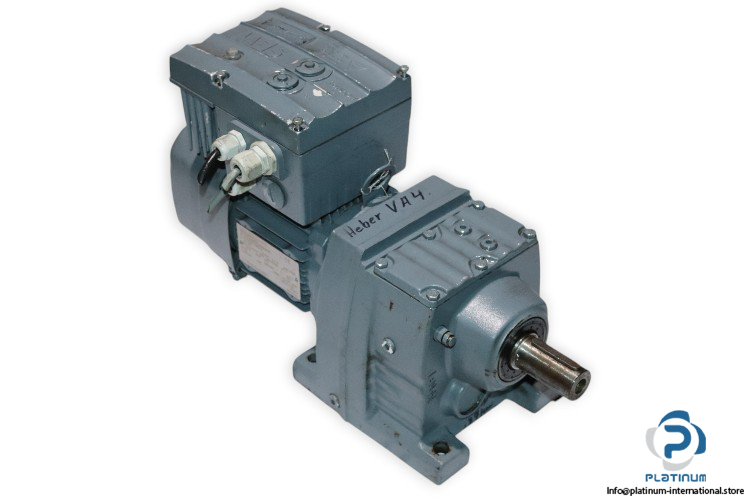

SEW R47 DRS71S4BE05HR HELICAL-GEARMOTOR

The SEW R47 DRS71S4BE05HR Helical Gearmotor is designed for efficient and reliable performance in industrial applications. It offers high torque and variable speed options, with an output torque of 37 Nm and a total ratio of 14.56. This gearmotor is coupled with a MOVIMOT Inverter Drive for optimized control and performance.

Manufacturer: SEW

Type: HELICAL-GEARMOTOR

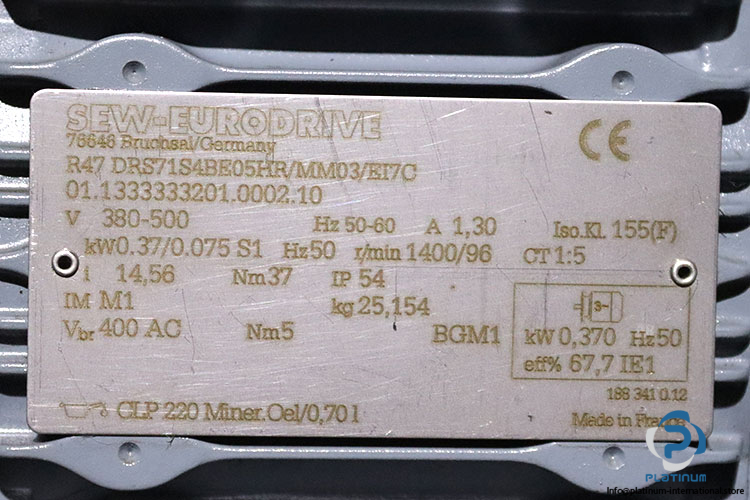

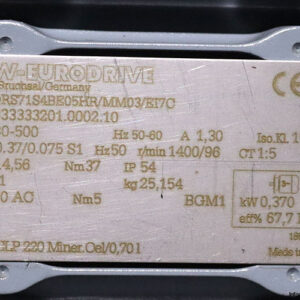

Model: R47 DRS71S4BE05HR/MM03/EI7C

Part No.: 01.1333333201.0002.10

Technical Specifications

• Gear Unit: R47
• Speed [r/min]: 1400 / 96
• Total Ratio: 14.56 / infinite
• Output Torque [Nm]: 37
• Service Factor SEW-FB: 7.20
• Mounting Position: M1
• Lubricant / Volume [l]: CLP 220 Miner.Oil / 0.70
• Output Shaft End: 30x60mm lg.
• Motor Power [kW]: 0.37 / 0.075
• Motor Frequency [Hz]: 50
• Cyclic Duration Factor S1-S10: S1
• Motor Voltage [V]: 380-500
• Motor Supply Frequency [Hz]: 50
• MM Rated Main Current [A]: 1.30
• MM Rated O/P Current [A]: 1.60
• Brake Voltage [V] / Torque [Nm]: 400 AC / 5
• Brake Rectifier: BGM1

Attached with

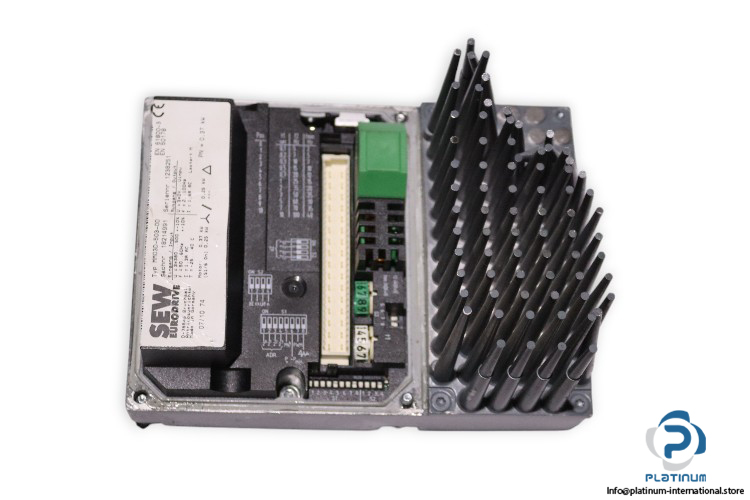

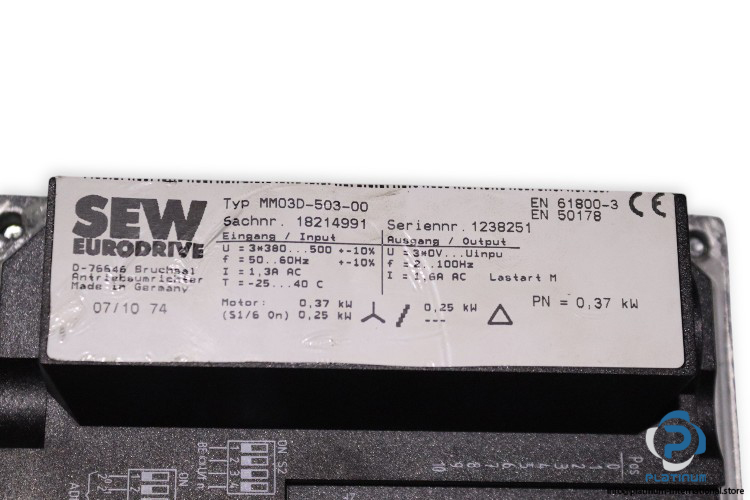

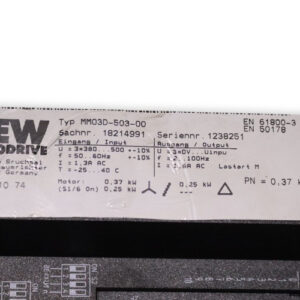

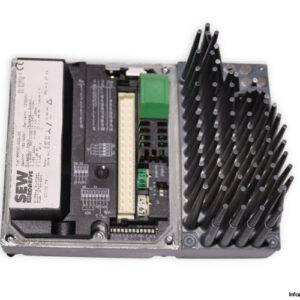

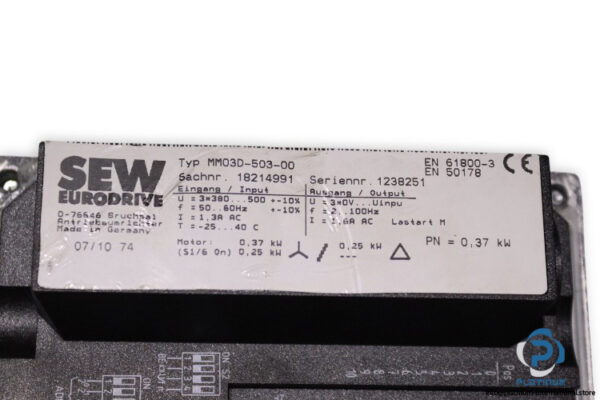

• SEW MM03D-503-00 MOVIMOT INVERTER DRIVE

Input Specifications

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.3 A
• Frequency: 50 / 60 Hz

Output Specifications

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 1.6 A
• Frequency: 2 to 100 Hz
