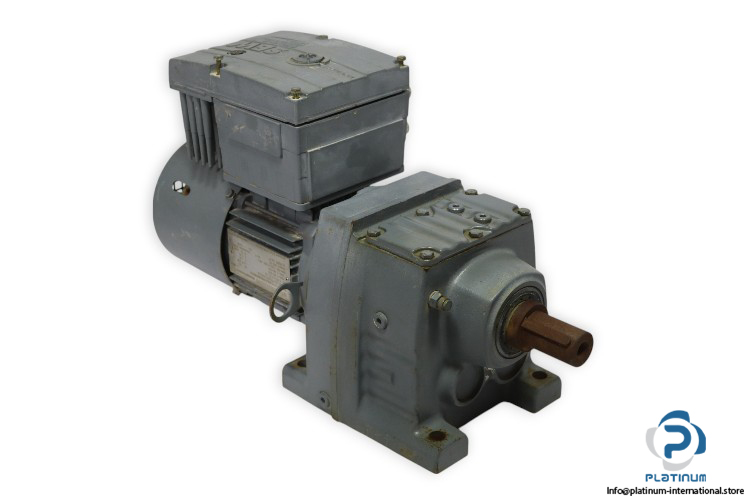

SEW R47 DT71D4/BMG/HR/MM03/RA1A GEAR MOTOR WITH MOVIMOT INVERTER DRIVE
The SEW R47 DT71D4/BMG/HR/MM03/RA1A Gear Motor is a high-performance, durable drive system designed for industrial applications. Equipped with an integrated SEW MM03C-503-00 MOVIMOT Inverter Drive, it offers precise control, high torque, and energy efficiency for continuous operation.
Manufacturer: SEW
Type: Gear Motor
Model: R47 DT71D4/BMG/HR/MM03/RA1A
Part No.: 01.3217702901.0003.03

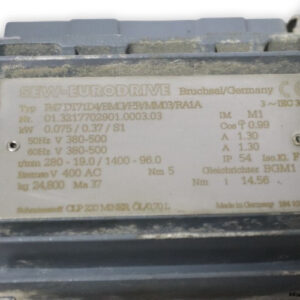

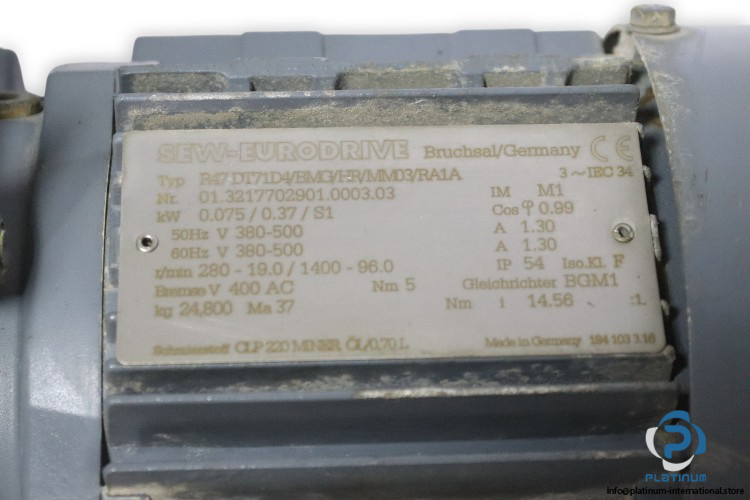

Technical Information
- Ratio: 14.56
- Power: 0.075 / 0.37 kW
- Voltage: 380 to 500 V
- Frequency: 50 / 60 Hz
- Speed: 280 to 19.0 / 1400 to 96.0 rpm
- Duty Cycle: S1
- Brake Voltage: 400 V AC
- Torque (Nm): 5
- Current (A): 1.30
- Power Factor (Cos φ): 0.99
- Protection Class: IP54
- Insulation Class: F
- Gear Unit Type: BGM1
- Lubrication: CLP 220 Mineral Oil, 0.70 L
- Standard: IEC 34

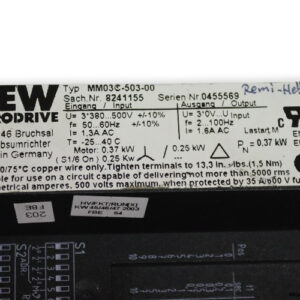

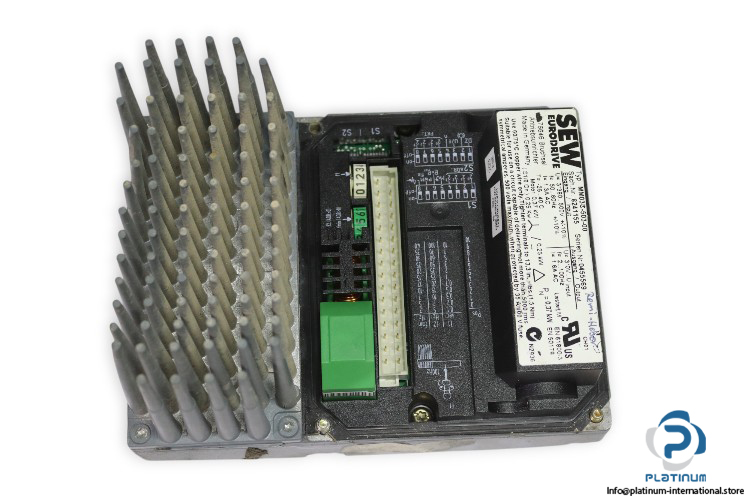

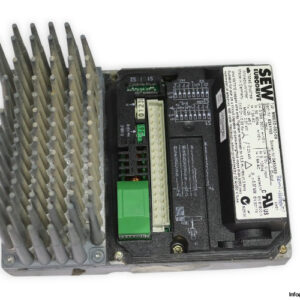

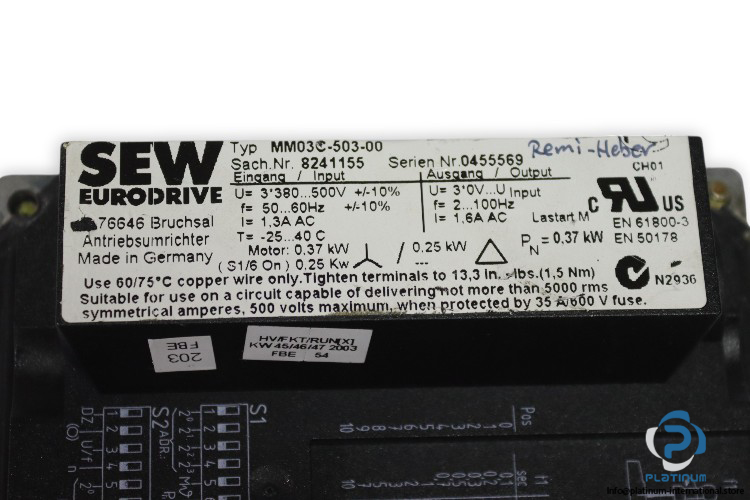

Integrated MOVIMOT Inverter Drive
- Model: SEW MM03C-503-00
- Sach. Nr.: 8241155
- Serial Nr.: 0455569
Input Specifications
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 1.3 A
- Frequency: 50 / 60 Hz
- Temperature: -25 to 40 °C
- Motor: 0.37 / 0.25 kW
Output Specifications
- Rated Voltage: 3-Phase 0 to (380 to 500 V AC)
- Rated Current: 1.6 A
- Frequency: 2 to 100 Hz
- Nominal Power: 0.37 kW
Additional Information
- Wire Type: Use only copper wire rated for 60°C or 75°C
- Terminal Tightening Torque: 13.3 in-lb (1.5 Nm)
- Fuse Protection: 35 A, 600 V fuse
- Suitable for use: On circuits delivering ‰¤ 5000 RMS
