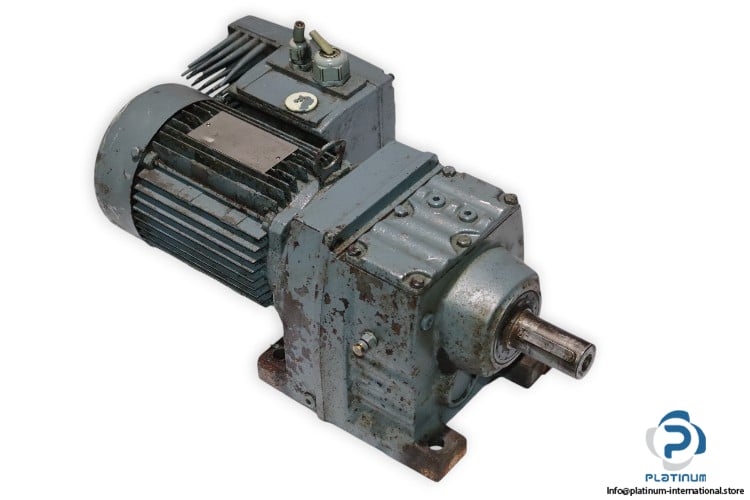

SEW HELICAL GEARMOTOR
The SEW Helical Gearmotor (Model: R47DT80N4/MM07/BW1, Part No. 01.3077698202.0001.03) is designed for high-performance applications where efficiency and reliability are key. With a total ratio of 26.74 and output torque of 137 Nm, this gearmotor provides precise control and robust performance. It is paired with the SEW MM05C-503-00 MOVIMOT Inverter Drive for optimized motor control and energy savings.
Manufacturer: SEW
Type: Helical Gearmotor

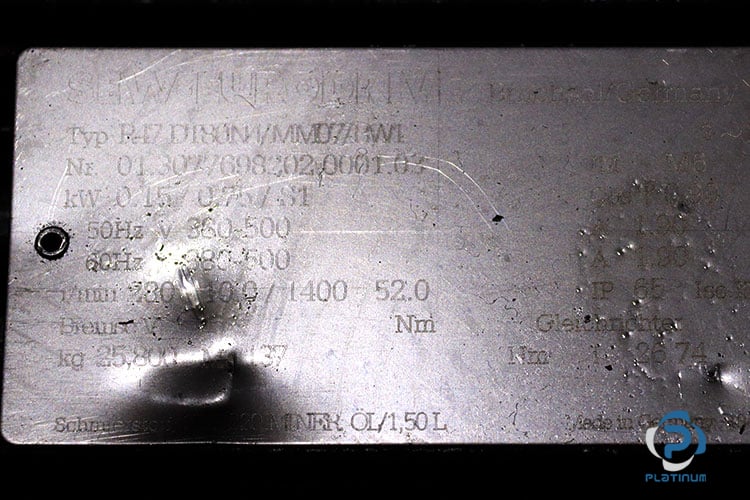

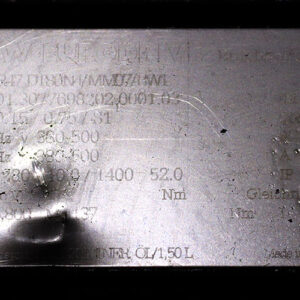

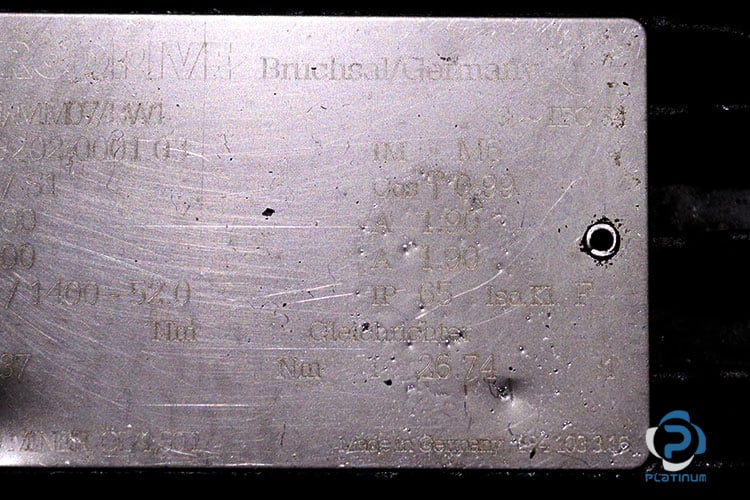

Model: R47DT80N4/MM07/BW1
Part No.: 01.3077698202.0001.03
Technical Specifications
- Gear Unit: R47
- Input Speed [r/min]: 280 – 1400
- Output Speed [r/min]: 10.0 – 52.0
- Total Ratio: 26.74
- Mounting Position: M6
- Output Torque [Nm]: 137
- Service Factor SEW-FB: 2.20
- Lubricant / Volume [l]: CLP 220 1.50
- Output Shaft End: 30x60mm lg
- Motor Power [kW]: 0.15 / 0.75
- Cyclic Duration Factor: S1-S10: S1
- Motor Frequency [Hz]: 50
- Multi Range-Voltage 50Hz [V]: 380-500
- Multi Range-Voltage 60Hz [V]: 380-500
- MM Rated Main Current [A]: 1.90
- MM Rated O/P Current [A]: 2.50
- Thermal Class [°C] / Enclosure [IP]: (F) / 65

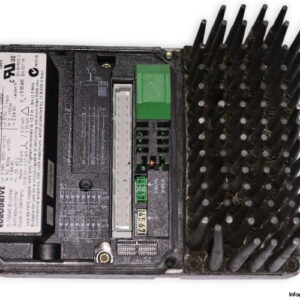

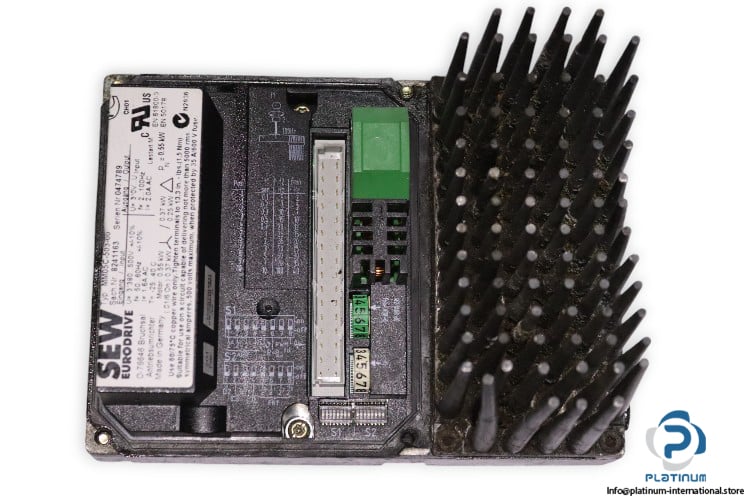

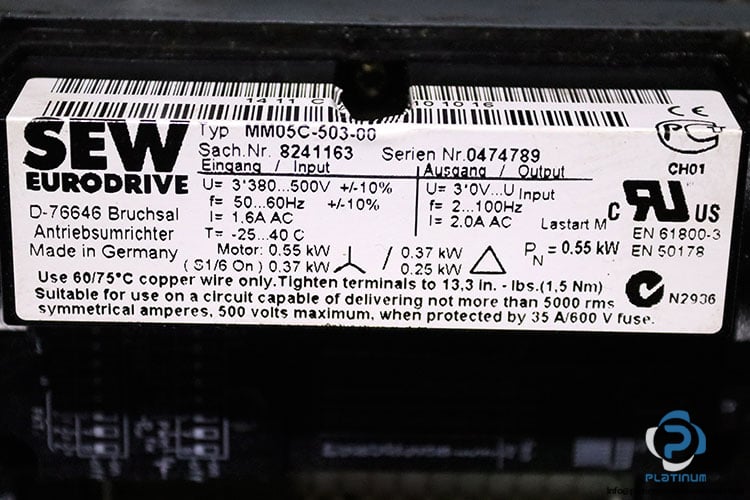

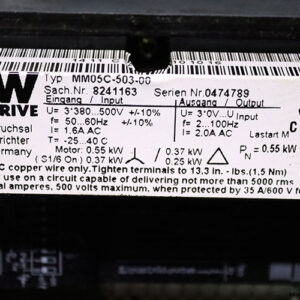

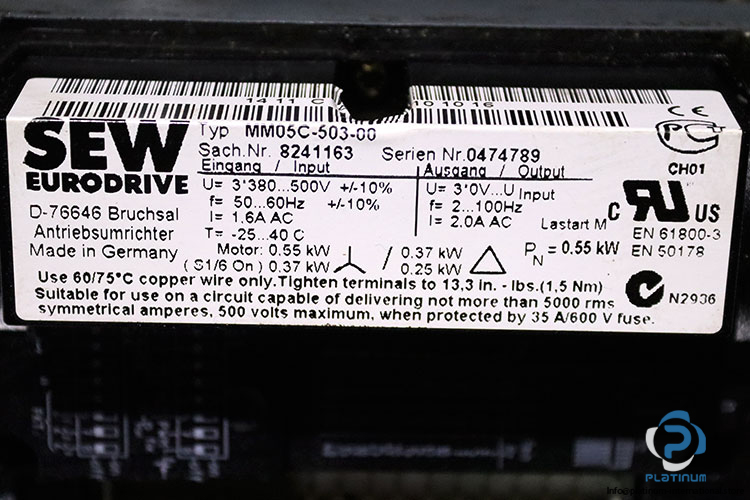

Attached with: SEW MM05C-503-00 MOVIMOT INVERTER DRIVE
Input Specifications:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 1.6 A
- Frequency: 50 / 60 Hz
Output Specifications:
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 2 A
- Frequency: 2 / 100 Hz
