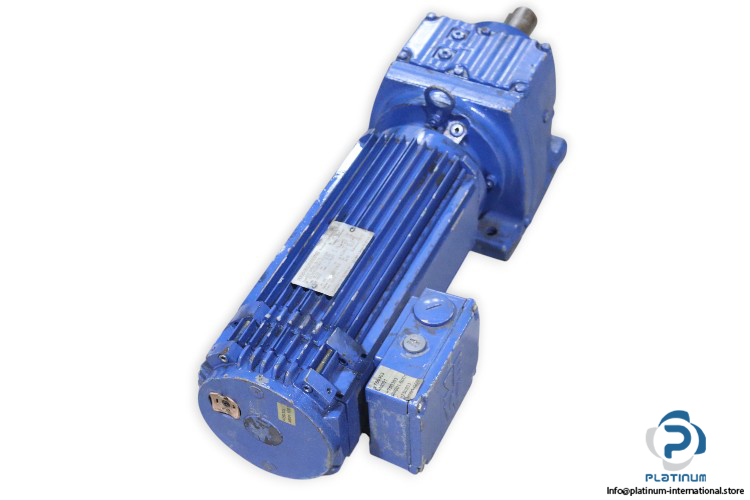

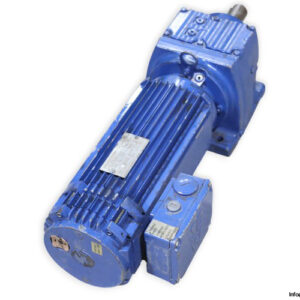

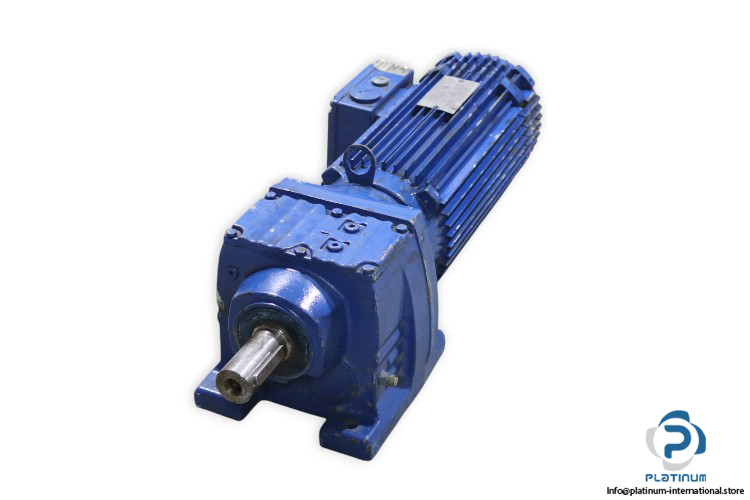

SEW R57 DY90L/B/TH Gear Motor
The SEW R57 DY90L/B/TH is a high-performance gear motor designed for reliable and efficient operation in industrial applications. With robust torque output, high protection class, and continuous duty capability, it delivers durability and efficiency in demanding environments. Integrated gearbox and braking system provide precise motion control and safe operation.
Manufacturer: SEW
Type: Gear Motor
Model: R57 DY90L/B/TH
Part No.: 01.3016284901.0001.01

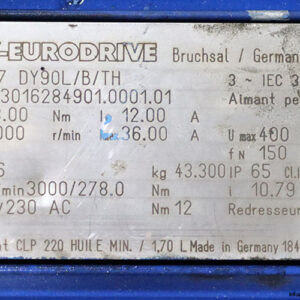

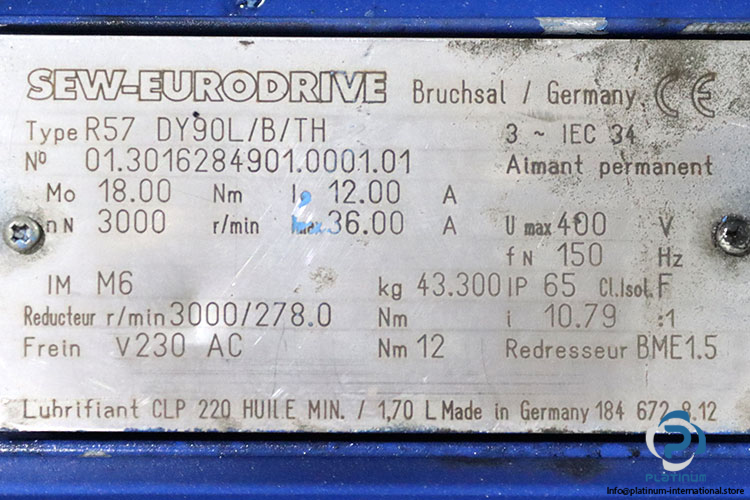

Technical information
- Size: 90 L
- Torque (Mo): 18.00 Nm
- Current: 12 A, max 36 A
- Speed (nN): 3000 rpm
- Frequency: 150 Hz
- Voltage: 400 V (max)
- Insulation Class: F
- Protection Class: IP65
- Duty: S1 continuous
Gearbox Data
- Reducer Speed: 3000 / 278.0 rpm
- Gear Ratio (i): 10.79
Brake
- Voltage: 230 V AC
- Brake Torque: 12 Nm
- Rectifier: BME1.5
Lubrication
- Type: CLP 220 Mineral Oil
- Quantity: 1.70 L
