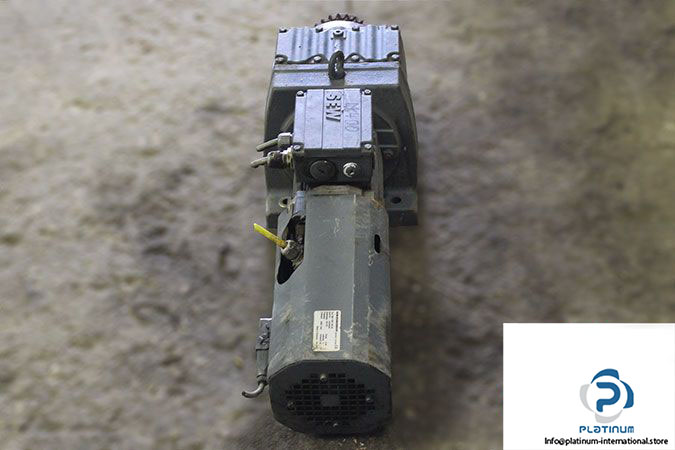

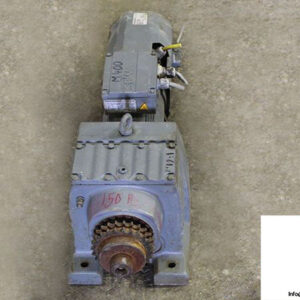

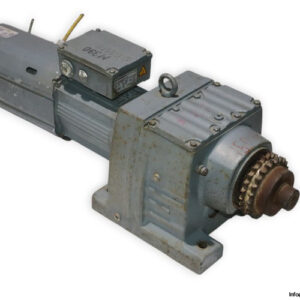

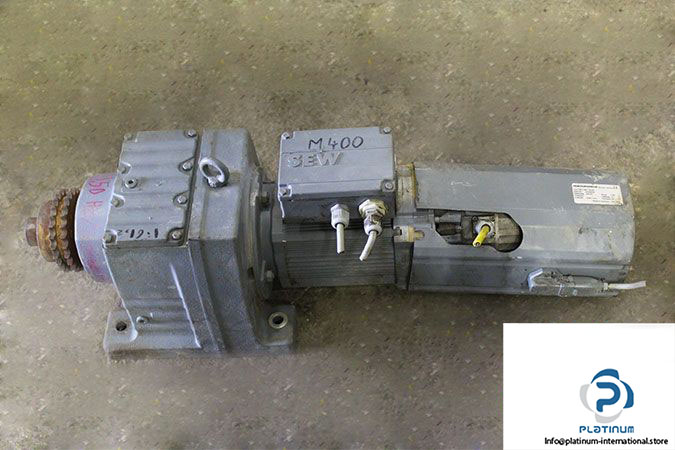

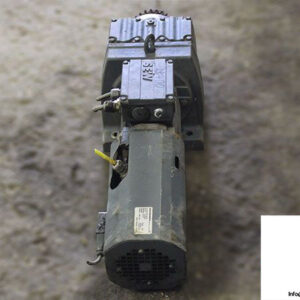

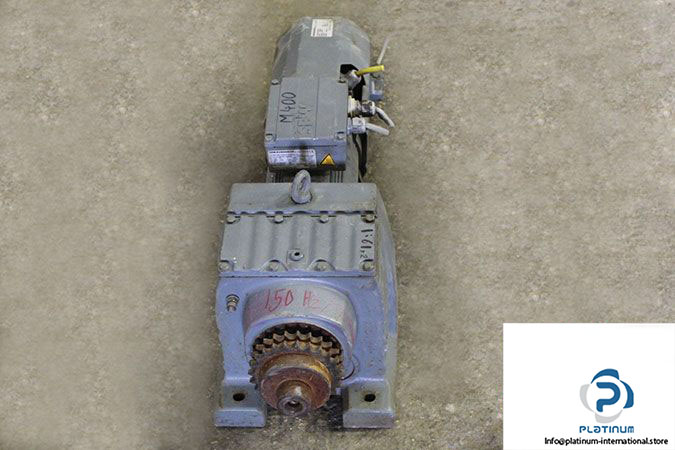

SEW R67 CM71S/BR/TF/VR/RH1L/KK HELICAL GEAR SERVOMOTOR

The SEW R67 CM71S/BR/TF/VR/RH1L/KK Helical Gear Servomotor is designed for high-performance applications requiring precision control. With a rated speed of 3000 min-1, stall torque of 7.30 Nm, and a ratio of 61.26:1, this motor offers excellent reliability and efficiency in demanding environments.

Manufacturer: SEW

Type: Helical Gear Servomotor

Model: R67 CM71S/BR/TF/VR/RH1L/KK

Part No: 01.1112281401.0002.05

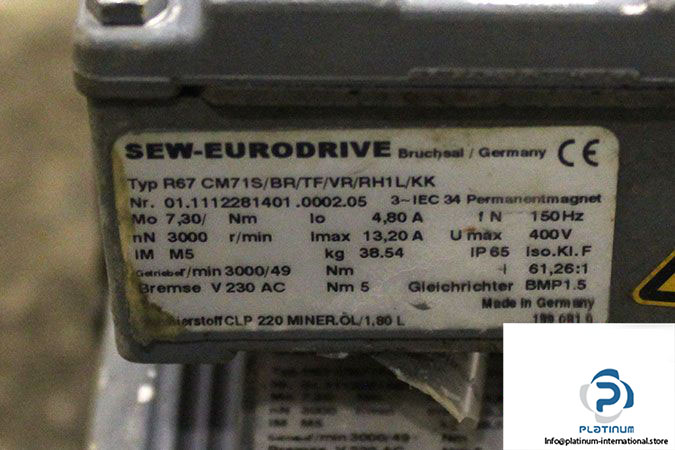

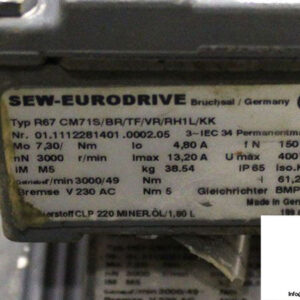

Technical Specifications

• Gear Unit: R67
• Max. Voltage: 400 V AC
• Max. Current: 13.20 A
• Stall Current: 4.80 A
• Rated Speed: 3000 min-1
• Rated Frequency: 150 Hz
• Stall Torque: 7.30 Nm
• Ratio: 61.26:1
• Voltage Brake: 230 V AC
• Torque Brake: 5 Nm
• Insulation Class: F
• Protection Class: IP65

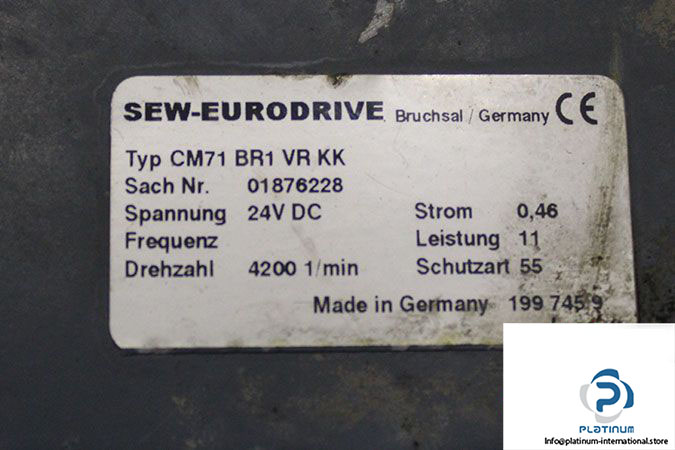

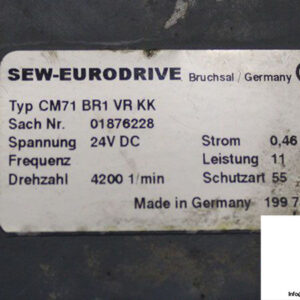

Attachment: SEW CM71 BR1 VR KK SYNCHRONOUS SERVOMOTOR

• Voltage: 24 VDC
• Rotational Speed: 4200 min-1
• Protection Class: IP55
