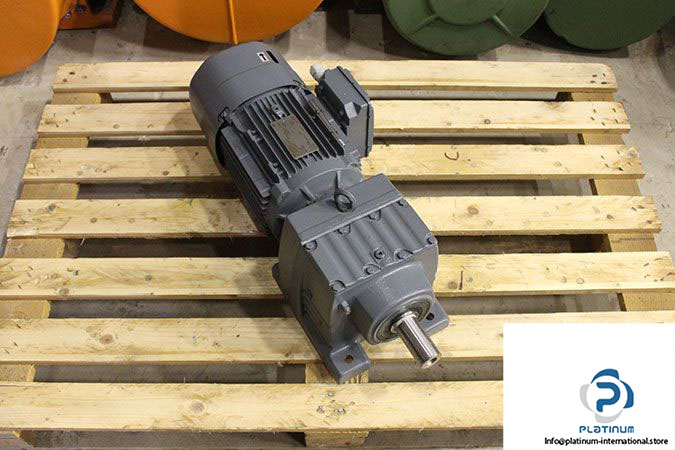

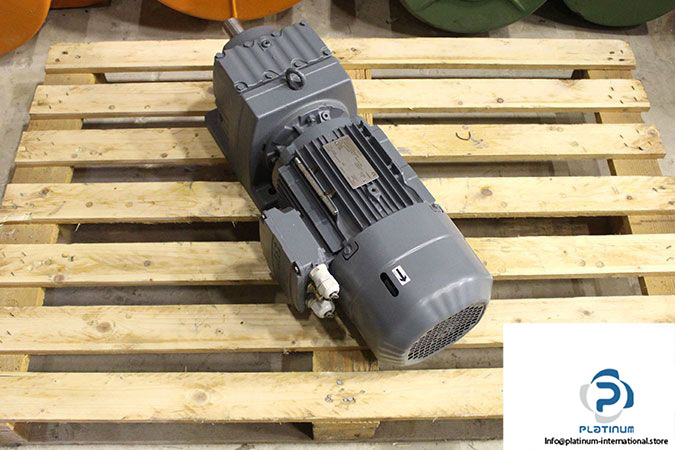

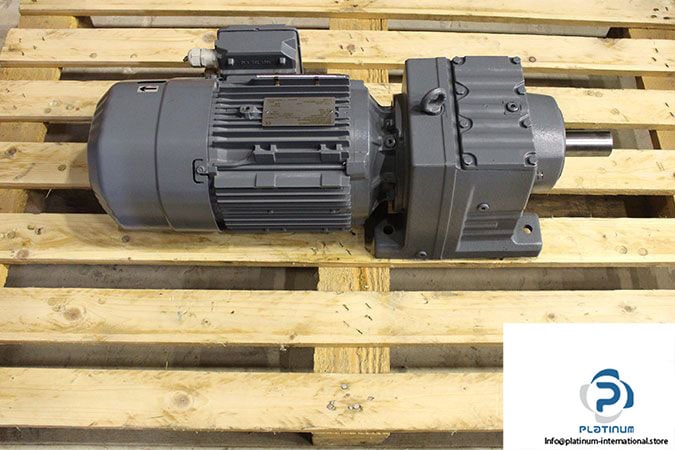

SEW-EURODRIVE R67DRN100LS4/BE5HR/TF Helical Gear Motor

The SEW-EURODRIVE R67DRN100LS4/BE5HR/TF is a high-efficiency helical gear motor engineered for precision, durability, and energy-saving performance. Combining robust torque output with reliable braking and thermal protection, it delivers optimal power transmission in industrial automation systems.

Manufacturer: SEW-EURODRIVE
Type: Helical Gear Motor
Model: R67DRN100LS4/BE5HR/TF

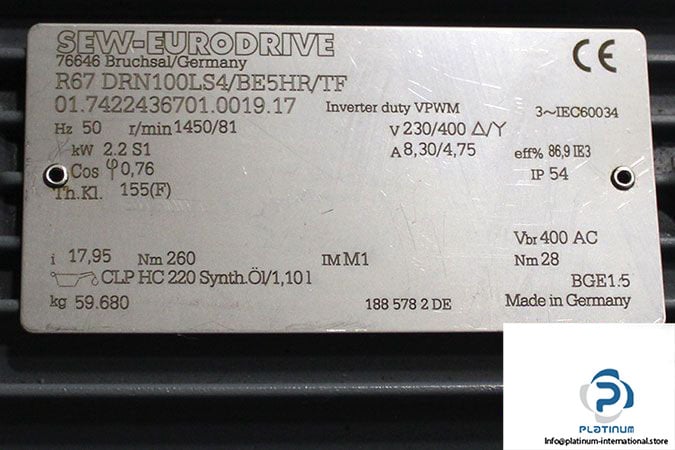

Serial Number: 01.7422436701.0019.17

Technical information

• Speed [r/min]: 1450 / 81
• Total Ratio [i]: 17.95 / Finite
• Ma Max [Nm]: 590
• Output Torque [Nm]: 260
• Service Factor SEW-FB: 2.3
• Mounting Position: M1
• Lubricant / Volume [L]: CLP HC 220 Synth. Oil / 1.10 L
• Output Shaft End: 35 × 70 mm
• Motor Power [kW]: 2.2
• Motor Frequency [Hz]: 50
• Cyclic Duration Factor: S1
• Motor Voltage [V] / Connection Type: 230/400 V Δ/Y (Delta/Star)
• Rated Current [A]: 8.30 / 4.75
• Cos Phi: 0.76
• Thermal Class [°C] / Enclosure [IP]: 155 (F) / IP54
• International Efficiency Class: IE3
• Efficiency at 50/75/100 % Pn [%]: 86.4 / 87.5 / 86.9
• Brake: BE5
• Brake Release: HR = Manual Brake Release “ Automatic Re-Engaging
• Position Brake Release [°]: 303
• Brake Voltage [V] / Torque [Nm]: 400 AC / 28 Nm
• Brake Rectifier: BGE1.5
• Motor Protection: TF = PTC Temperature Sensor
• Terminal Box: Aluminum lower part with tapped holes 2× M32 + 1× M16
