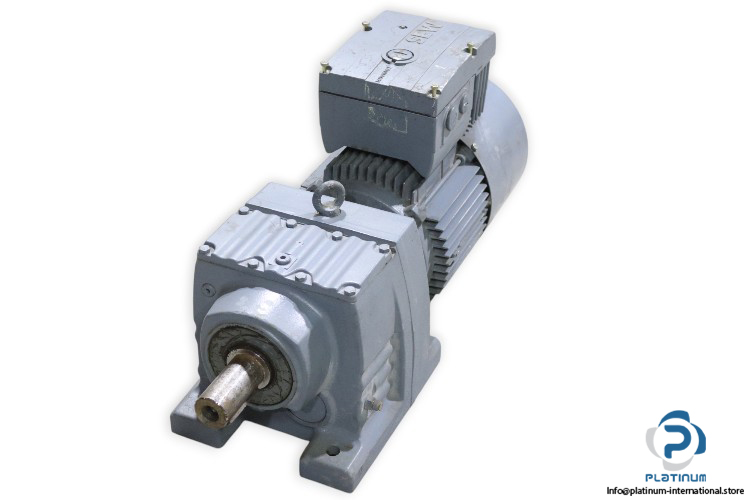

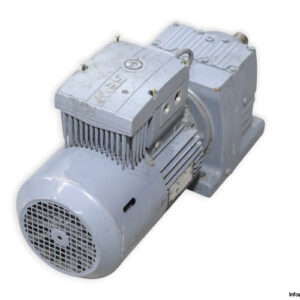

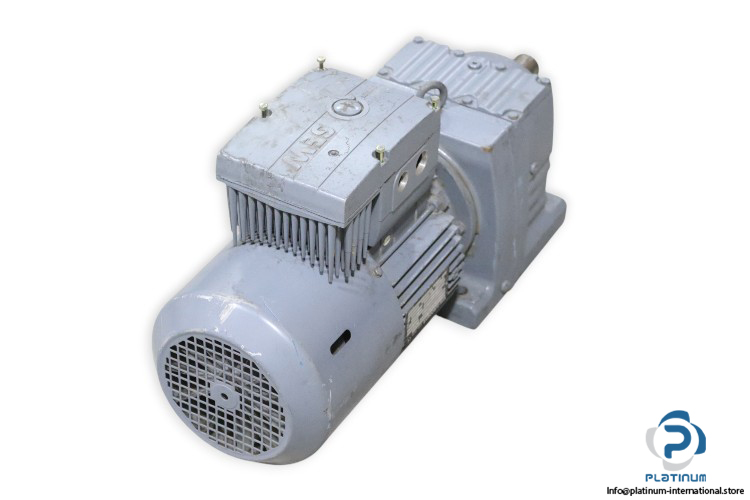

SEW R67DT90S4BMG-MM15 Gearmotor With Inverter Drive

The SEW R67DT90S4BMG-MM15 is a compact gearmotor with short-length motor design, engineered for reliable performance in industrial applications. Featuring a 1.5 kW DT series AC motor, foot-mounted construction, and integrated brake system, it offers high efficiency, safety, and flexibility. This unit comes with a SEW-EURODRIVE MM15B-503-00 inverter drive for precise motor control and optimized operation.

Manufacturer: SEW
Type: Gearmotor (Short Length Motor)
Model: R67DT90S4BMG-MM15
Part No.: 950226182.01.01

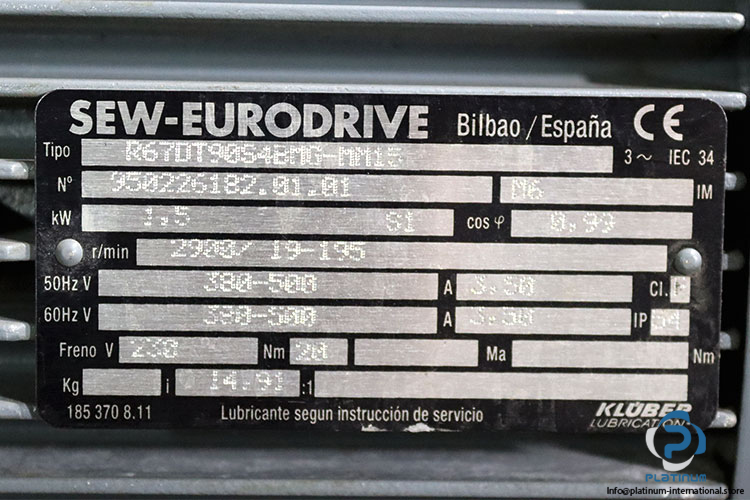

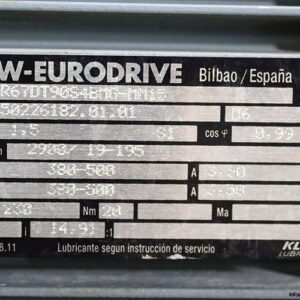

Technical information (Gearmotor)

• IEC Motor Frame Size: 90
• No of Poles: 4
• Gear Unit Size: 67
• Series: DT series AC motor
• Mounting: Foot-mounted design M6
• Power: 1.5 kW (S1 duty)
• Speed: 930 / 19 “ 195 r/min (geared output)
• Voltage (50 Hz): 380 to 500 V
• Voltage (60 Hz): 380 to 500 V
• Current: 3.30 A
• Frequency: 50/60 Hz
• Power Factor (Cos φ): 0.99
• Protection: IP54
• Class: F
• Brake: V 230 DC / 20 Nm
• Ratio: 14.91

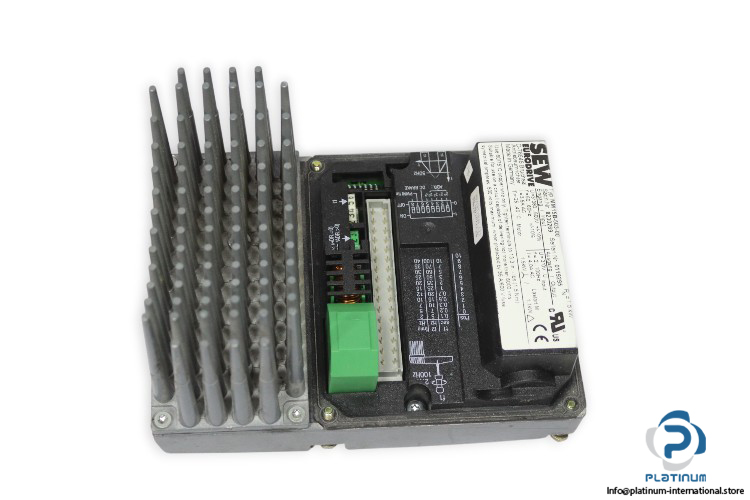

Attachment: Inverter Drive

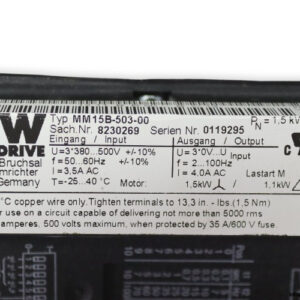

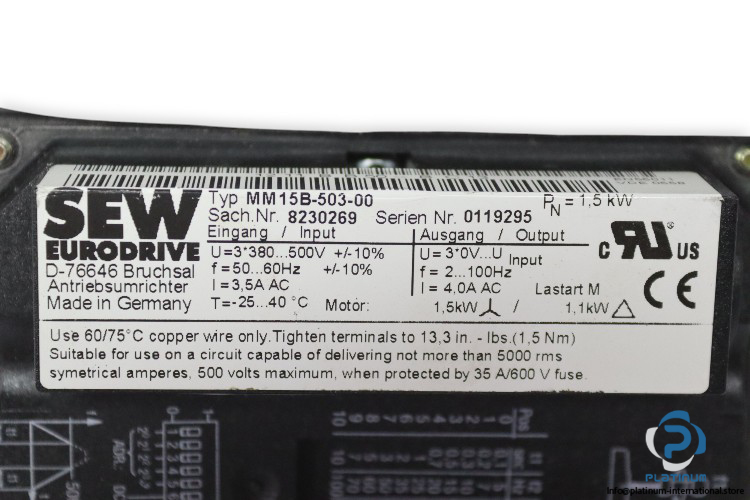

• Model: SEW-EURODRIVE MM15B-503-00
• Sach No.: 8230269
• Serial No.: 0119295
• Rated Motor Power: 1.5 kW
• Input: 3 × 380 to 500 V AC, 50/60 Hz, 3.5 A
• Output: 3 × 0 to U V AC, 2 to 100 Hz, 4.0 A AC
• Ambient Temperature: -25 / +40 °C
• Motor: 1.5 kW (Start: 1.1 kW)
• Notes: Use 60/75 °C copper wire only, terminal torque 1.5 Nm, protect with 35 A/600 V fuse
