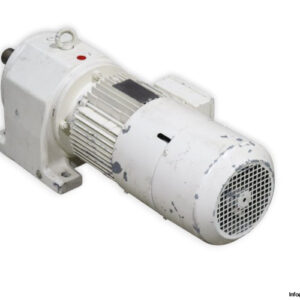

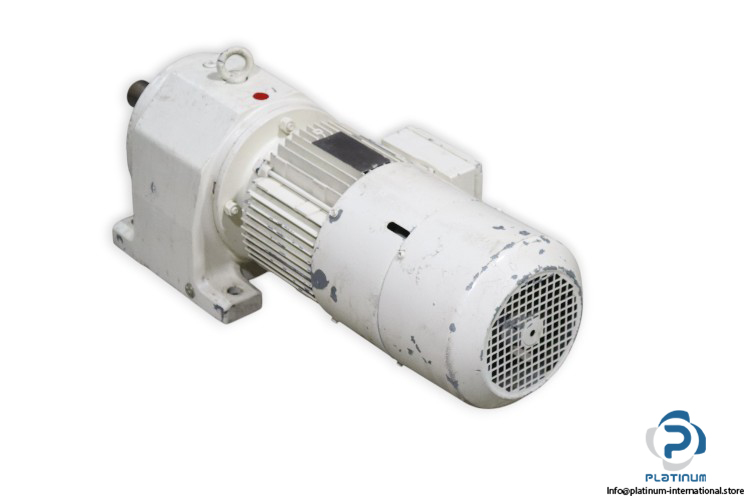

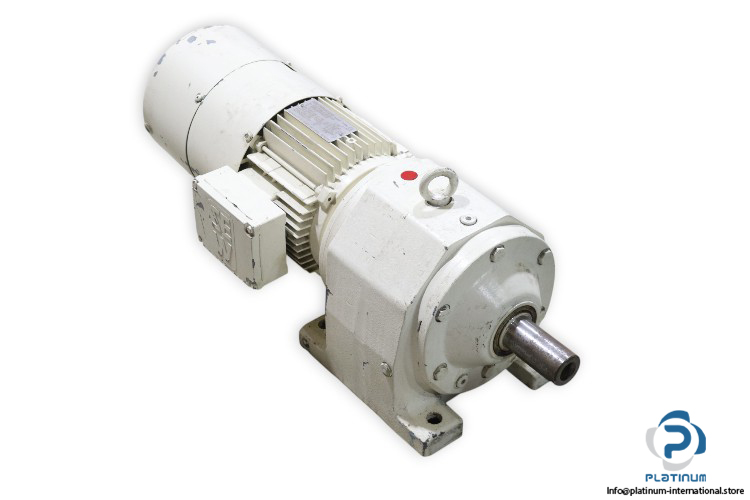

SEW R702 DT90L4BMG/TF/IG1 Gearmotor

The SEW R702 DT90L4BMG/TF/IG1 is a powerful and reliable gearmotor engineered for industrial drive applications. With a robust gearbox, integrated brake rectifier, and high efficiency at both 50 Hz and 60 Hz operations, it provides dependable performance and long service life in demanding environments.

Manufacturer: SEW
Type: Gearmotor
Model: R702 DT90L4BMG/TF/IG1
Part No.: 3002242001.0001.97

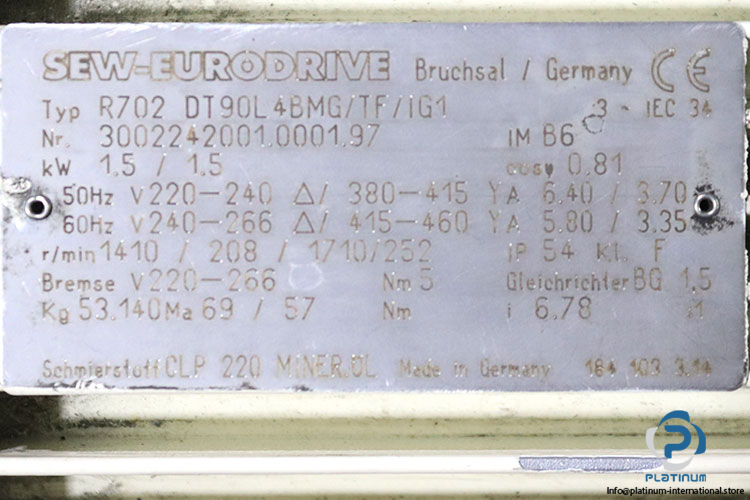

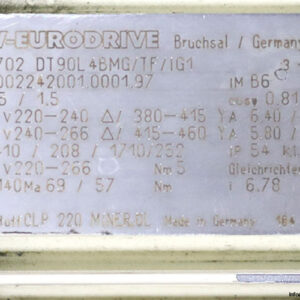

Technical information

• Power: 1.5 kW (50 Hz and 60 Hz)
• Frequency / Connection:
  • 50 Hz: 220 “ 240 V (Δ) / 380 “ 415 V (Y)
  • 60 Hz: 240 “ 266 V (Δ) / 415 “ 460 V (Y)
• Current:
  • 50 Hz: Δ 6.40 A / Y 3.70 A
  • 60 Hz: Δ 5.80 A / Y 3.35 A
• Speed:
  • 50 Hz: 1410 / 208 rpm
  • 60 Hz: 1710 / 252 rpm
• Power Factor (Cos φ): 0.81
• Brake Voltage: 220 “ 266 V
• Protection Class: IP54
• Insulation Class: F
• Mounting: IM B6
• Gearbox Ratio (i): 6.78
• Rectifier Type: BG 1.5 (brake rectifier)
• Lubricant: CLP 220 Mineral Oil
• Standard Compliance: IEC 34
