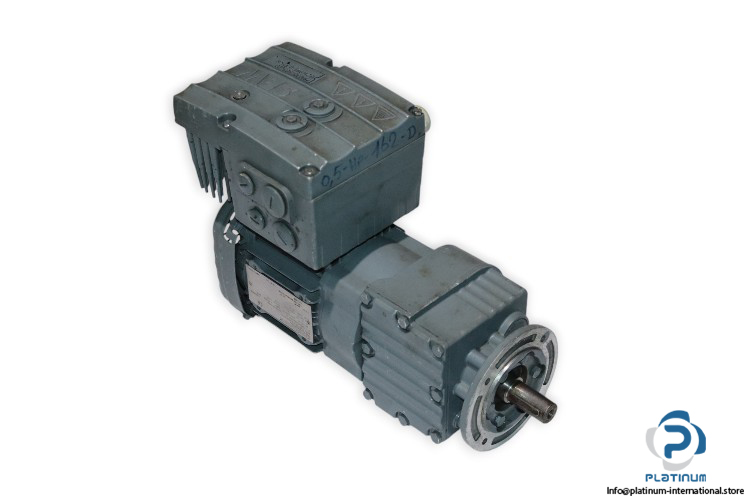

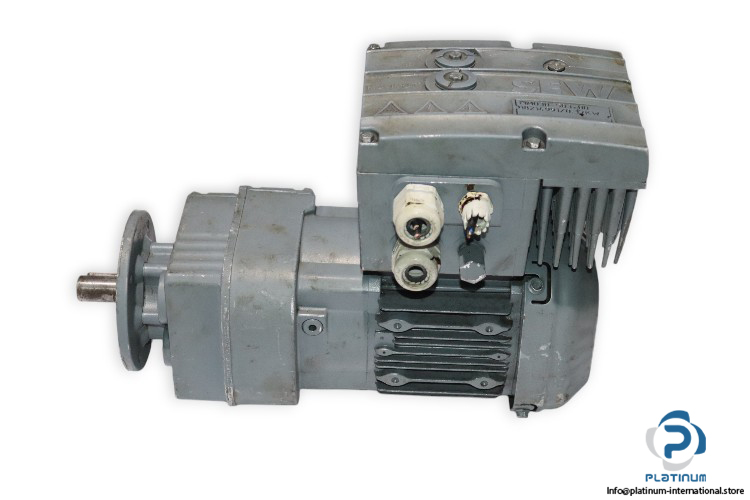

SEW Helical-Gearmotor RF17 DRS71S4/MM03/AVR1 with MOVIMOT Inverter Drive
The SEW RF17 DRS71S4/MM03/AVR1 Helical-Gearmotor is a high-performance geared motor solution designed for industrial applications requiring precision, durability, and efficiency. Equipped with a MOVIMOT MM03D-503-00 inverter drive, it offers variable speed control and robust torque capabilities.

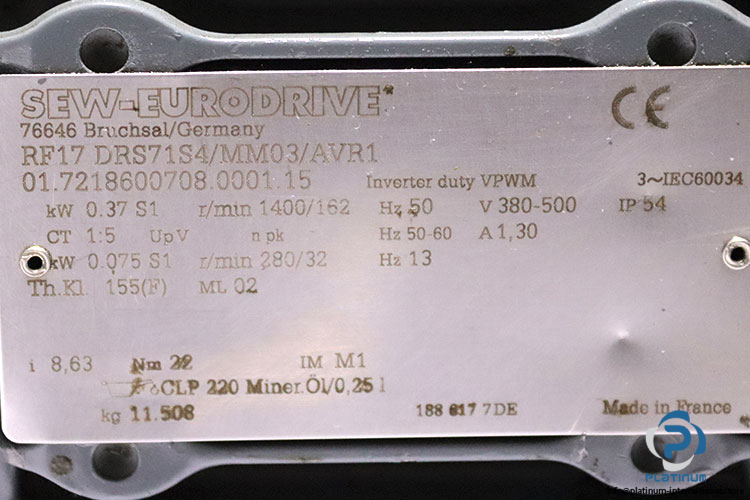

Gearmotor Specifications:
- Manufacturer: SEW
- Type: Helical-Gearmotor
- Model: RF17 DRS71S4/MM03/AVR1
- Part No.: 01.7218600708.0001.15
- Gear Unit: RF17
- Speed (50 Hz) [r/min]: 1400 – 280
- Output Speed [r/min]: 162 – 32
- Total Ratio: 8.63 / Infinite
- Ma Max [Nm]: 72
- Output Torque [Nm]: 22
- Service Factor (SEW-FB): 3.30
- Mounting Position: M1
- Lubricant / Volume [L]: CLP 220 Mineral Oil / 0.25
- Output Shaft End: 20×40 mm lg.
- Flange Diameter: 120 mm
- Motor Power [kW]: 0.37 / 0.075
- Motor Frequency [Hz]: 50
- Cyclic Duration Factor (S1-S10): S1
- Motor Voltage [V]: 380-500
- Line Frequency [Hz]: 50-60
- MM Rated Main Current [A]: 1.30
- MM Rated Output Current [A]: 1.60
- Thermal Class / Enclosure Rating: 155(F) / IP54

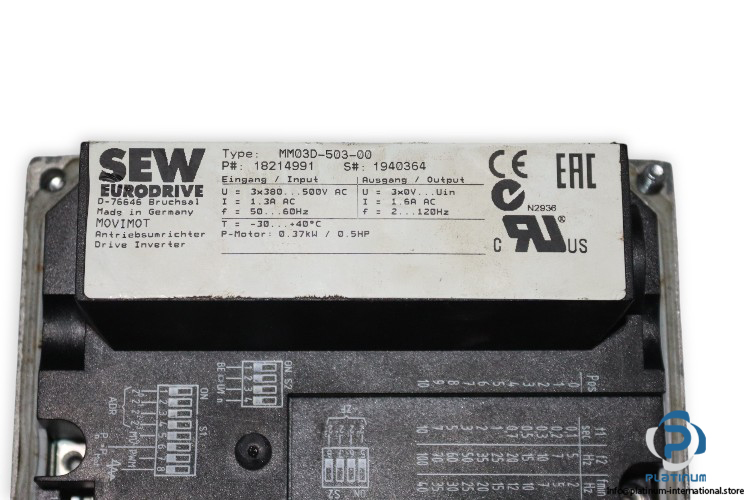

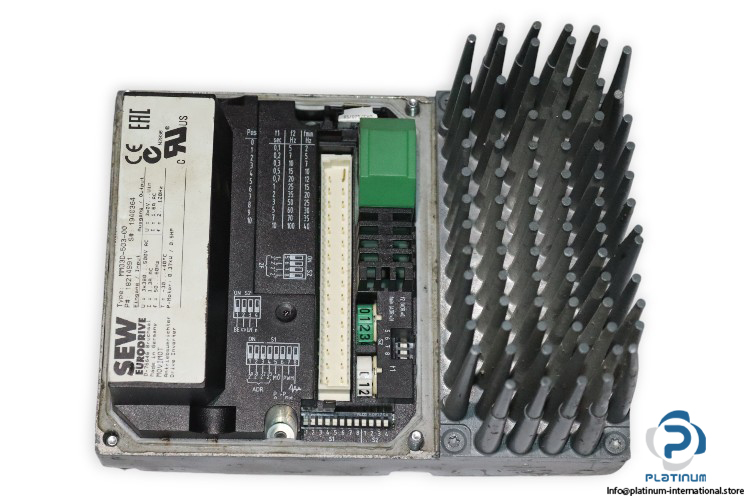

Integrated MOVIMOT Inverter Drive (MM03D-503-00) Specifications:
Input:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 1.3 A
- Frequency: 50 / 60 Hz
Output:
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 1.6 A
- Frequency Range: 2 to 120 Hz
The SEW RF17 DRS71S4/MM03/AVR1 helical-gearmotor with MOVIMOT inverter drive provides exceptional speed control and performance, making it an excellent choice for industrial automation and material handling applications.
