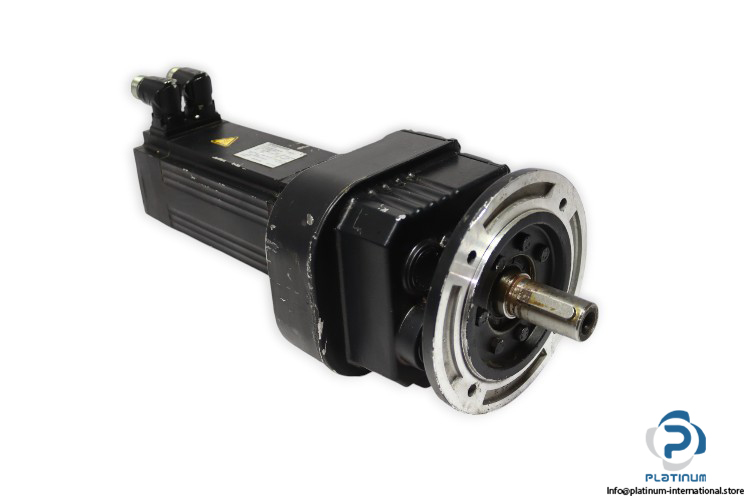

SEW RF27 CMP63M/KY/RH1M/SM1 AC SERVO MOTOR GEAR
This high-performance AC servo motor gear from SEW is built for precision, stability, and robust operation in demanding industrial environments. Designed with a rated speed of 3000 min»¹, strong braking capacity, and advanced protection standards, it integrates seamlessly with automation and motion control systems.

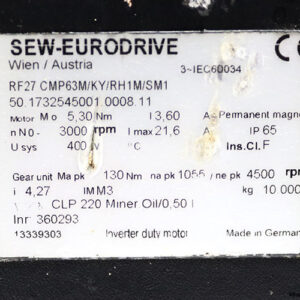

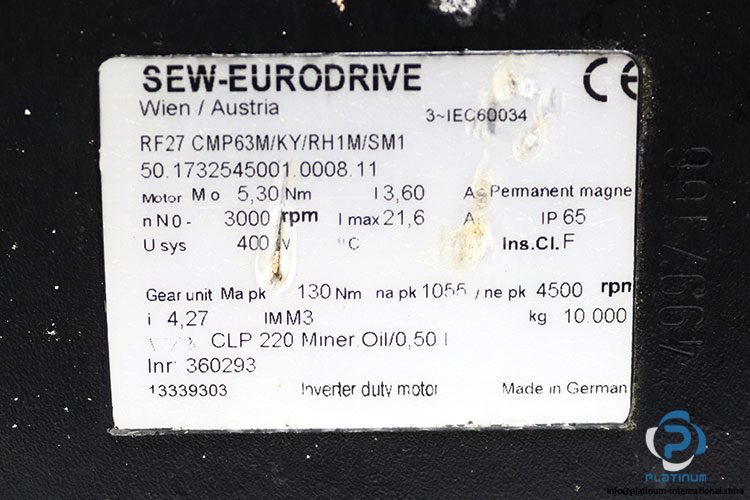

Manufacturer: SEW
Type: AC Servo Motor Gear
Model: RF27 CMP63M/KY/RH1M/SM1
Part No.: 50.1732545001.0008.11
Code: 360293 / 13339303
Technical Information
- Max. Voltage: 400 V AC
- Max. Current: 21.6 A
- Stall Current: 3.60 A
- Rated Speed: 3000 min»¹
- Rated Frequency: 100 Hz
- Stall Torque: 5.30 Nm
- Voltage Brake: 230 V AC
- Gear Unit Brake: 130 Nm
- Ratio: 4.27
- Speed Gear Box: 1055 to 4500 rpm
- Insulation Class: F
- Protection Class: IP65
- Oil: CLP 220 Mineral Oil / 0.50
