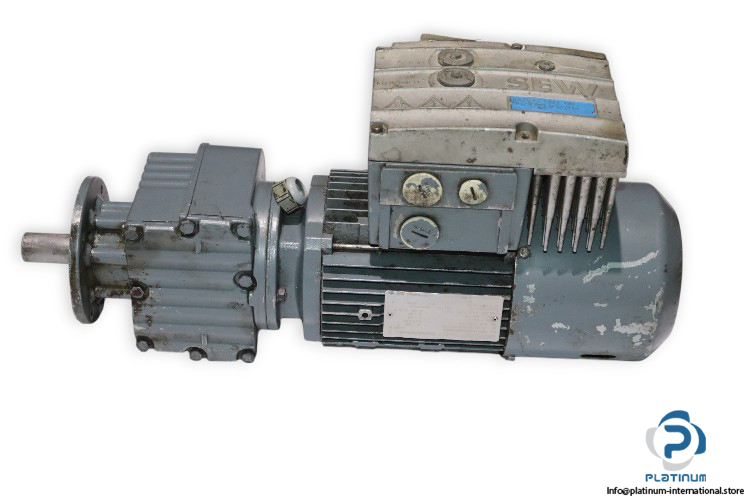

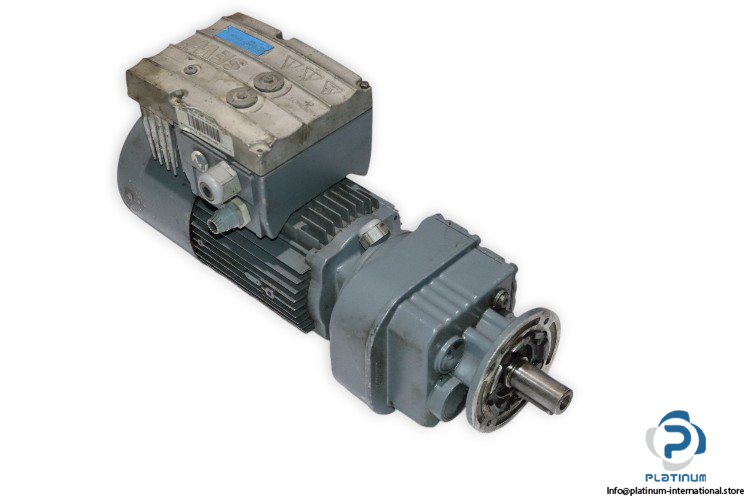

SEW HELICAL-GEAR MOTOR
The SEW Helical-Gear Motor (Model: RF27 DT80K4/BMG/MM05, Part No: 01.3117879801.0001.03) offers high-efficiency power transmission with a wide range of operational speeds and torque. Featuring a total ratio of 19.35 and a service factor of 1.80, this motor is ideal for applications requiring precise control and high reliability. It is equipped with a multi-range voltage system and SEW MOVIMOT inverter drive for enhanced performance.
Manufacturer: SEW
Type: Helical-Gear Motor

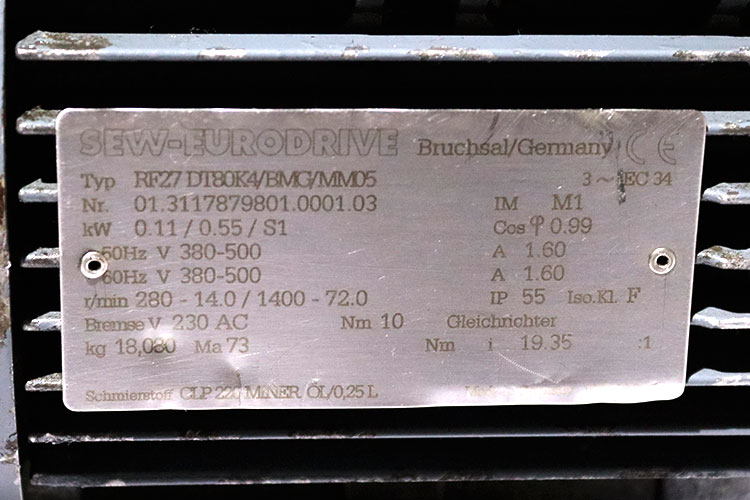

Model: RF27 DT80K4/BMG/MM05
Part No.: 01.3117879801.0001.03

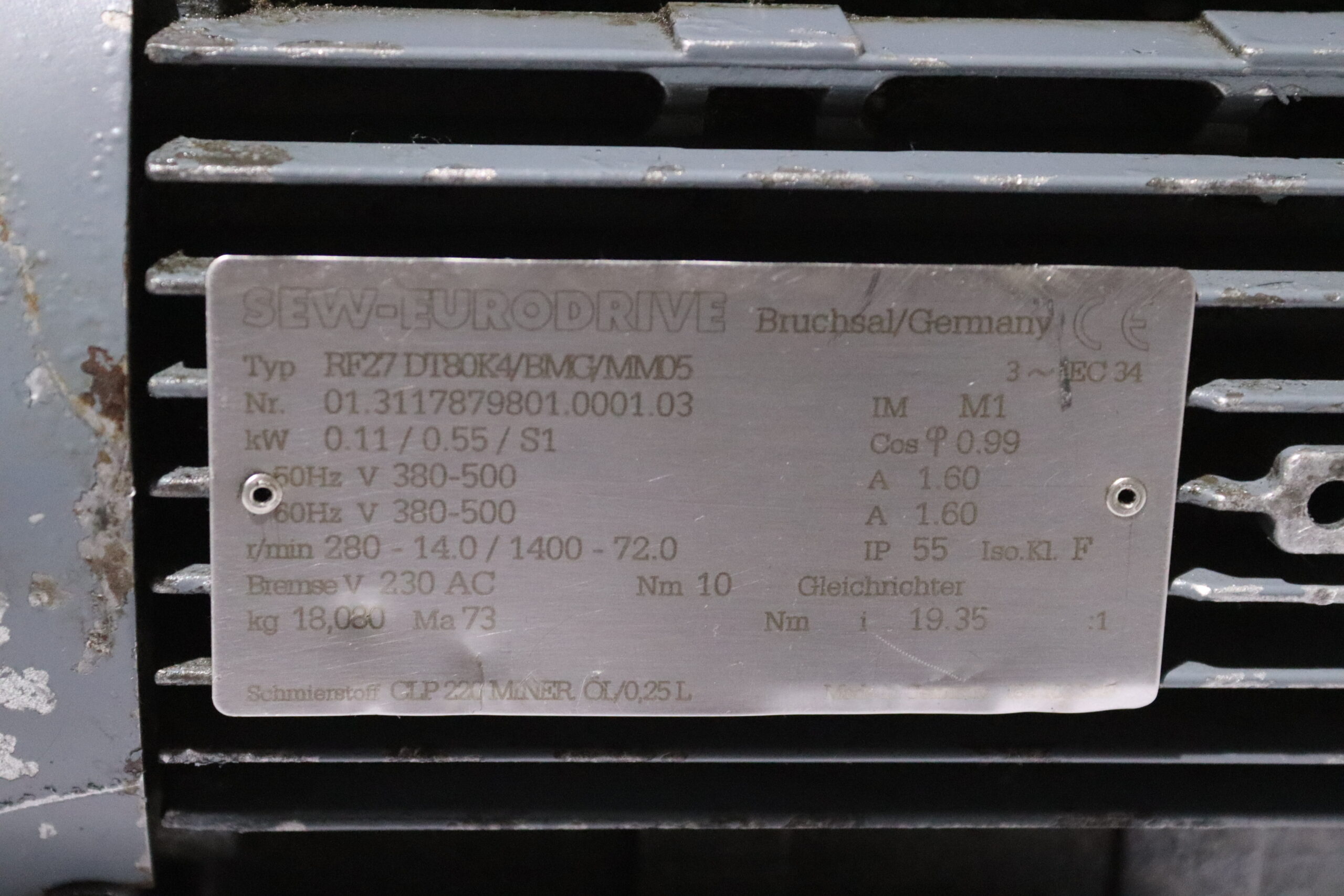

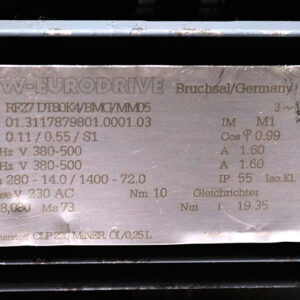

Technical Specifications
- Gear Unit: RF27
- Speed (50Hz) [r/min]: 280 – 1400
- Output Speed [r/min]: 14.0 – 72.0
- Total Ratio: 19.35
- Output Torque [Nm]: 73
- Service Factor SEW-FB: 1.80
- Mounting Position: M1
- Lubricant / Volume [l]: CLP 220 0.25
- Output Shaft End: 25x50mm lg.
- Flange: 120 mm
- Motor Power [kW]: 0.11 / 0.55
- Motor Frequency [Hz]: 50
- Cyclic Duration Factor (S1-S10): S1
- Multi Range-Voltage 50Hz [V]: 380-500
- Multi Range-Voltage 60Hz [V]: 380-500
- MM Rated Main Current [A]: 1.60
- MM Rated O/P Current [A]: 2.00
- Thermal Class [°C]/Enclosure [IP]: (F) / 55
- Brake Voltage [V]/Torque [Nm]: 230 AC / 10
- Multi Range-Voltage Brake [V]: 230 AC

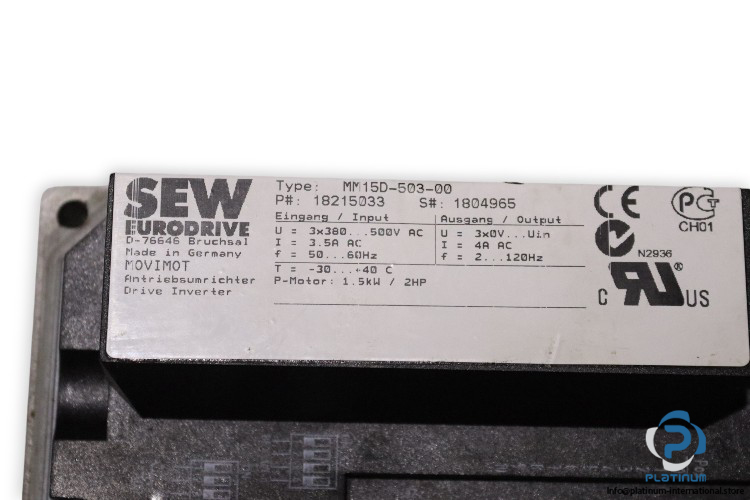

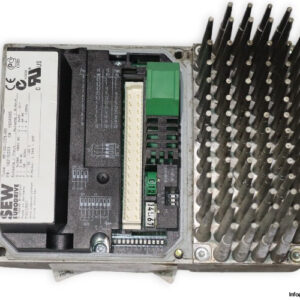

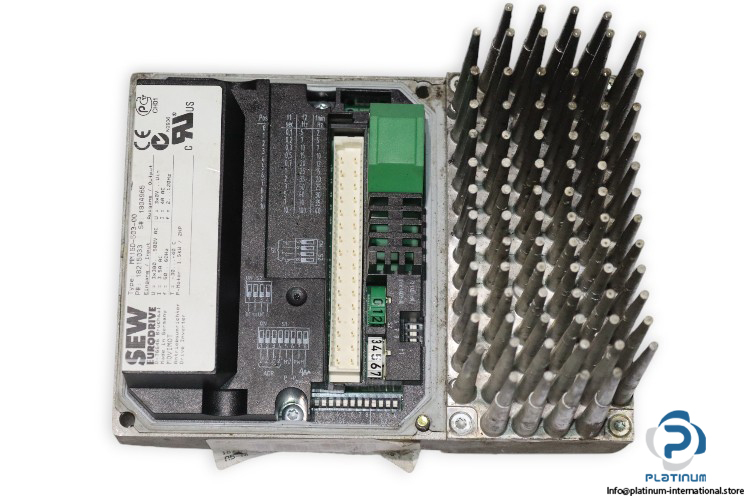

- Attached with: SEW MM15D-503-00 MOVIMOT Inverter Drive
Input
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 3.5 A
- Frequency: 50 / 60 Hz
Output
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 4 A
- Frequency: 2 to 120 Hz
