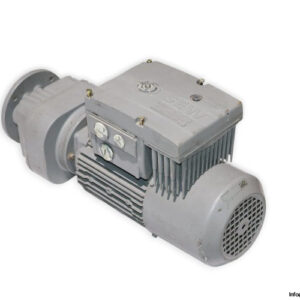

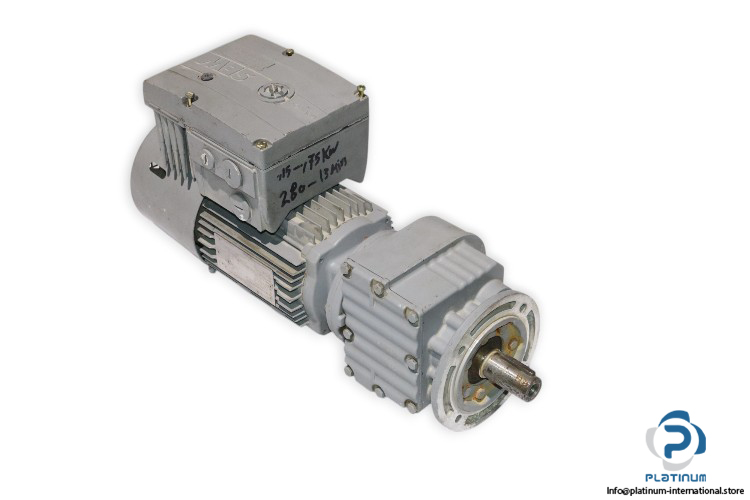

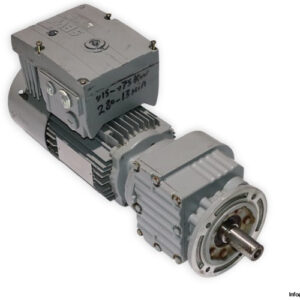

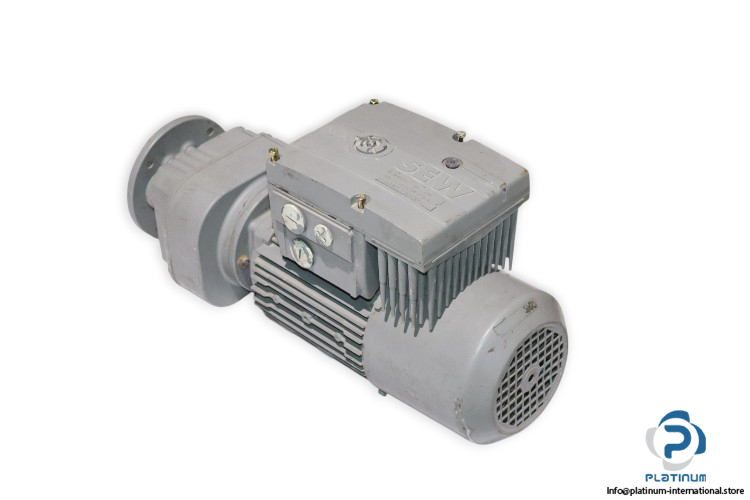

SEW Helical-Gearmotor RF27 DT80N4/BMG/MM07

The SEW RF27 DT80N4/BMG/MM07 Helical-Gearmotor is a powerful and efficient drive solution designed for industrial applications requiring reliable torque and speed control. Featuring an integrated SEW MM07C-503-00 MOVIMOT Inverter Drive, this unit ensures seamless speed regulation and energy efficiency.

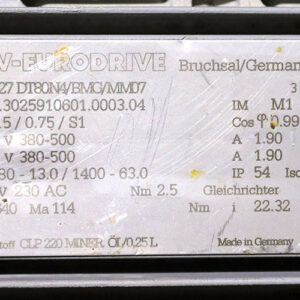

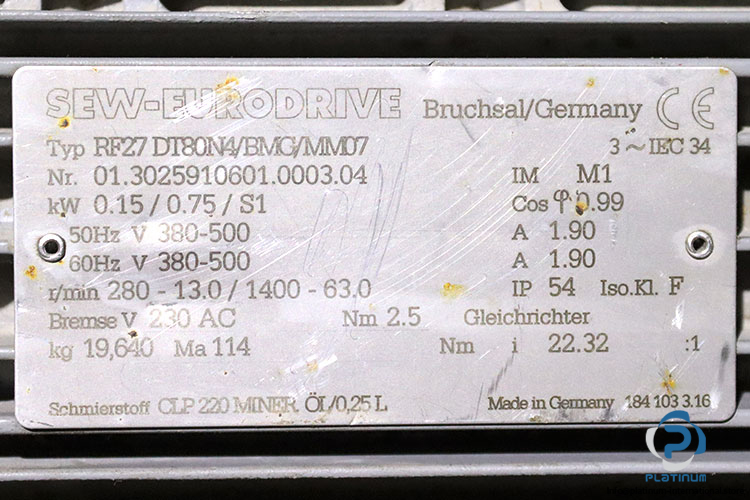

Technical Specifications:

Gear Unit:

• Model: RF27
• Speed (50Hz): 280 – 1400 r/min
• Output Speed: 13.0 – 63.0 r/min
• Total Ratio: 22.32
• Output Torque: 114 Nm
• Service Factor SEW-FB: 1.15
• Mounting Position: M1
• Lubricant / Volume: CLP 220 / 0.25 L
• Output Shaft End: 25x50mm lg.
• Flange: 140 mm

Motor:

• Power: 0.15 / 0.75 kW
• Frequency: 50 Hz
• Cyclic Duration Factor: S1
• Multi-Range Voltage (50Hz): 380-500V
• Multi-Range Voltage (60Hz): 380-500V
• MM Rated Main Current: 1.90 A
• MM Rated Output Current: 2.50 A
• Thermal Class / Enclosure: (F) / IP54
• Brake Voltage / Torque: 230V AC / 2.5 Nm
• Multi-Range Voltage Brake: 230V AC

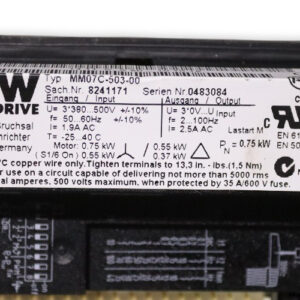

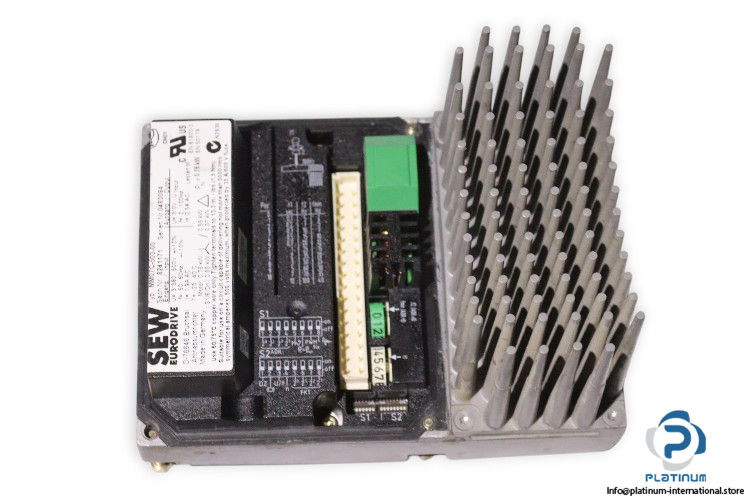

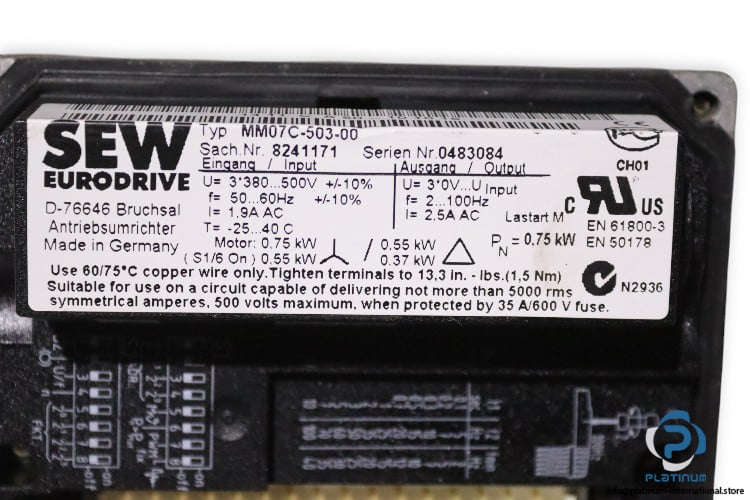

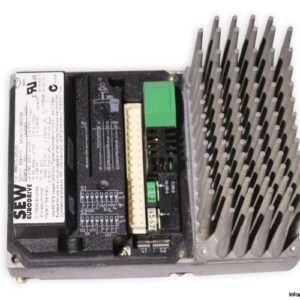

MOVIMOT Inverter Drive (SEW MM07C-503-00):

Input:

• Supply Voltage: 3-Phase 380 to 500V AC
• Rated Current: 1.9 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 to 500V AC
• Rated Current: 2.5 A
• Frequency: 2 to 100 Hz

The SEW RF27 DT80N4/BMG/MM07 helical-gearmotor, with its integrated inverter drive, provides precise control over motor speed and torque. It is ideal for various industrial automation applications requiring reliable and high-performance drive solutions.
