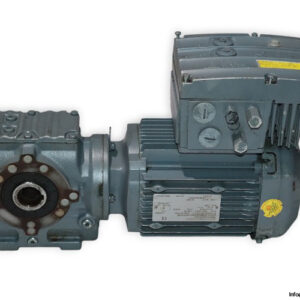

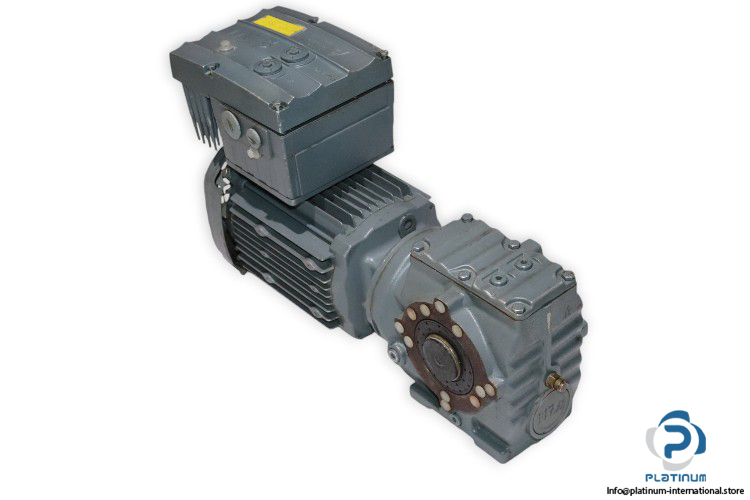

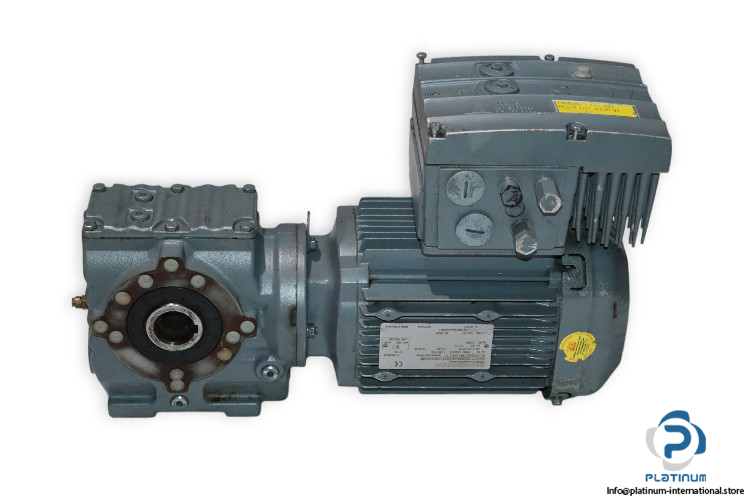

SEW SA47/T DRS80M4/MM11/MO/AZSK HELICAL-WORM GEARMOTOR
The SEW SA47/T DRS80M4/MM11/MO/AZSK Helical-Worm Gearmotor combines precision engineering with robust performance. Designed for efficiency, it offers reliable torque and speed control in a compact design. With a total ratio of 17.62 and maximum torque of 110 Nm, it delivers excellent performance in various industrial applications.
Manufacturer: SEW
Type: Helical-worm gearmotor

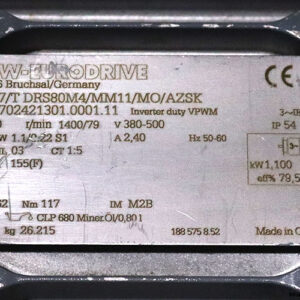

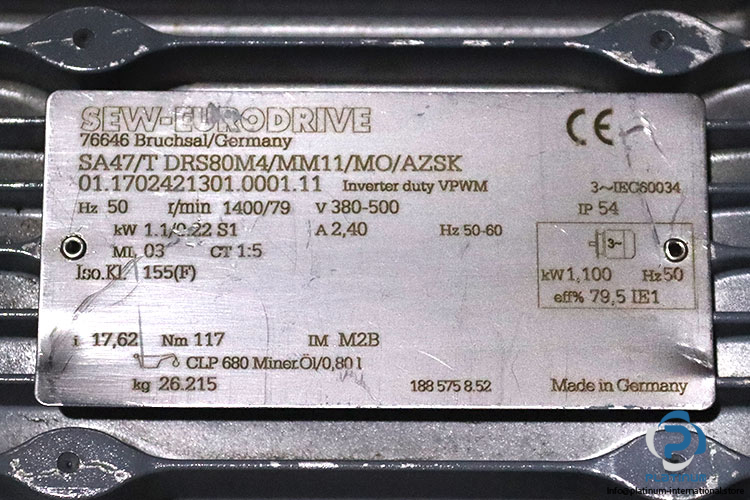

Model: SA47/T DRS80M4/MM11/MO/AZSK
Part No: 01.1702421301.0001.11
Technical Specifications
- Gear unit: SA47/T
- Input speed [r/min]: 1400 – 280
- Output speed [r/min]: 79 – 16
- Total ratio: 17.62 / infinite
- Ma max [Nm]: 110
- Output torque [Nm]: 117
- Service factor SEW-FB: 0.95
- Mounting position: M2B
- Lubricant / -volume [l]: CLP 680 Miner.Oil / 0.80
- Hollow shaft: 30 mm
- Design: Hollow shaft
- Motor power [kW]: 1.1 / 0.22
- Motor frequency [Hz]: 50
- Cyclic duration factor S1-S10: S1
- Setting range (CT): 1:5
- Motor voltage [V]: 380-500
- Motor supply frequency [Hz]: 50
- MM rated main current [A]: 2.40
- MM rated O/P current [A]: 3.20
- Thermal cl. [°C]/Enclosure [IP]: 155(F) / 54
- Motor mains efficiency [%]: 79.5

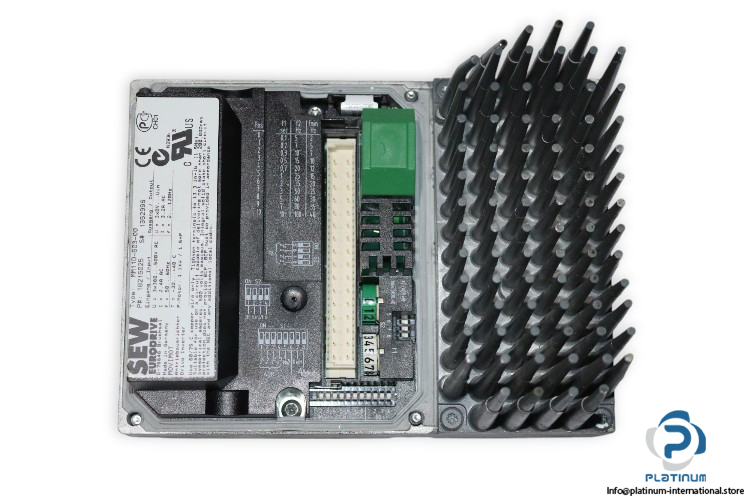

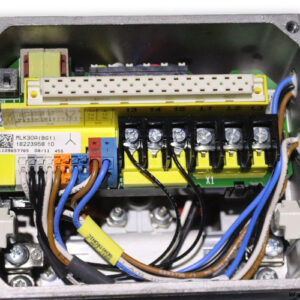

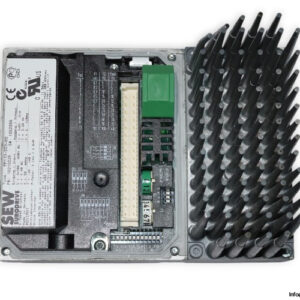

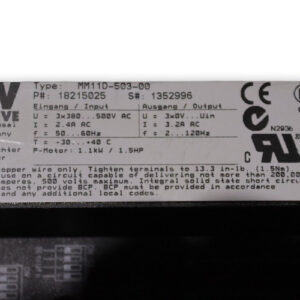

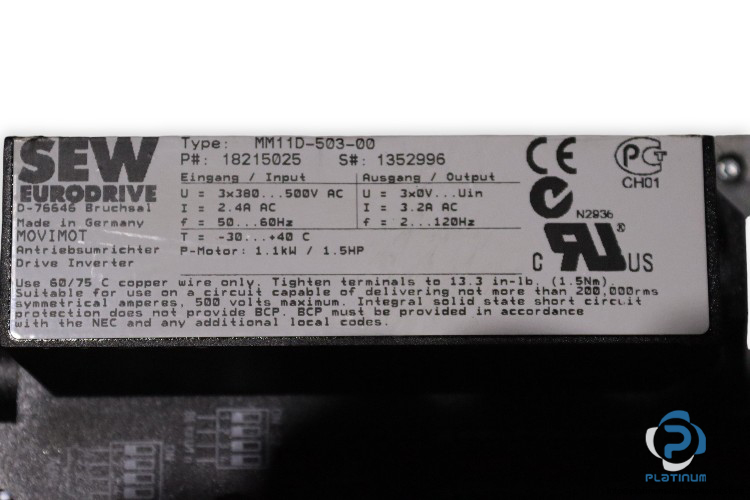

- Attached with: SEW MM11D-503-00 MOVIMOT INVERTER DRIVE
Input
- Supply Voltage: 3-Phase 380 / 500 V AC
- Rated Current: 2.4 A
- Frequency: 50 / 60 Hz
- Power: 1.1 kW
Output
- Rated Voltage: 3-Phase 0 / 380 “ 500 V AC
- Rated Current: 3.2 A
- Frequency: 2 / 120 Hz
