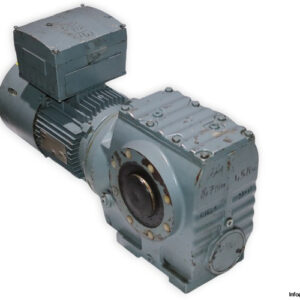

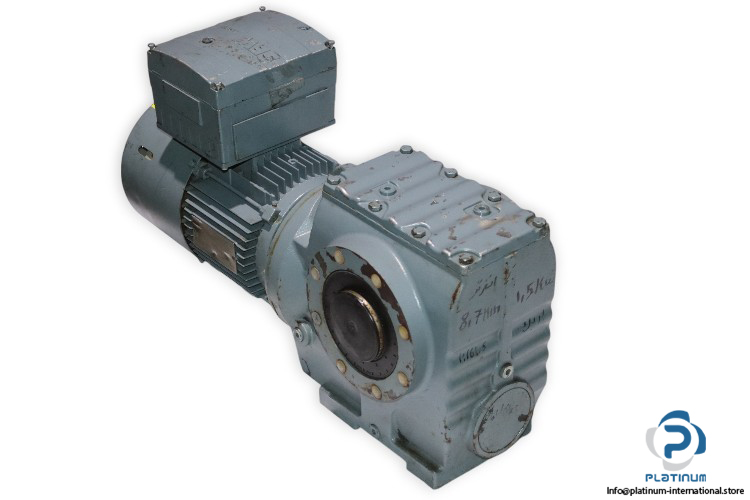

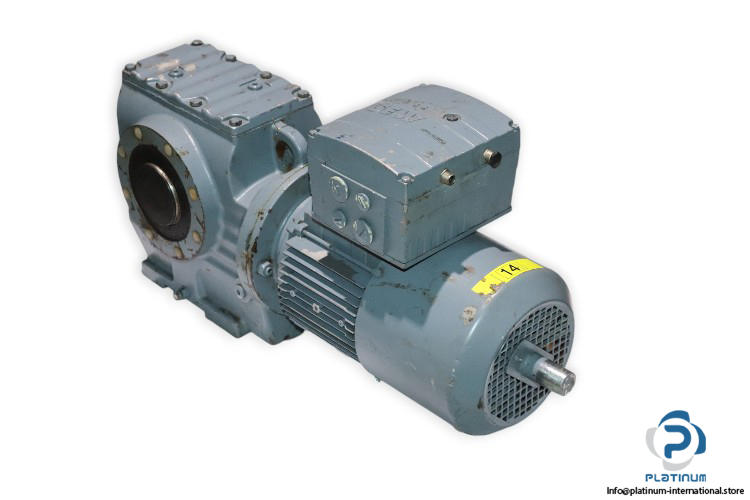

SEW SA77 DT90L4/BMG/HR/TF/MSW/CK0/RR2A HELICAL-WORM GEARMOTOR
The SEW SA77 DT90L4/BMG/HR/TF/MSW/CK0/RR2A Helical-Worm Gearmotor provides high-performance and reliability in various industrial applications. With a robust design and efficient motor power, this gearmotor ensures precise torque and effective operation in demanding environments.

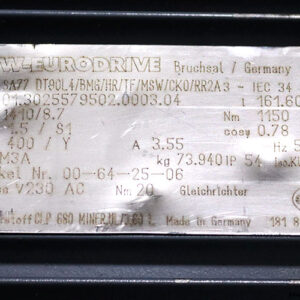

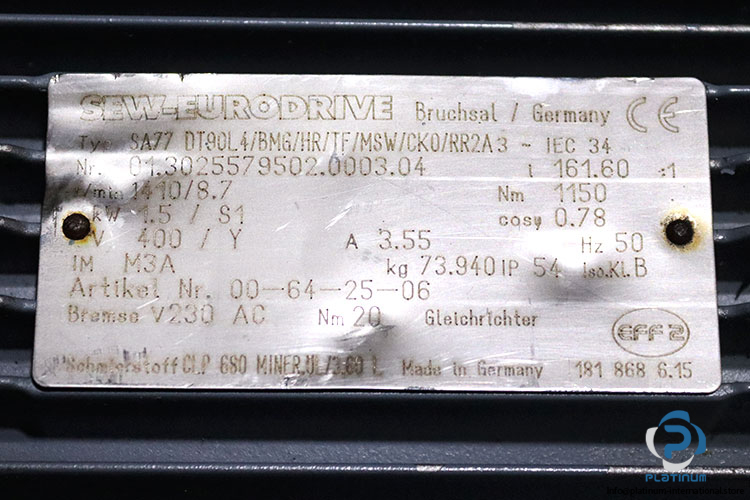

Manufacturer: SEW
Type: Helical-worm gearmotor
Model: SA77 DT90L4/BMG/HR/TF/MSW/CK0/RR2A
Part no: 01.3025579502.0003.04
Technical Specifications
- Gear unit: SA77
- Input speed [r/min]: 1410 / 8.7
- Total ratio: 161.60
- Output torque [Nm]: 1150
- Service factor SEW-FB: 1.10
- Mounting position: M3A
- Lubricant / -volume [l]: CLP 680 3.60
- Hollow shaft: 60mm
- Design: Hollow shaft
- Motor power [kW]: 1.5
- Motor frequency [Hz]: 50
- Cyclic duration factor S1-S10: S1
- Motor voltage [V]: 400 star
- Nominal current [A]: 3.55
- cos phi: 0.78
- Thermal cl.[°C]/Enclosure[IP]: B / 54
- Motor mains efficiency [%]: 79.5
- Brake voltage [V]/-torque [Nm]: 230 AC / 20
- Multi range-voltage brake [V]: 230 AC

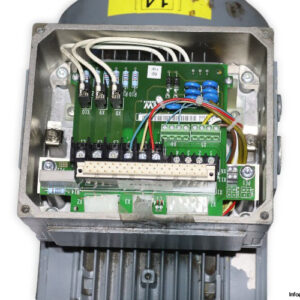

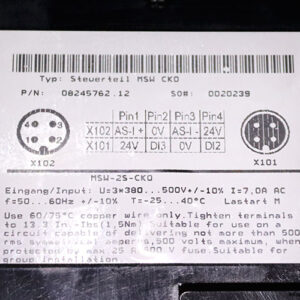

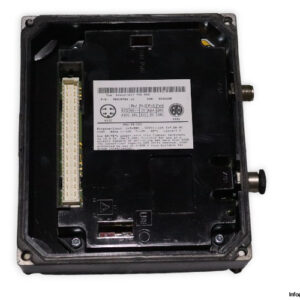

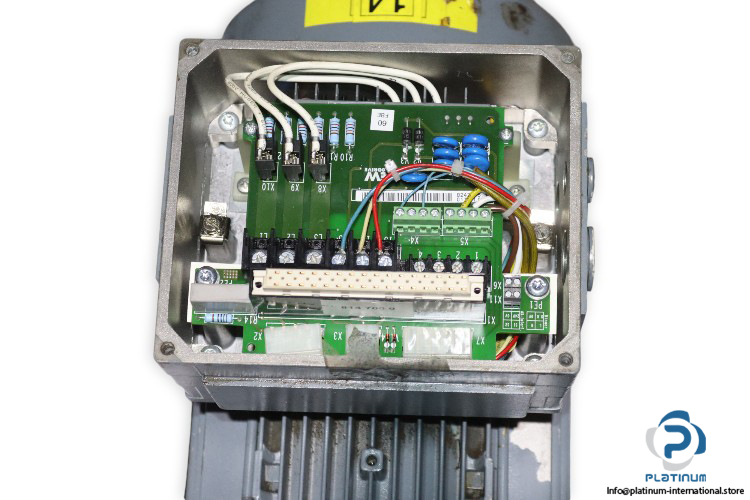

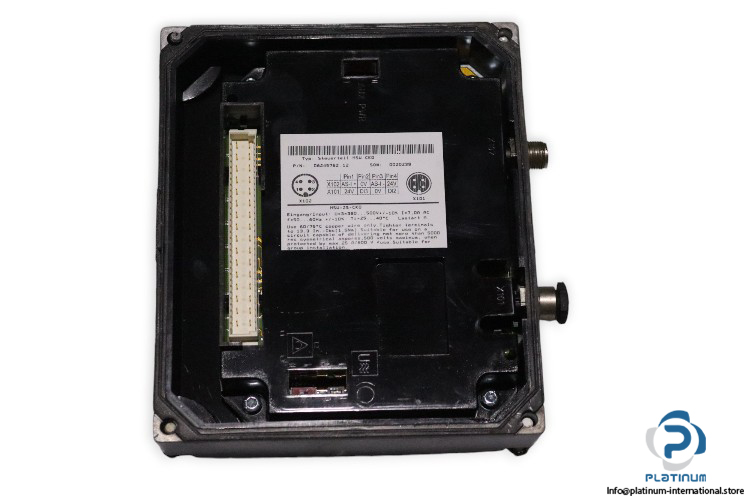

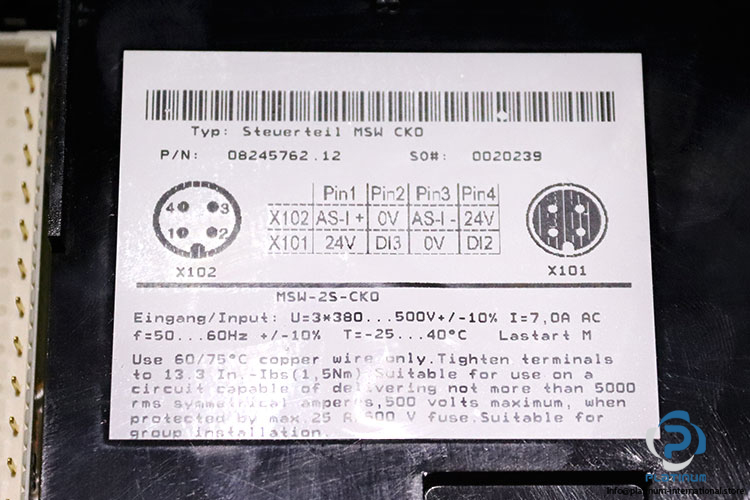

- Attached with: MSW-2S-CK0 MOVI-SWITCH
- Supply Voltage: 3-Phase 380 / 500 V AC
- Rated Current: 7 A
- Frequency: 50 / 60 Hz
