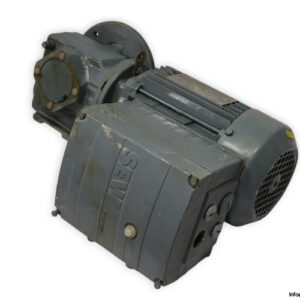

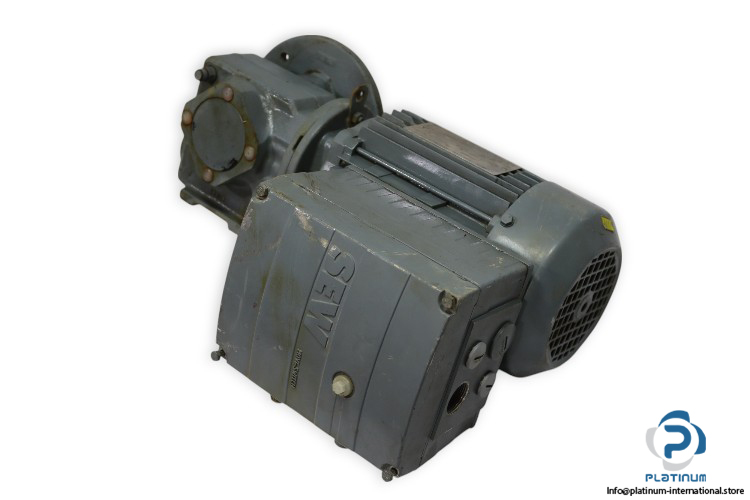

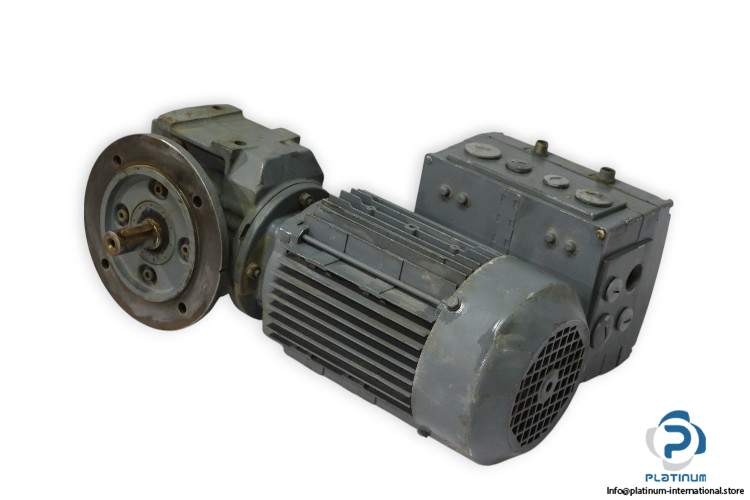

SEW SF37 DT80K4/TF/MSW/CK0/RR2A HELICAL-WORM GEARMOTOR WITH CONTROL UNIT
Engineered for demanding industrial environments, this SEW helical-worm gearmotor combines robust construction with integrated motion control for reliable torque transmission and efficiency. Delivered with a matched MSW control unit, it ensures seamless operation in automation systems where precision and ruggedness are key.

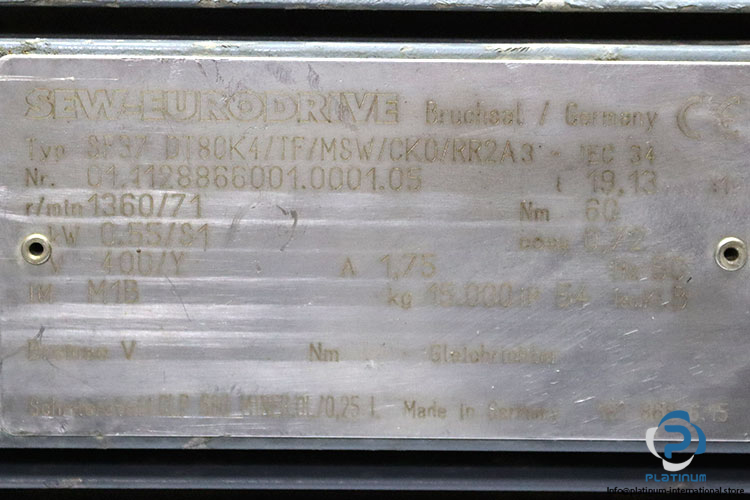

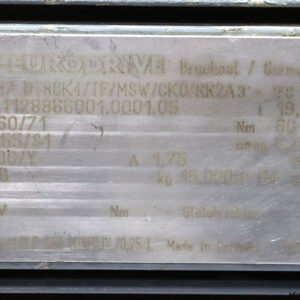

Manufacturer: SEW
Type: Helical-Worm Gearmotor
Model: SF37 DT80K4/TF/MSW/CK0/RR2A
Reference No.: 01.1128866001.0001.05
Part No.: 01.1128866001.0001.05 / 01.3025579508.0002.004
Technical Information
- Size: 80K, 4 Pole
- Temperature Sensor: TF
- Gear Unit: SF37
- Input Speed: 1360 r/min
- Output Speed: 71 r/min
- Mounting Position: M1B
- Lubricant Volume: 0.25 l
- Motor Power: 0.55 kW
- Torque: 60 Nm
- Ratio: 19.13
- Cyclic Duration Factor: S1
- Voltage: 400 V (Multi-Range)
- Rated Main Current: 1.75 A
- Power Factor: cos φ 0.72
- Oil Type: CLP 680 MINER.UL

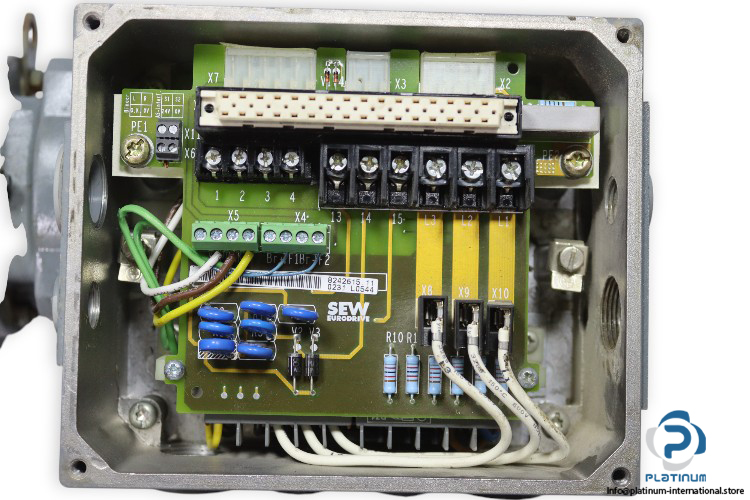

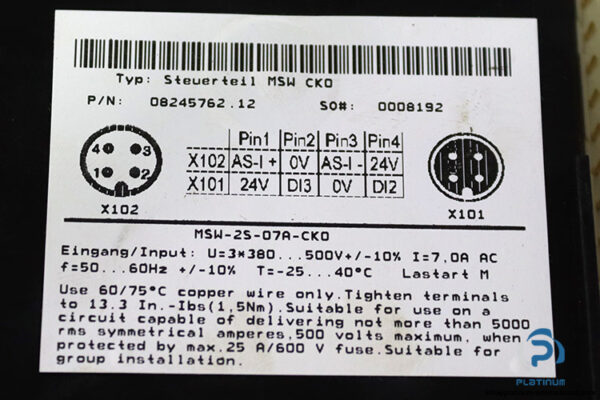

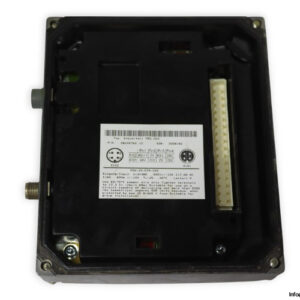

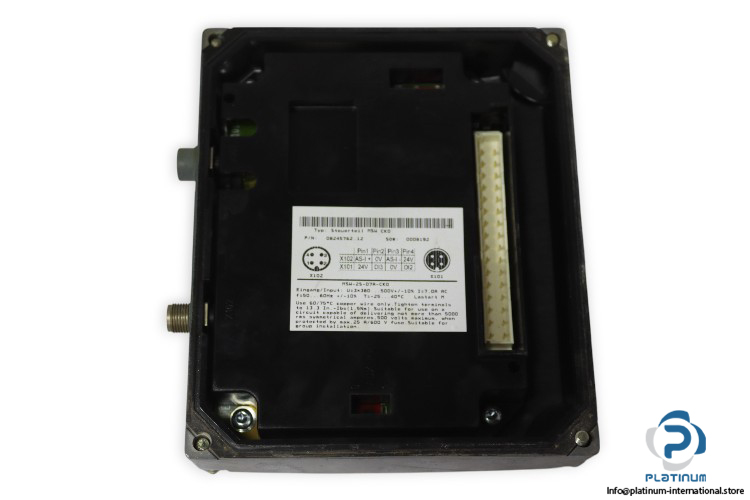

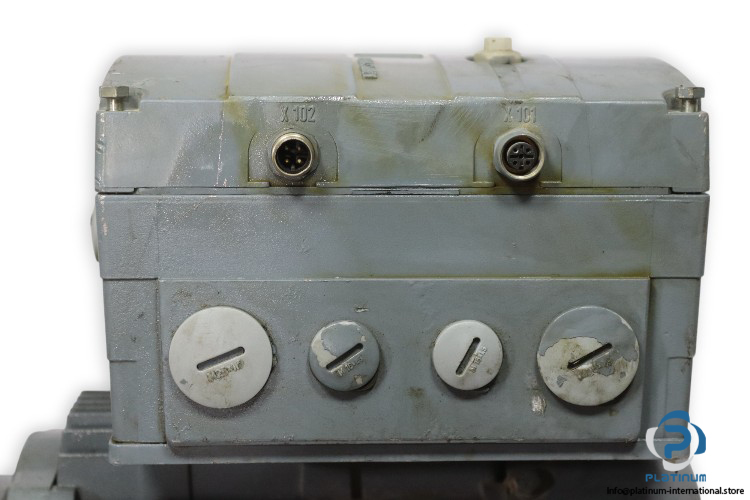

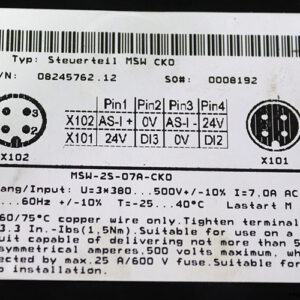

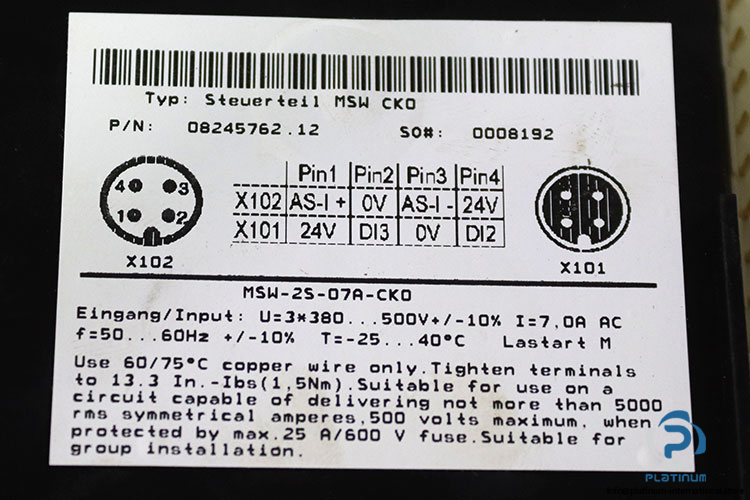

Attached Control Unit: MSW-2S-07A-CKO
- SO No.: 0008192
- Part No.: 08245762.12
- Supply Voltage: 3-Phase 380“500 V AC
- Rated Current: 7 A
- Frequency: 50 / 60 Hz
- Temperature Range: -25 to 40 °C
- Nominal Power: 1.5 kW
- Wiring: 60/75 °C copper wire only
- Terminal Torque: 13.31 in.lbs. (1.5 Nm)
- Interrupt Rating: 5000 rms symmetrical amperes, 500 V max
- Protection: 25A / 600 V fuse

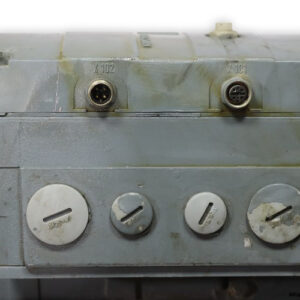

- No. of Pins: 4
