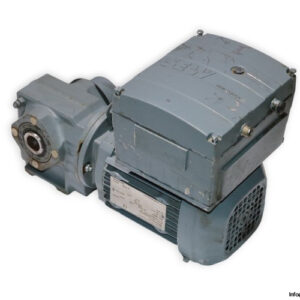

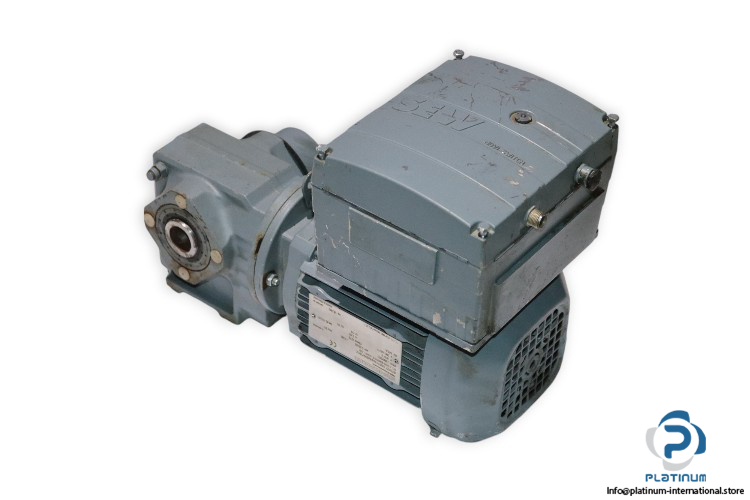

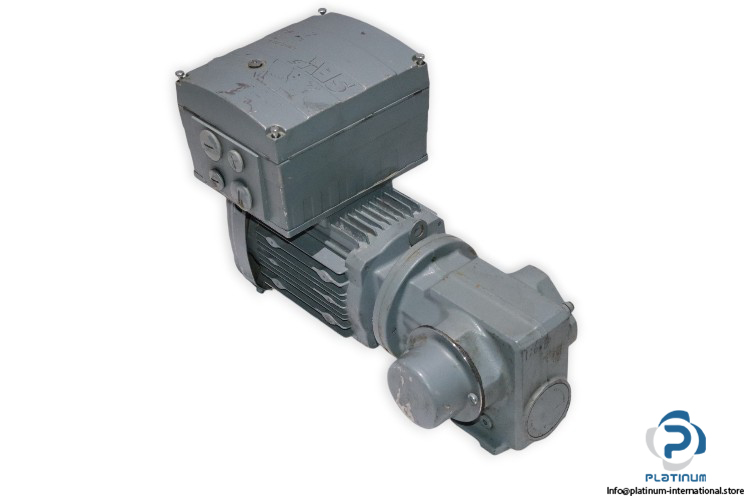

SEW ST37/T DRS71M4/MSW/TF/Z HELICAL-WORM GEARMOTOR

The SEW ST37/T DRS71M4/MSW/TF/Z Helical-Worm Gearmotor is designed for reliable and efficient performance in industrial applications. With a 0.55 kW motor, 6.80 total ratio, and 43 Nm maximum torque, this gearmotor provides high power and durability. The motor is designed with a hollow shaft and Torqloc system for secure mounting.

Manufacturer: SEW

Type: Helical-worm gearmotor

Model: ST37/T DRS71M4/MSW/TF/Z

Part No: 01.1306496001.0001.09

Technical Specifications

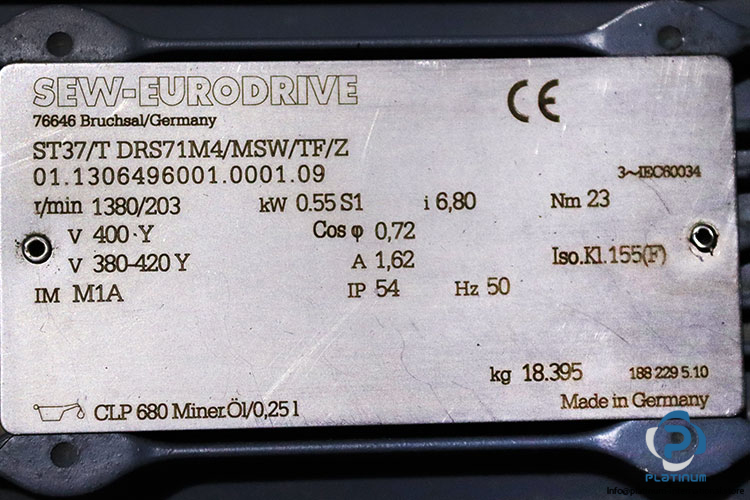

• Gear Unit: ST37/T
• Speed 50Hz [r/min]: 1380 / 203
• Total Ratio: 6,80 / finite
• No. of Teeth Nom./Denominator: 34/5
• Max Torque (Ma max) [Nm]: 43
• Output Torque [Nm]: 23
• Service Factor SEW-FB: 1.85
• Mounting Position: M1A
• Lubricant / Volume [l]: CLP 680 Miner.Oil / 0.25
• Hollow Shaft: 20 mm
• Design: Hollow shaft with Torqloc
• Motor Power [kW]: 0.55
• Motor Frequency [Hz]: 50
• Cyclic Duration Factor S1-S10: S1
• Multi-Range Voltage [V]: 380-420 star
• Nominal Current [A]: 1.62
• Cos Phi: 0.72
• Thermal Classification [°C] / Enclosure [IP]: 155(F) / 54

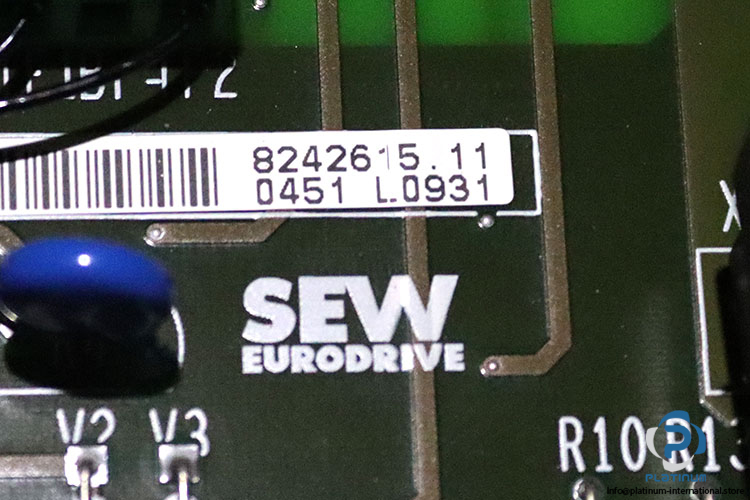

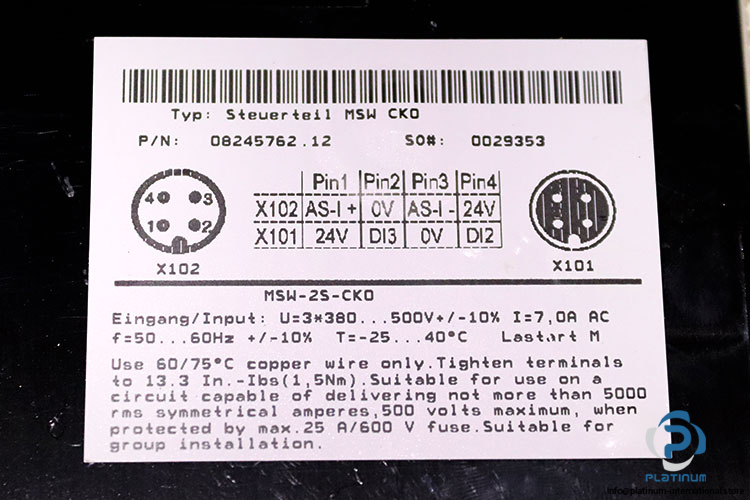

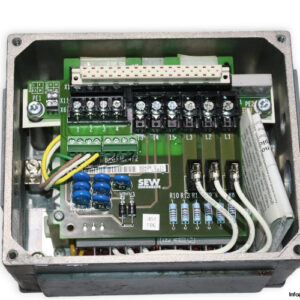

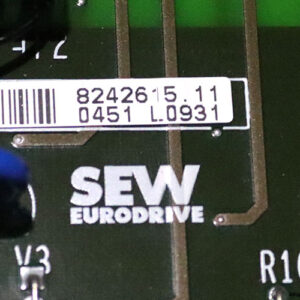

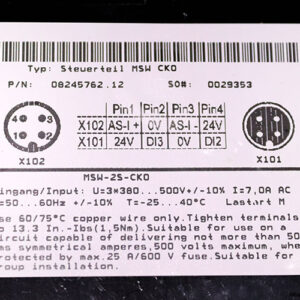

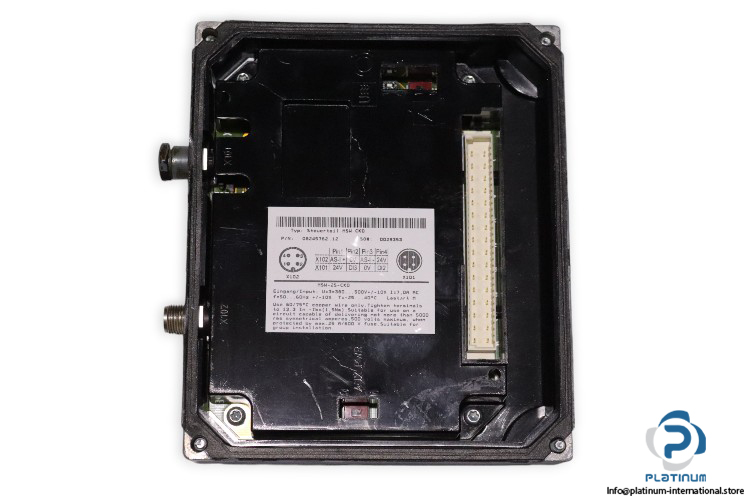

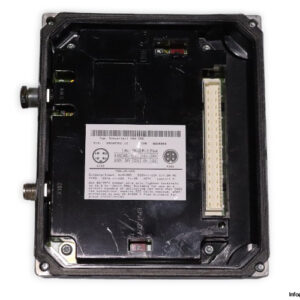

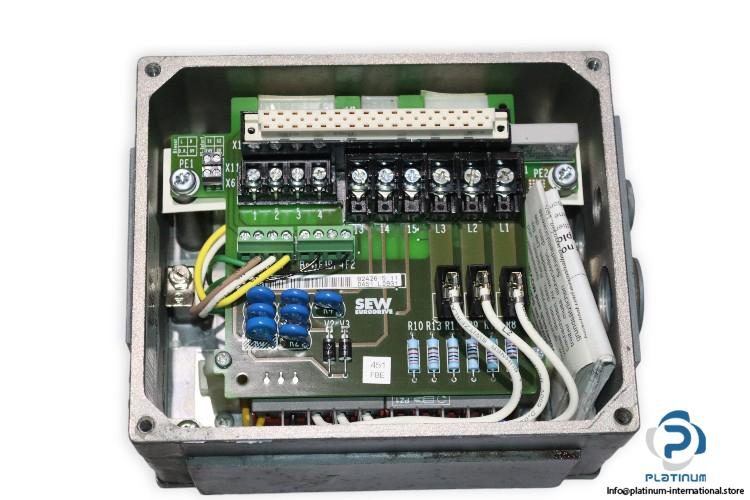

• Attached with: SEW MSW-2S-CK0 MOVI-SWITCH
• Input:
  • Supply Voltage: 3-Phase 380 / 500 V AC
  • Rated Current: 7 A
  • Frequency: 50 / 60 Hz
