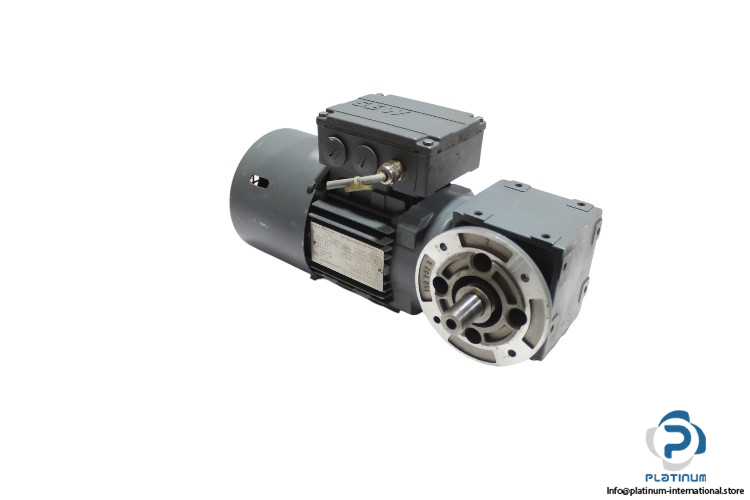

SEW-Eurodrive Gearmotor WF20 DT71D4/BMG

The SEW-Eurodrive Gearmotor WF20 DT71D4/BMG is a versatile and efficient motor designed for a wide range of industrial applications. With a compact design and multi-range voltage options, this gearmotor offers reliable performance in demanding environments.

Manufacturer: SEW-Eurodrive

Model: WF20 DT71D4/BMG

Type: Gearmotor

Part No.: 01.3336338401.0013.03

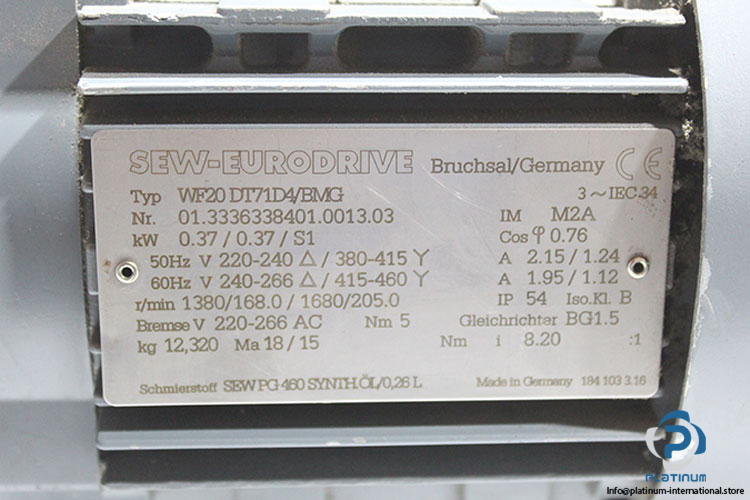

Technical Information:

• Rectifier: BG1.5
• Ratio: 8.20
• Gear Unit: WF20
• Speed [r/min]: 290 to 18 / 2900 to 176
• Mounting Position: M2A
• Cos phi: 0.76
• Speed: 1380 to 168 / 1680 to 205 rpm
• Motor Power [kW]: 0.37
• Cyclic Duration Factor: S1
• Multi-Range Voltage (50Hz): 220 to 240 V delta / 380 to 415 V Y
• Multi-Range Voltage (60Hz): 240 to 266 V delta / 415 to 460 V Y
• Current: 2.15/1.24 A , 1.95/1.12 A
• Thermal Class / Enclosure: (F) / IP55
• Brake Voltage: 220-266 V AC
• Brake Torque: 5 Nm
• Lubricant: PG 460 SYNTH. OIL / 0.26 L
