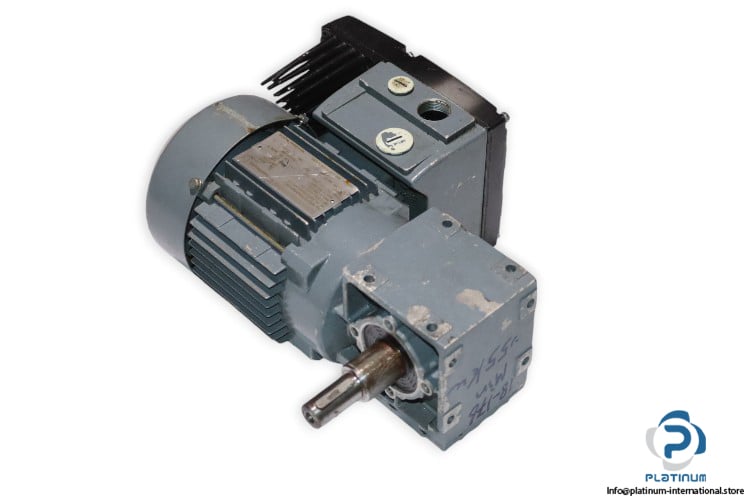

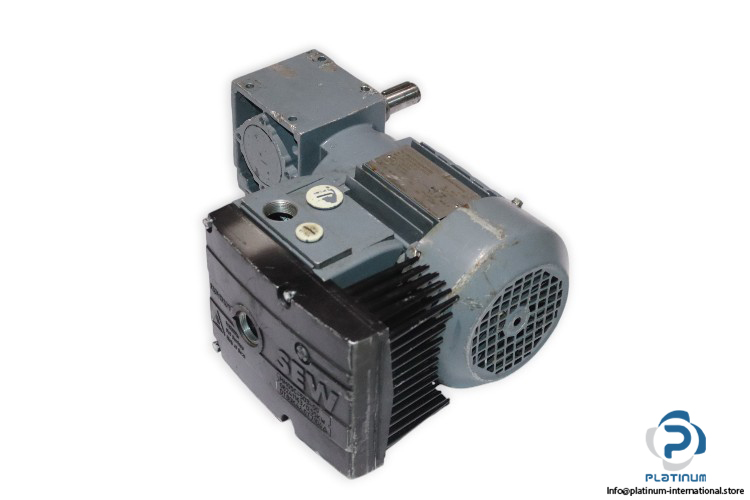

SEW SPIROPLAN GEARMOTOR WF20 DT71D4/MM05/BW1 with MOVIMOT Inverter Drive
The SEW SPIROPLAN Gearmotor WF20 DT71D4/MM05/BW1 is a highly efficient and compact gearmotor designed for industrial applications requiring precision and reliability. This unit comes with the SEW MM05C-503-00 MOVIMOT Inverter Drive, providing seamless speed control and optimized energy efficiency.
Technical Specifications:

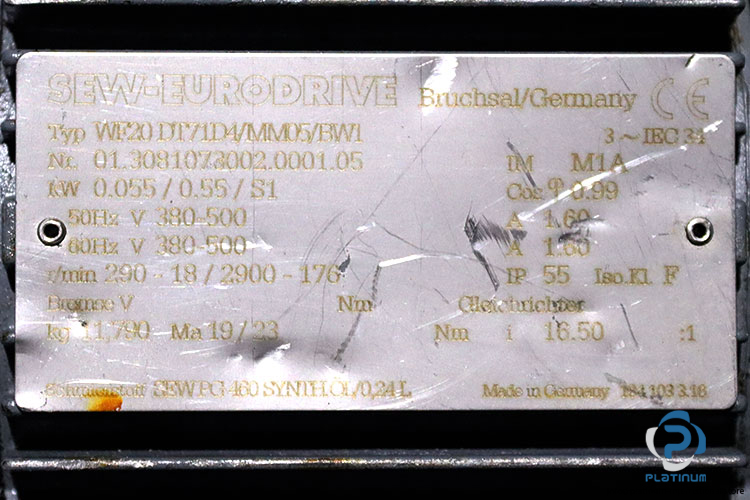

Gearmotor Specifications:
- Manufacturer: SEW
- Type: SPIROPLAN Gearmotor
- Model: WF20 DT71D4/MM05/BW1
- Part No.: 01.3081073002.0001.05
- Gear Unit: WF20
- Speed [r/min]: 290 to 18 / 2900 to 176
- Total Ratio: 16.50
- Mounting Position: M1A
- Cos phi: 0.99
- Motor Power [kW]: 0.055 / 0.55
- Cyclic Duration Factor: S1
- Multi-Range Voltage (50Hz): 380 to 500 V
- Multi-Range Voltage (60Hz): 380 to 500 V
- MM Rated Main Current: 1.60 A
- MM Rated Output Current: 1.60 A
- Thermal Class / Enclosure: (F) / IP55

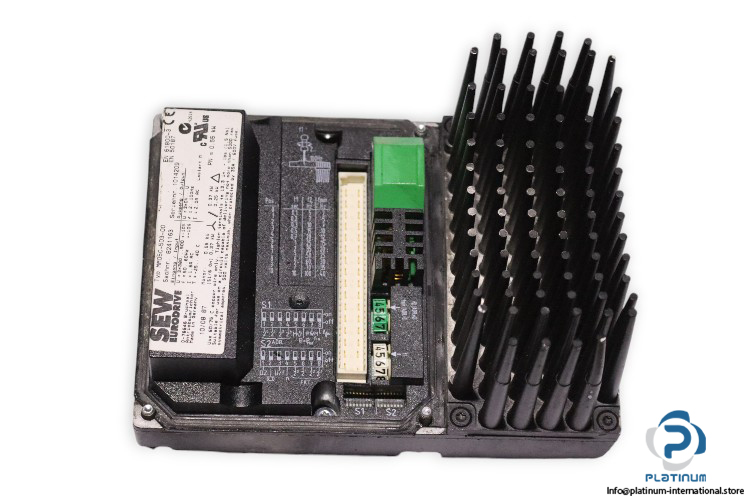

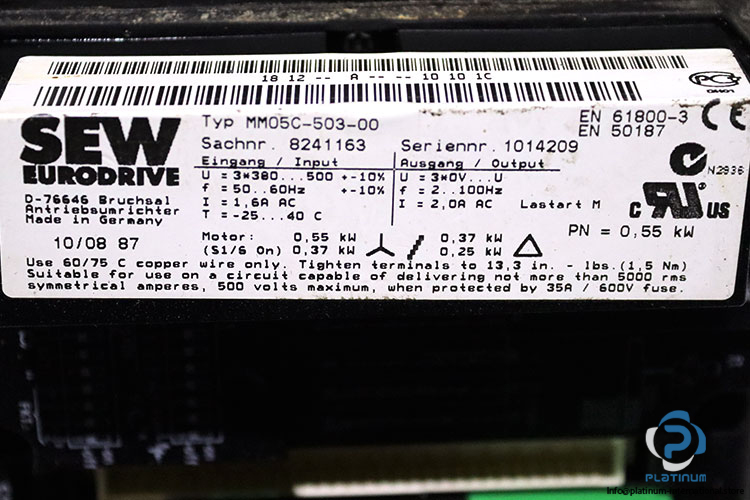

MOVIMOT Inverter Drive MM05C-503-00 Specifications:
Input:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 1.6 A
- Frequency: 50 / 60 Hz
Output:
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 2 A
- Frequency: 2 to 100 Hz
The SEW SPIROPLAN WF20 Gearmotor paired with the MOVIMOT Inverter Drive ensures optimal torque transmission, variable speed control, and high efficiency, making it an ideal solution for automation and industrial motion control applications.
