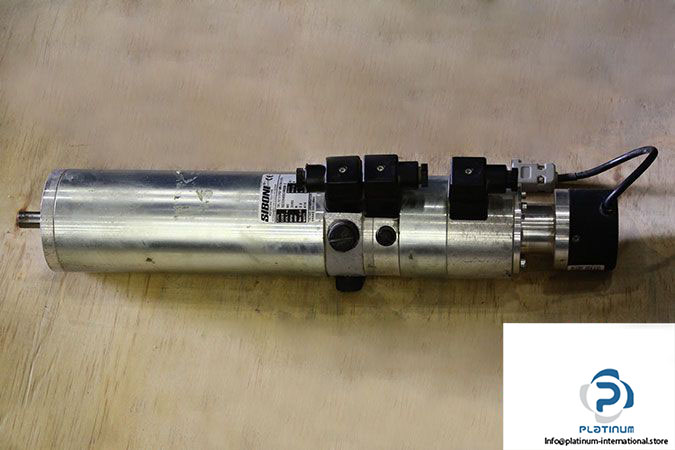

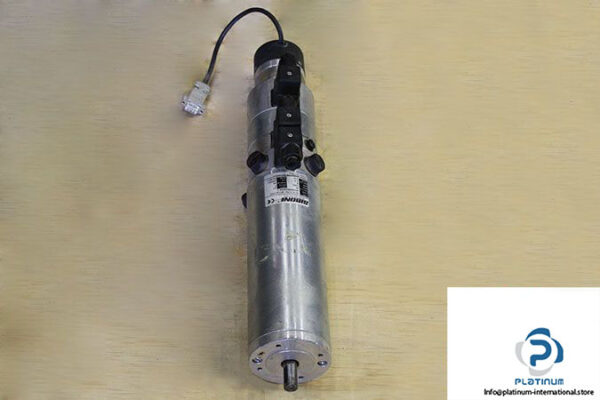

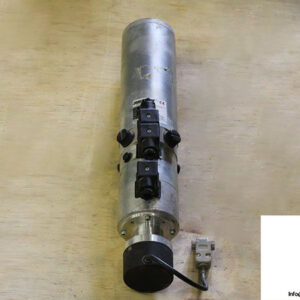

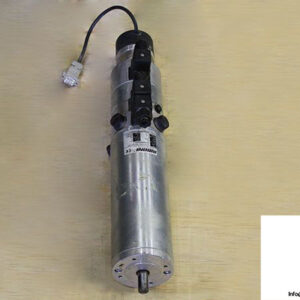

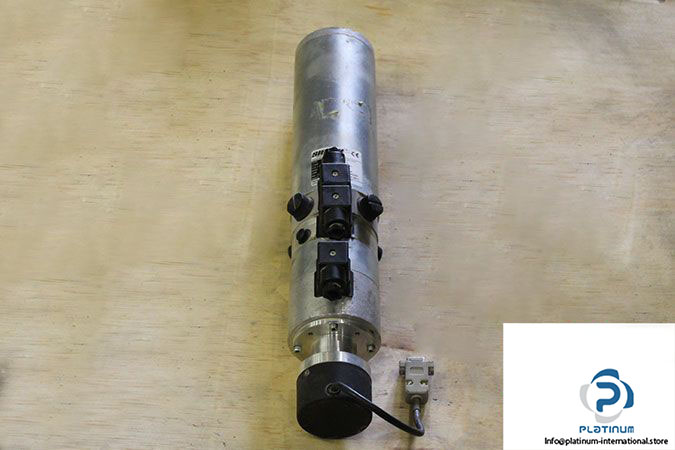

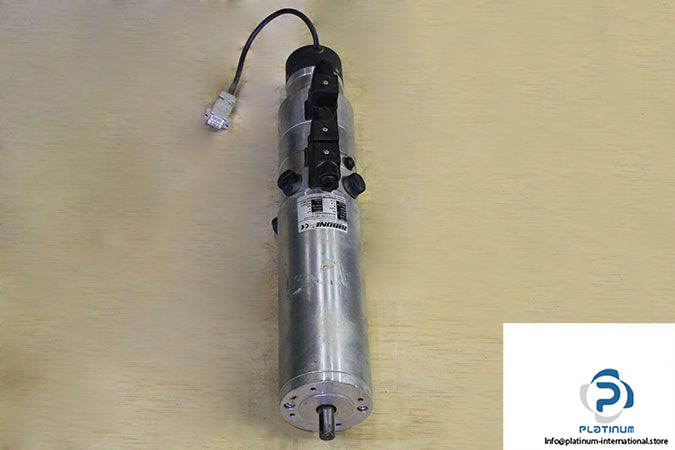

SIBONI 75PL152TG10FE01 DC MOTOR WITH INCREMENTAL ENCODER

The SIBONI 75PL152TG10FE01 is a high-performance Permanent Magnets DC Motor, engineered for continuous-duty applications requiring precision and stability. Paired with an ITALSENSOR incremental encoder, this motor delivers accurate speed and position feedback, ideal for automation, robotics, and motion control systems.

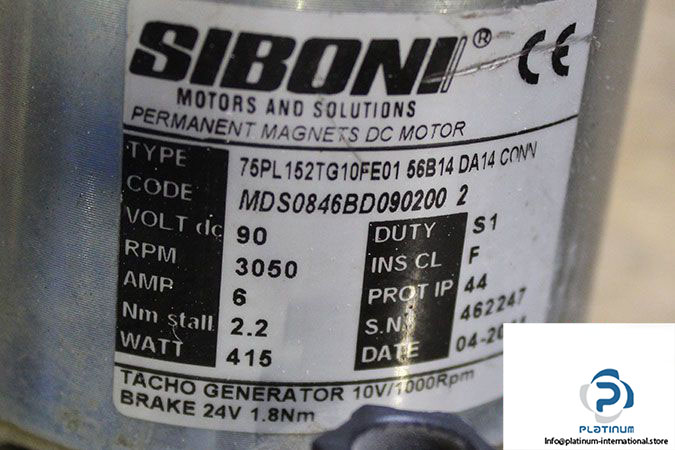

Manufacturer: SIBONI
Type: Permanent Magnets DC Motor
Model: 75PL152TG10FE01 56B14 DA14 CONN
Code: MDS0846BD090200 2
Serial No.: 462247

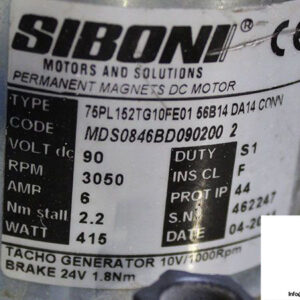

Technical Information

• Rated Voltage: 90 VDC
• Rated Current: 6 A
• Rated Speed: 3050 min»¹
• Rated Power: 415 W
• Resistance: 1.25 Ω
• Rated Torque: 2 Nm
• Stall Torque: 2.2 Nm
• Torque Constant: 0.386 Nm/A
• Rated Temperature: 0 / 40 °C
• Voltage Brake: 24 VDC
• Torque Brake: 1.8 Nm
• Tacho Generator Constant: 10 V/1000 RPM
• Duty: S1
• Insulation Class: F
• Protection Class: IP44

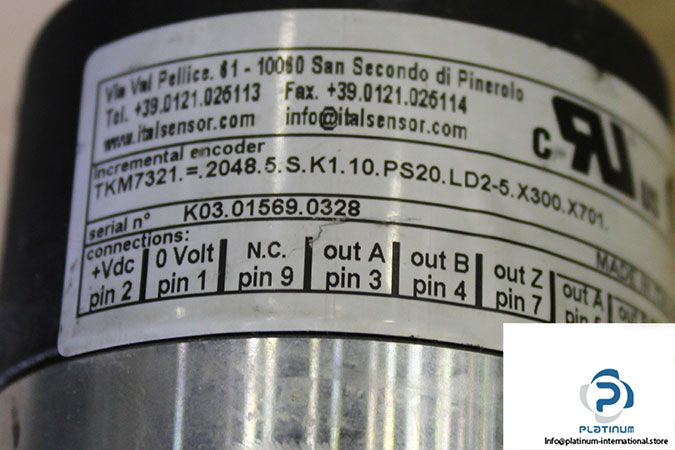

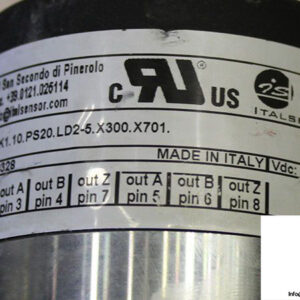

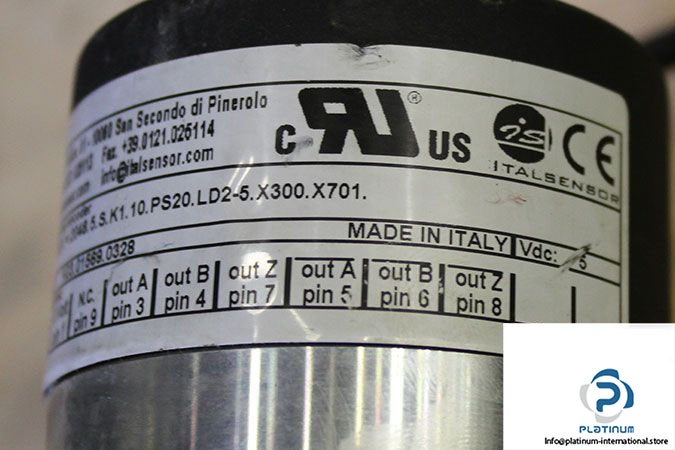

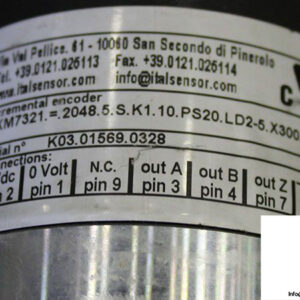

Attached Device: Incremental Encoder

Manufacturer: ITALSENSOR
Type: Incremental Encoder
Model: TKM7321.=.2048.5.S.K1.10.PS20.LD2-5.X300.X701
Serial No.: K03.01569.0328
Voltage: 5 VDC
