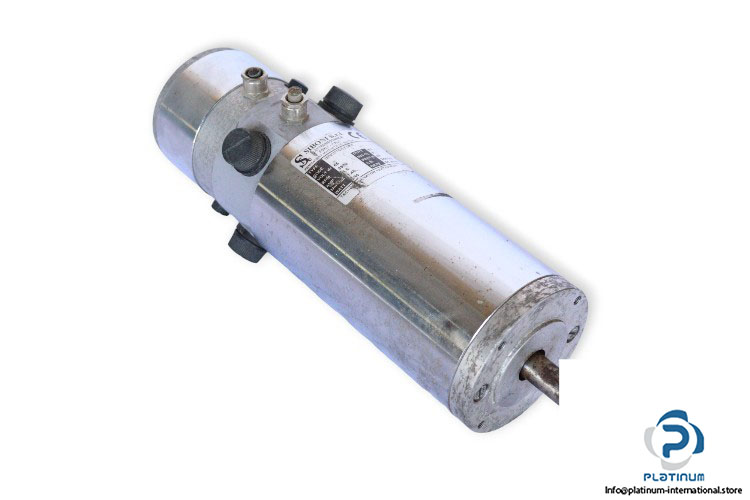

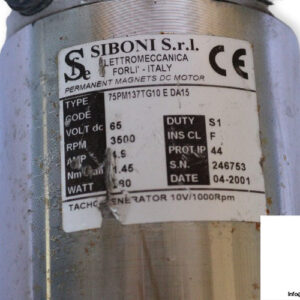

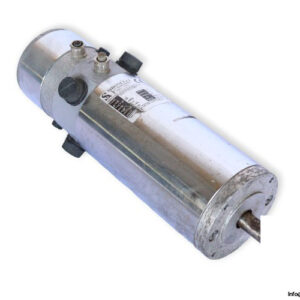

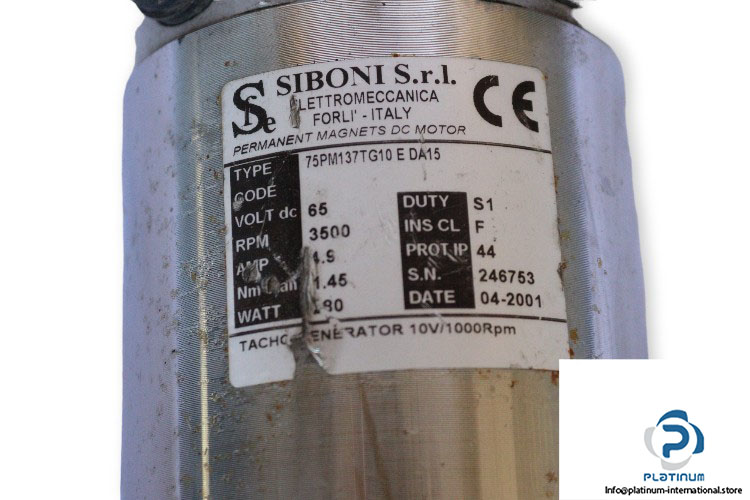

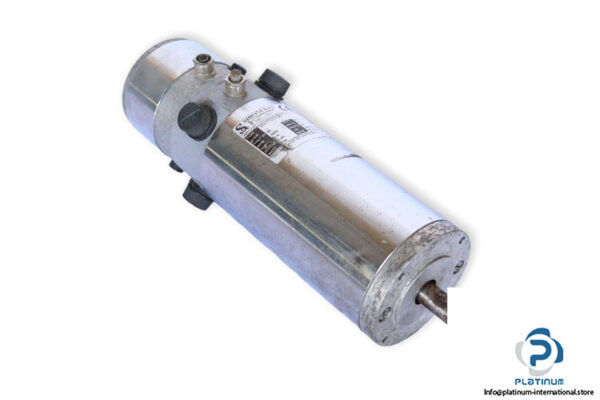

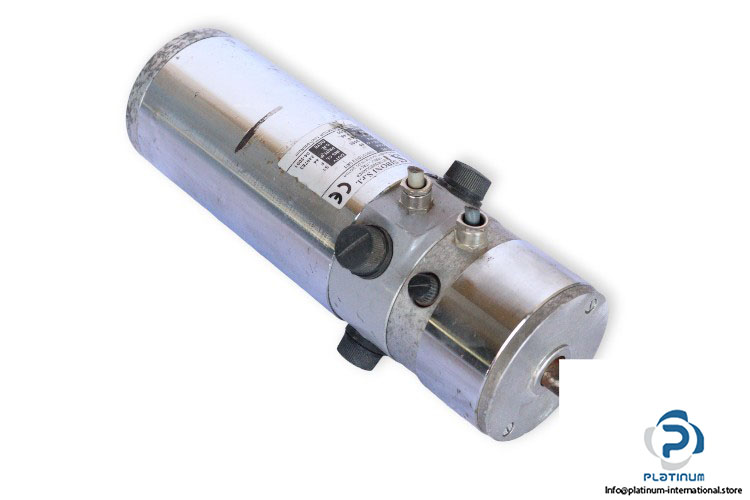

SIBONI 75PM137TG10 E DA15 PERMANENT MAGNET DC MOTOR

High-efficiency permanent magnet DC motor designed for demanding continuous-duty applications requiring stable performance, compact design, and precision speed control. Ideal for integration in industrial automation and drive systems.

Manufacturer: SIBONI
Type: Permanent Magnets DC Motor
Model: 75PM137TG10 E DA15
Serial No.: 246753

Technical Information

• Rated Voltage: 65 VDC
• Rated Current: 4.9 A
• Rated Power: 280 W
• Rated Torque: 0.9 Nm
• Continuous Stall Torque: 8.5 Nm
• Continuous Stall Current: 1.45 Nm
• Winding Code: 137
• Rated Speed: 3500 rpm
• Maximum Speed: 6000 rpm
• Start Peak Torque: 34 A
• Moment of Inertia: 7×10»´
• Rated Temperature: 0 / 40 °C
• Protection Class [IP]: 44
• Duty: S1 Continuous
• Insulation Class: F
• Encoder: Incremental
• Tacho Voltage Constant: 10 V/1000RPM
• Power Supply: 5 VDC / 8“24 VDC
