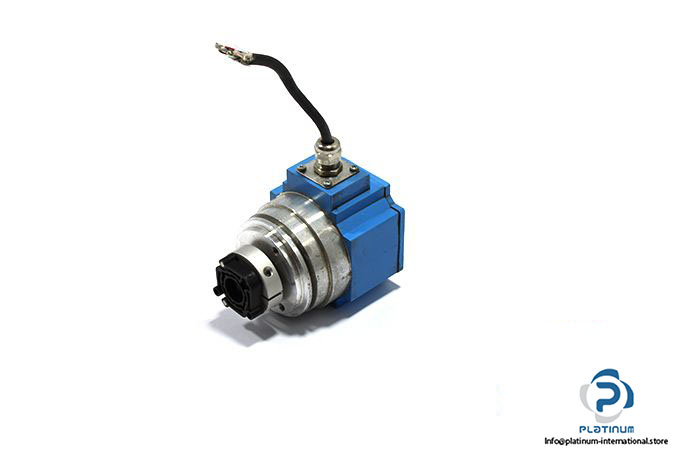

SICK SRM50-HXZ0-S21 MOTOR FEEDBACK SYSTEM
The SRM50-HXZ0-S21 by SICK is a highly precise rotary motor feedback system designed for seamless integration with SEW servo drives. Engineered to deliver exact positioning and feedback performance, this system supports up to 134 million steps and operates in challenging industrial conditions.

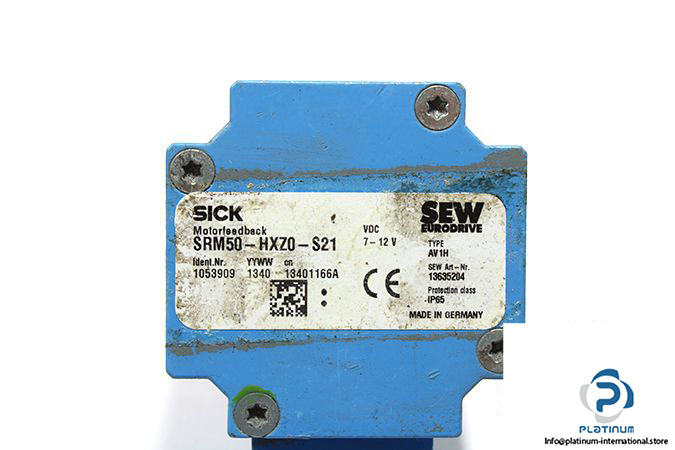

Manufacturer: SICK
Type: Motor Feedback Systems Rotary
Model: SRM50-HXZ0-S21
ID No.: 1053909 1340 13401166A
SEW Model: AV1H
SEW Article No.: 13635204
Technical Information
- Supply Voltage: 7 “ 12 V
- Revolution: 1,024
- Absolutely Detectable Revolutions: 4,096
- Total Number of Steps: 134,217,728
- Measuring Step: 0.3³
- Working Speed: 6,000 rpm
- Shaft Diameter: 6 mm
- Protection Class: IP65
- Operating Temperature: “30 °C to +85 °C
