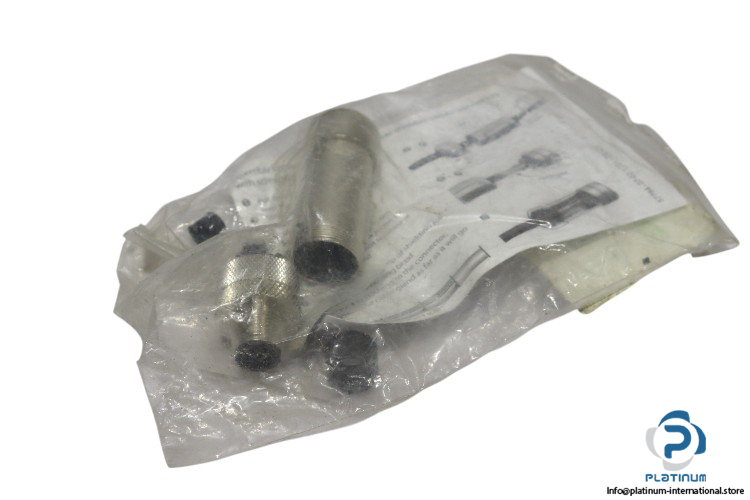

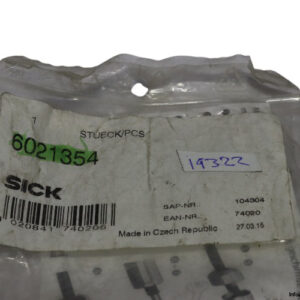

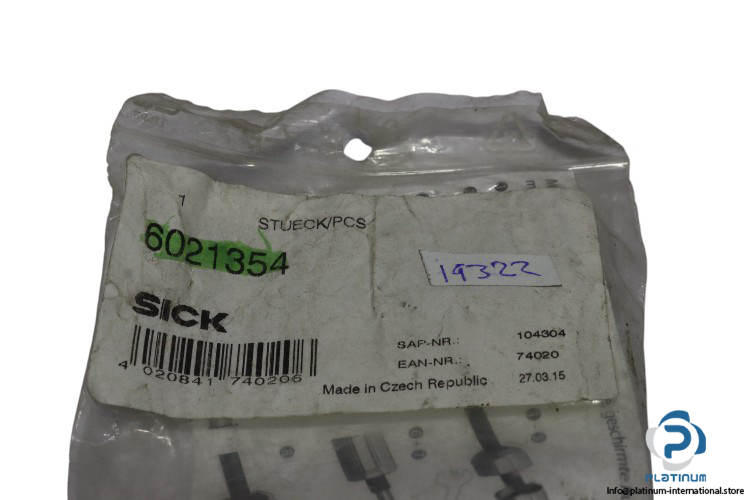

Sick 6021354 Field-Wireable Connector
The Sick 6021354 is a robust field-wireable connector designed for industrial automation and control applications. This M12, 5-pin, straight male connector features screw-type terminals and a CuZn (brass) housing for enhanced durability. With IP67 protection, it is ideal for harsh environments, offering reliable signal and power transmission at up to 30 V AC or 36 V DC and 4 A current load.
- Manufacturer: Sick
- Type: Field-Wireable Connector
- Part No.: 6021354
Technical Specifications:
- Voltage: 30 V AC / 36 V DC
- Current Loading: 4 A
- Connection Type Head A: Male Connector, M12, 5-pin, Straight, B-coded
- Connection Type: Screw-Type Terminals
- Connector Material: CuZn (Brass)
- Enclosure Rating: IP67
- Operating Temperature: -25 °C to +90 °C
